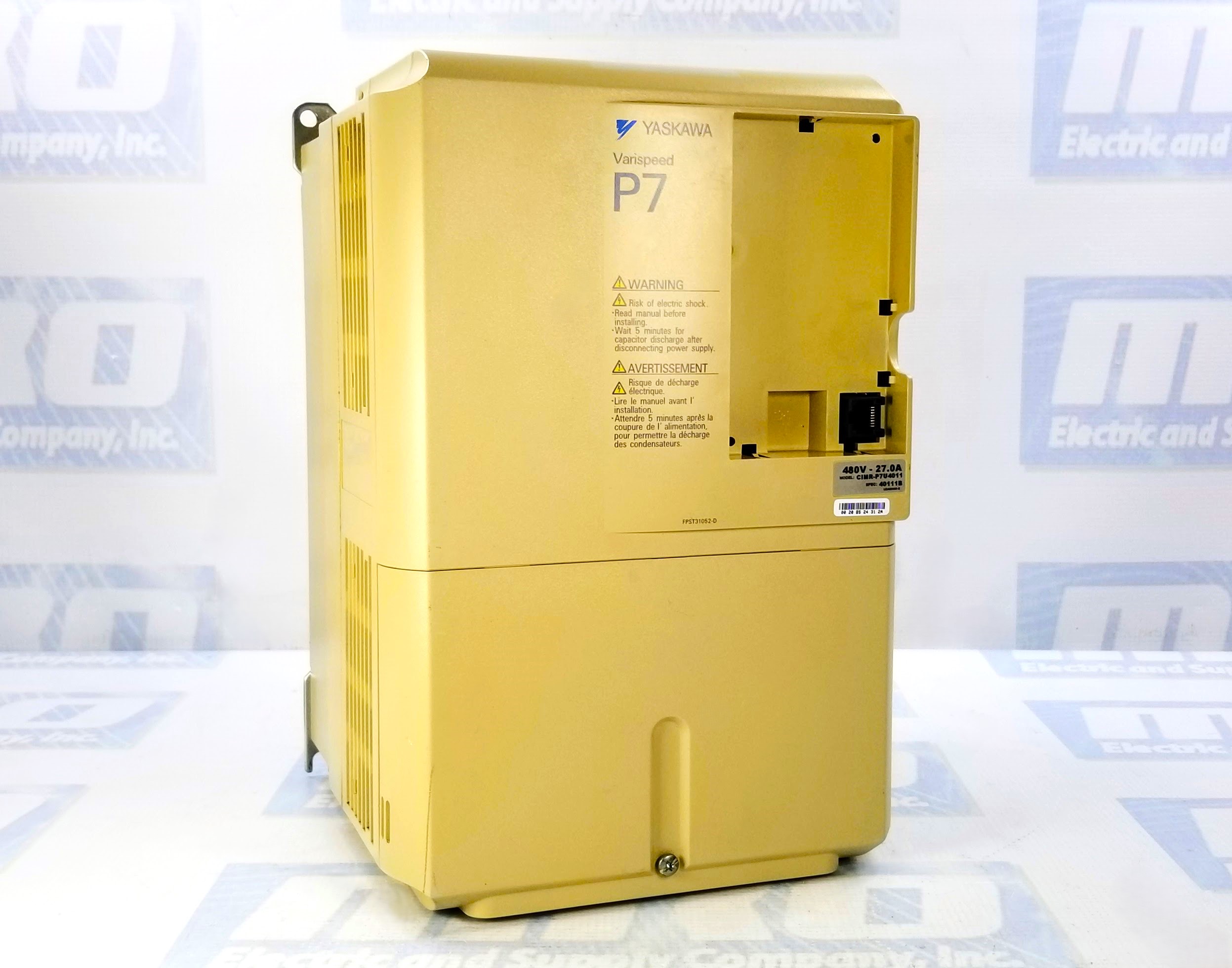

Yaskawa CIMR-P7U4011 AC Drive – Comprehensive Overview

The Yaskawa CIMR-P7U4011 is a high-performance P7 Drive designed for industrial motor control applications that require precise speed regulation and energy efficiency. As part of the Varispeed CIMR series, this AC drive is engineered for reliability, durability, and advanced motor control capabilities. Manufactured by Yaskawa, a global leader in automation and motion control technology, the CIMR-P7U4011 is ideal for variable torque applications, such as HVAC systems, fans, pumps, conveyors, and other industrial processes that demand precise and smooth motor operation.

Key Specifications and Performance

The CIMR-P7U4011 operates on a three-phase input voltage of 380-480V at 50/60 Hz, making it suitable for high-power industrial applications. It has an input current rating of 33A and delivers an output voltage of 0-480V, with an output frequency range of 0-120 Hz. This drive provides an output current of 27A and has a total power capacity of 21 kVA, allowing it to efficiently regulate medium-to-large motors.

Advanced Control and Energy Efficiency

This Varispeed P7 Drive is designed for variable torque applications. It optimizes power usage based on load demand, reducing energy consumption and lowering operational costs. The drive enhances motor efficiency and extends equipment lifespan by minimizing mechanical stress through soft-start functionality and smooth acceleration/deceleration features.

Robust Protection and Safety Features

The CIMR-P7U4011 is built with industrial-grade protection mechanisms, ensuring safe and reliable operation in demanding environments. It features an IP20 protection rating, safeguarding against solid object intrusion while allowing for efficient cooling and ventilation. Additionally, it comes with built-in overvoltage, Undervoltage, overload, and short-circuit protection, preventing damage to both the drive and the connected motor.

Durable Enclosure for Industrial Applications

The drive is housed in a Type I enclosure, providing protection against dust and light environmental factors, making it suitable for indoor installation. Its rugged construction ensures durability and long-term performance in industrial automation, HVAC, and manufacturing facilities.

Ease of Installation and Operation

The CIMR-P7U4011 is designed for easy installation and programming. Its intuitive controls allow users to quickly configure settings and monitor system performance. Its digital interface simplifies troubleshooting and diagnostics, making it ideal for both experienced technicians and first-time users.

Reliability and Warranty

Backed by Yaskawa’s reputation for quality and a 2-year MRO Electric and Supply warranty, the CIMR-P7U4011 guarantees reliable performance and long-term operational stability. This warranty covers defects in materials and workmanship, ensuring customers receive full support and peace of mind.

Frequently Asked Questions (FAQs)

What type of motors are compatible with the Yaskawa CIMR-P7U4011?

This drive is designed for three-phase AC induction motors operating within the 380-480V range.

What industries commonly use this AC drive?

Industries such as HVAC, manufacturing, water treatment, material handling, and automation use this drive for energy-efficient motor control.

Can this drive be used for constant and variable torque applications?

The CIMR-P7U4011 is primarily designed for variable torque applications but can also handle constant torque loads under specific configurations.

What is the output frequency range of this drive?

The drive supports an output frequency range of 0-120 Hz, allowing precise speed control and flexibility.

How energy-efficient is the CIMR-P7U4011?

This AC drive is designed to optimize motor performance by adjusting power usage based on demand, resulting in significant energy savings and lower operational costs.

What protection features does the drive include?

The CIMR-P7U4011 has over-, under-, overload, and short-circuit protection, ensuring safe operation and preventing damage.

What does the IP20 protection rating mean?

An IP20 rating means the drive is protected against solid objects larger than 12mm, but it is not protected against water, so it should be installed in a dry, controlled environment.

Is the drive easy to install and configure?

The CIMR-P7U4011 features a user-friendly digital interface, making installation, programming, and monitoring straightforward.

Does this drive support braking functions?

The drive can control deceleration through dynamic braking options, which can be configured depending on the application.

Where can I purchase this AC drive and replacement parts?

The CIMR-P7U4011, compatible accessories, and replacement parts are available through MRO Electric and Supply.
