Yaskawa CIMR-JU4A0004BAA

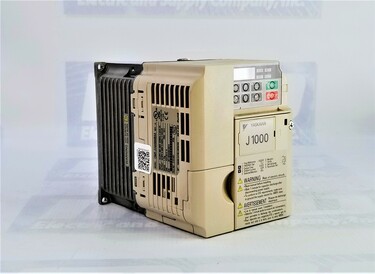

Yaskawa CIMR-JU4A0004BAA J1000 AC Drive

The Yaskawa CIMR-JU4A0004BAA is a highly reliable AC drive designed for industrial applications where precision and efficiency are paramount. As part of the J1000 series, this drive is engineered to offer robust performance in controlling motor speed and torque, making it an ideal solution for various automation tasks.

Overview of the J1000 Series

The J1000 series from Yaskawa is known for its compact size, ease of use, and reliable performance. This series is designed to deliver cost-effective solutions without compromising on quality, making it a popular choice for small—and large-scale operations. The CIMR-JU4A0004BAA model, in particular, offers a balance of features that cater to both heavy-duty and normal-duty applications, making it versatile and adaptable to various industrial needs.

Technical Specifications

The Yaskawa CIMR-JU4A0004BAA AC drive is a three-phase unit operating at a voltage range of 380-480 VAC, which is standard in industrial settings. It is capable of handling both heavy-duty and normal-duty operations, with different power ratings for each:

• Heavy Duty: Can drive motors with a power rating of 1 to 2 HP and a current capacity of 3.4 amps.
• Normal Duty: Designed for motors up to 2 HP with a slightly higher current capacity of 4.1 amps.

The drive operates at a frequency of up to 400 Hz, providing precise control over motor speed, which is essential for applications requiring high-speed operations or variable speed adjustments.

Protection and Durability

One of the critical features of the Yaskawa CIMR-JU4A0004BAA is its IP20 protection rating. This rating indicates that the drive is protected against solid objects larger than 12.5 mm, ensuring that it is safe to use in environments with dust or other solid particles. While IP20 does not provide water protection, the drive is well-suited for indoor applications with minimal exposure to liquids. The robust design of the drive ensures long-term durability, even in demanding industrial environments.

Application Versatility

The CIMR-JU4A0004BAA is engineered to be versatile, making it suitable for various applications. Whether you are controlling pumps, fans, conveyors, or other machinery, this drive provides the necessary power and control to ensure smooth and efficient operation. The ability to handle heavy and normal duty makes it flexible enough to be used in different operational settings, from light manufacturing processes to more intensive industrial applications.

Ease of Integration

Yaskawa designed the J1000 series, including the CIMR-JU4A0004BAA, with user-friendliness in mind. The drive’s compact size and straightforward installation process make it easy to integrate into existing systems. Additionally, its user-friendly interface allows for simple configuration and monitoring, reducing the learning curve for operators and maintenance personnel.

Warranty and Additional Benefits

When purchased from MRO Electric and Supply, the Yaskawa CIMR-JU4A0004BAA comes with a 2-year warranty, assuring its quality and reliability. Electric and Supply offers free shipping on this drive, enhancing its value and accessibility.

FAQ for Yaskawa CIMR-JU4A0004BAA J1000 AC Drive

1. What is the Yaskawa CIMR-JU4A0004BAA AC drive used for?

The Yaskawa CIMR-JU4A0004BAA AC drive is designed to control the speed and torque of three-phase motors in various industrial applications. It is commonly used in machinery such as pumps, fans, conveyors, and other equipment requiring precise motor control.

2. What are the voltage and frequency ratings for this AC drive?

The CIMR-JU4A0004BAA operates at a voltage range of 380-480 VAC and supports a frequency of up to 400 Hz. These ratings make it suitable for high-speed operations and provide flexibility in various industrial settings.

3. Can the Yaskawa CIMR-JU4A0004BAA handle both heavy-duty and normal-duty applications?

Yes, this AC drive is designed for both heavy-duty and normal-duty operations. It supports:

• Heavy Duty: 1 to 2 HP with a current of 3.4 amps.
• Normal Duty: 2 HP with a current of 4.1 amps.

This versatility allows it to be used in a range of industrial applications.

4. What type of protection does this drive offer?

The Yaskawa CIMR-JU4A0004BAA has an IP20 protection rating, protecting it against solid objects larger than 12.5 mm. While it does not offer protection against liquids, it is suitable for indoor environments where exposure to dust and solid particles is a concern.

5. How easy is installing and integrating this drive into an existing system?

The CIMR-JU4A0004BAA is designed for ease of installation and integration. Its compact size and user-friendly interface make it simple to install and configure, allowing for quick setup and minimal disruption to existing systems.

6. What kind of warranty is provided with this AC drive when purchased from MRO Electric and Supply?

When purchased from MRO Electric and Supply, the CIMR-JU4A0004BAA comes with a 2-year warranty.

7. Does MRO Electric and Supply offer free shipping for this drive?

MRO Electric and Supply provides free shipping for the Yaskawa CIMR-JU4A0004BAA, making it a cost-effective purchase for customers looking to enhance their industrial systems.

8. What are typical applications for this AC drive?

Typical applications for the CIMR-JU4A0004BAA include controlling motors in pumps, fans, conveyors, and other industrial machinery. Its ability to handle heavy-duty and normal-duty operations makes it suitable for various industries, from manufacturing to material handling.

9. Can this drive be used in high-speed applications?

Yes, with a frequency rating of up to 400 Hz, the Yaskawa CIMR-JU4A0004BAA is well-suited for high-speed applications. It provides precise control over motor speed and ensures optimal performance in demanding industrial environments.

10. How does the IP20 rating affect where this drive can be installed?

The IP20 rating means that the drive is protected against solid objects larger than 12.5 mm, such as fingers or tools, but it is not protected against liquids. Therefore, it is best installed in dry, indoor environments where there is minimal risk of exposure to water or other liquids.

Yaskawa products are manufactured in Japan and are designed for Advanced manufacturing, milling, and factory automation usage. They come with a 2-year warranty from MRO Electric. We also carry AC Drives from other manufacturers such as Schneider Electric and KUKA.
