Yaskawa CIMR-JU4A0002BAA

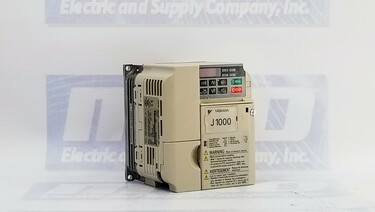

Yaskawa CIMRJU4A0002BAA J1000 AC Drive

The CIMRJU4A0002BAA is a high-performance AC Drive manufactured by Yaskawa, a global leader in motion control and industrial automation solutions. As part of the J1000 Drive series, this compact and versatile drive offers exceptional power and control capabilities, making it an ideal choice for a wide range of industrial applications. With a power rating of 3/4HP, 480V input, and various innovative features, the CIMRJU4A0002BAA provides efficient and reliable motor control in a compact IP20-rated enclosure.

Powerful and Precise Motor Control:

The CIMRJU4A0002BAA is designed to deliver precise motor control for a variety of industrial processes. With a power rating of 3/4HP (horsepower) and 480V input, this drive can effectively control motors used in different applications, including fans, pumps, conveyors, and more. The drive's advanced control algorithms ensure accurate speed regulation and torque management, allowing for smooth and efficient motor operation. Whether it's for constant torque (CT) or variable torque (VT) loads, the CIMRJU4A0002BAA can adapt seamlessly, making it a versatile solution for diverse industrial environments.

Compact and Space-Saving Design:

The J1000 Drive series is known for its compact and space-saving design, and the CIMRJU4A0002BAA is no exception. With dimensions of just 5"H x 4.25" W x 3.90"D, this drive can be easily integrated into space-constrained control panels and enclosures. Its small footprint allows for efficient use of limited space in industrial settings, making it a practical choice for installations where space is a premium. Despite its compact size, the CIMRJU4A0002BAA doesn't compromise performance, delivering powerful motor control capabilities without taking up excessive space.

Efficiency and Energy Savings:

Yaskawa prioritizes energy efficiency in its products, and the CIMRJU4A0002BAA is no different. With an efficiency-driven design, this drive ensures that energy consumption is optimized during motor operation. The ability to match motor speed to the varying load requirements minimizes energy wastage, resulting in substantial energy savings over time. By efficiently managing power usage, the CIMRJU4A0002BAA not only reduces operating costs but also contributes to environmental sustainability, making it an environmentally friendly choice for businesses seeking to lower their carbon footprint.

Robust Protection and Safety Features:

Industrial environments can be demanding and harsh, requiring equipment that can withstand challenging conditions. The CIMRJU4A0002BAA is built to be robust and reliable, ensuring uninterrupted operation even in tough working conditions. The drive incorporates various protection features, such as overcurrent and overvoltage protection, which safeguard both the connected motor and the drive itself from potential damage. Additionally, the IP20 rating ensures a degree of protection against dust and solid objects, enhancing the drive's reliability and longevity.

User-Friendly Interface:

The CIMRJU4A0002BAA comes with a user-friendly interface that simplifies commissioning, operation, and monitoring tasks. The drive's intuitive control panel allows for easy configuration of drive parameters and quick adjustments to motor settings. The clear LED display provides real-time status information, enabling operators to monitor drive performance and diagnose issues promptly. This user-friendly interface reduces the learning curve for operators, ensuring efficient setup and maintenance processes, and ultimately leading to increased productivity.

Versatile Connectivity:

Connectivity is a crucial aspect of modern industrial automation, and the CIMRJU4A0002BAA caters to this requirement with various communication options. The drive supports multiple fieldbus protocols, such as Modbus, Profibus, and DeviceNet, enabling seamless integration into diverse automation architectures. This connectivity facilitates centralized control and monitoring, enabling efficient data exchange and coordination between different components of the industrial system.

FAQs for Yaskawa CIMR-JU4A0002BAA AC Drive

1. What is the Yaskawa CIMR-JU4A0002BAA used for?

The CIMR-JU4A0002BAA is an AC drive designed to control the speed and torque of three-phase motors. It is commonly used in industrial applications where precise motor control is essential for optimizing performance, efficiency, and energy savings.

2. What is the input voltage and phase configuration of the CIMR-JU4A0002BAA?

This AC drive operates with an input voltage range of 380 to 480 and requires a three-phase power supply. It is compatible with both 50 Hz and 60 Hz power supply frequencies.

3. What type of motor can the CIMR-JU4A0002BAA control?

The CIMR-JU4A0002BAA is designed to control three-phase motors, making it suitable for various industrial applications that require precise speed and torque adjustments.

4. What is the protection rating of the CIMR-JU4A0002BAA?

The CIMR-JU4A0002BAA has an IP20 protection rating, protecting against solid objects greater than 12.5 mm in size. However, it does not offer protection against liquids, so it should be installed in a controlled environment where exposure to moisture is minimized.

5. What are the output voltage and frequency ranges of the CIMR-JU4A0002BAA?

The CIMR-JU4A0002BAA's output voltage ranges from 0 to 480 volts, depending on the input voltage. The output frequency range is 0 to 400 Hz, allowing for a wide range of motor speed control.

6. What are the rated current values for the CIMR-JU4A0002BAA?

The CIMR-JU4A0002BAA has a rated input current of 2.1 A at 380 V and 1.8 A at 480 V. These current values ensure that the drive can handle various load conditions while maintaining stable performance.

7. What does the CIMR-JU4A0002BAA support the power supply frequency?

The CIMR-JU4A0002BAA supports a 50/60 Hz power supply frequency, making it compatible with different power systems worldwide. This versatility allows the drive to be used in a wide range of industrial settings.

8. How does the IP20 protection rating affect the installation of the CIMR-JU4A0002BAA?

Due to its IP20 protection rating, the CIMR-JU4A0002BAA should be installed in environments free from dust and moisture. This typically means installation inside an electrical cabinet or enclosure that provides additional protection from environmental factors.

9. What warranty is offered with the CIMR-JU4A0002BAA?

When purchased from authorized suppliers, the CIMR-JU4A0002BAA comes with a 2-year warranty.

10. Is the CIMR-JU4A0002BAA suitable for all types of industrial applications?

The CIMR-JU4A0002BAA is suitable for various industrial applications, especially those requiring precise control of three-phase motors. However, due to its IP20 rating, environmental conditions, such as dust or moisture, must be considered. For applications in harsher environments, additional protective measures or a higher-rated drive may be necessary.

Yaskawa products are manufactured in Japan and are designed for Advanced manufacturing, milling, and factory automation usage. They come with a 2-year warranty from MRO Electric. We also carry AC Drives from other manufacturers such as Schneider Electric and KUKA.
