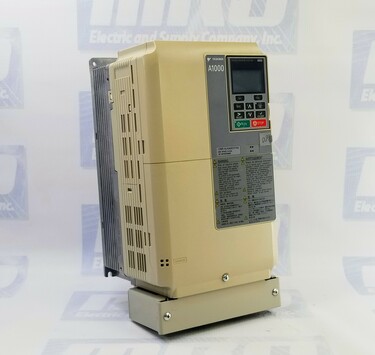

Yaskawa CIMR-AU4A0031FAA

CIMRAU4A0031FAA Drive

The CIMRAU4A0031FAA is a powerful AC drive manufactured by Yaskawa, a prominent global provider of motion control and robotics solutions. As part of the A1000 Drive series, this product exemplifies Yaskawa's commitment to delivering high-performance and reliable motor control solutions for various industrial applications.

Description and Specifications:

The CIMRAU4A0031FAA is a robust AC drive designed to handle substantial motor power requirements. It boasts a power rating of 15 horsepower (HP) and operates on a 480-volt (V) three-phase power supply, drawing a current of 24 amperes (A) when used in constant torque (CT) mode. When switched to variable torque (VT) mode, the drive can support a power output of up to 20 HP, drawing a current of 31A. The unit's dimensions are approximately 13.39 inches in height, 7.09 inches in width, and 6.57 inches in depth.

Product Type - A1000 Drive:

The CIMRAU4A0031FAA belongs to the A1000 Drive series, a renowned product line known for its advanced features, versatility, and superior performance. The A1000 Drive series is widely used in various industrial applications, including pumps, fans, conveyors, mixers, and more. As part of this series, the CIMRAU4A0031FAA exemplifies Yaskawa's dedication to providing cutting-edge motor control solutions that meet the evolving needs of industries worldwide.

Applications and Use Cases:

The Yaskawa CIMRAU4A0031FAA A1000 Drive is suitable for a wide range of industrial applications that demand high-power motor control and reliable performance. Some common use cases for this AC drive include:

1. Industrial Pumps: In industries such as water treatment, oil and gas, and manufacturing, the A1000 Drive provides precise and efficient control of pumps, optimizing flow rates and reducing energy consumption.
2. HVAC Systems: The CIMRAU4A0031FAA drive is also used in heating, ventilation, and air conditioning (HVAC) systems to regulate the speed of fans and motors, ensuring optimal climate control and energy efficiency.
3. Conveyor Systems: In manufacturing facilities and warehouses, the AC drive is utilized to control conveyor belts, optimizing material handling processes and ensuring smooth material flow.
4. Mixers and Agitators: In chemical and food processing industries, the A1000 Drive enables precise control of mixers and agitators, facilitating uniform blending and minimizing waste.

Features and Advantages:

The Yaskawa CIMRAU4A0031FAA A1000 Drive comes equipped with a range of features that set it apart and contribute to its overall performance and reliability. Some notable features include:

1. Advanced Control Algorithms: The A1000 Drive employs advanced control algorithms, including sensorless vector control and field-oriented control (FOC), enabling precise and efficient motor control, even at low speeds.
2. Energy Savings: The drive's energy-saving features, such as regenerative braking and dynamic braking control, help to recover and conserve energy during motor deceleration, contributing to overall energy efficiency.
3. Built-in PLC Functionality: The AC drive includes a built-in PLC (Programmable Logic Controller) feature, allowing users to implement customized control logic and adapt the drive to specific application requirements.
4. Harmonic Mitigation: The A1000 Drive incorporates harmonic filters to reduce harmonic distortion and ensure compliance with power quality standards, preventing disturbances in the electrical system.
5. User-Friendly Interface: The drive's intuitive interface and parameterization tools make it easy to set up, configure, and monitor the drive's performance, simplifying commissioning and diagnostics processes.

FAQs for Yaskawa CIMR-AU4A0031FAA A1000 AC Drive

What is the power rating of the Yaskawa CIMR-AU4A0031FAA?

The Yaskawa CIMR-AU4A0031FAA has a power rating of 20 HP, making it suitable for mid-level industrial applications that require consistent and reliable motor control.

What is the input voltage for the Yaskawa CIMR-AU4A0031FAA?

This AC drive operates with an input voltage of 480 V, which is typical for many industrial power systems and ensures the drive can handle demanding applications.

What is the current rating for the CIMR-AU4A0031FAA?

The drive's current rating is 31 A for heavy-duty loads and 24 A for normal-duty loads. This flexibility in current ratings allows the drive to handle different types of motor loads efficiently.

What type of drive is the CIMR-AU4A0031FAA?

This model is part of Yaskawa's A1000 series and is categorized as a standard AC drive. It offers excellent motor control performance, including energy efficiency and adaptability for various industrial environments.

What is the application range for the A1000 series drive?

The Yaskawa A1000 series is designed for both constant torque (heavy-duty) and variable torque (normal-duty) applications, making it suitable for various sectors, including manufacturing, HVAC, and conveyor systems.

Does the CIMR-AU4A0031FAA offer any protective features?

Yes, the Yaskawa A1000 series has several protective features, including overload protection, short-circuit protection, and temperature monitoring. These safeguards extend the drive's operational life and reduce the risk of damage to connected motors.

What are the main benefits of using the CIMR-AU4A0031FAA?

The CIMR-AU4A0031FAA drive offers improved motor efficiency, reduced energy consumption, and seamless integration with existing industrial systems. Its compact design and flexible functionality allow for easy installation and maintenance.

What is the warranty for the Yaskawa CIMR-AU4A0031FAA?

This AC drive comes with a 2-year warranty from MRO Electric and Supply; free shipping is also provided.

What type of motor control does the A1000 drive provide?

The Yaskawa A1000 series offers advanced motor control capabilities, including vector control and open-loop control. These enable precise motor speed and torque control without the need for additional feedback devices.

Is the Yaskawa CIMR-AU4A0031FAA suitable for industrial environments?

Yes, the CIMR-AU4A0031FAA is designed to handle rugged industrial environments. It is engineered for heavy-duty and normal-duty operations, making it suitable for various applications, including pumps, fans, compressors, and conveyors.

Yaskawa products are manufactured in Japan and are designed for Advanced manufacturing, milling, and factory automation usage. They come with a 2-year warranty from MRO Electric. We also carry AC Drives from other manufacturers such as Schneider Electric and KUKA.
