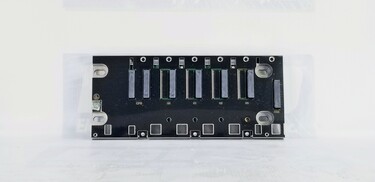

M340 BACKPLANE - 4 SLOTS
| Part Number | BMXXBP0400 |
| Manufacturer | Schneider Electric |
| Type | Backplane Models |
| Model # | BMX-XBP-0400 |
| Warranty | 2 Year |
| Range | Modicon X80 |
| Category | Rack |
| Connection | 1 connector (XBE) expansion module |
| Protection | IP20 |
| Slots | 4 bus X + Ethernet |
| Compatibility | I/O module BMX processor Specific application module BMXCPS power supply BME processor |
| Power consumption | 162 mW 3.3 V DC 2.8 W 24 V DC |
| Directives | 2014/35/EU - low voltage directive 2014/30/EU - electromagnetic compatibility |
| MTBF reliability | 2000000 H |
| Ambient temp | 32…140 °F |
| Fixing mode | By 4 screws 0.17…0.25 in (4.32…6.35 mm) panel By 4 M6 screws plate By clips 35 mm symmetrical DIN rail |
| Current consumption | 49 mA 3.3 V DC 118 mA 24 V DC |
| Relative Humidity | 5…95 % without condensation |
MRO Electric repairs CNCs, PLCs, Servo/Spindle Drives, Motors, Amplifiers, VFDs, HMIs, and more, most of which can be repaired in only 3-5 days.
MRO can restore your failed BMXXBP0400 to remanufactured condition and save you up to 75% compared to buying new. We offer standard repair pricing to ensure you the best value for your repair.
Our certified technicians use rigorous testing procedures to ensure your parts are restored to fully functioning condition. Our team proudly stands behind all repairs by providing a minimum 2-year warranty.
Our technicians have vast experience with most manufacturers and models. In addition to this BMXXBP0400 we also repair drives, motors, PLCs and more, so if you don’t see the model you need, please contact us.
If you are interested in getting credit for your faulty BMXXBP0400, just let us know, and we can issue you an RMA to send it in as an exchange. Our exchange program provides you with savings and keeps us stocked for the next time you need anything.
Want it shipped today?
Ask about exchanging your faulty BMXXBP0400 for credit when ordering from MRO Electric
The Schneider Electric BMXXBP0400 is a highly reliable and efficient backplane model from the Modicon X80 range. It is designed to support industrial automation setups by providing robust connectivity and power distribution for multiple modules. It is a critical infrastructure element in industrial control systems, offering slots for four modules supporting X-bus and Ethernet connectivity. This backplane is engineered for versatility and resilience, making it suitable for demanding industrial environments where stability, efficiency, and durability are essential.
The BMXXBP0400 backplane is optimized for efficient power distribution to the connected modules. Its power consumption is 162 mW at 3.3 V DC and 2.8 W at 24 V DC. The unit's current consumption is 49 mA at 3.3 V DC and 118 mA at 24 V DC, making it an energy-efficient choice for powering various control modules within an automation setup. This practical power management enables seamless module performance, reduces the need for excessive power resources, and enhances the longevity of the backplane and connected components.
Built for both stability and flexibility, the BMXXBP0400 backplane offers multiple installation options, including panel mounting with four screws (0.17–0.25 inches or 4.32–6.35 mm) and plate mounting with M6 screws, as well as mounting on a 35 mm symmetrical DIN rail via clips. This flexibility in mounting options makes the BMXXBP0400 suitable for diverse industrial setups, allowing users to install it most conveniently and securely based on their specific requirements.
This backplane is designed for a wide temperature range of 32°F to 140°F, providing reliable performance even in challenging industrial environments. It has an IP20 protection rating, which offers essential protection against dust and accidental contact with components. Additionally, the backplane's MTBF (Mean Time Between Failures) reliability is rated at an impressive 2 million hours, underscoring its robustness and suitability for long-term use in critical applications. The relative humidity tolerance ranges from 5% to 95% without condensation, making it adaptable to various environmental conditions.
The BMXXBP0400 is compatible with a wide range of Modicon X80 modules, including BMX I/O modules, BMX and BME processors, BMXCPS power supplies, and specific application modules. This compatibility allows it to be part of highly flexible control architectures, supporting configurations that range from simple setups to complex automation systems with diverse I/O and communication needs. The backplane's four slots enable users to connect multiple modules for high-performance data and signal handling in manufacturing, process control, and infrastructure management applications.
Schneider Electric designed the BMXXBP0400 to meet critical safety and electromagnetic compatibility (EMC) standards. It complies with the Low Voltage Directive 2014/35/EU and the Electromagnetic Compatibility Directive 2014/30/EU, ensuring safe operation within regulated environments. These certifications make it a reliable choice for industries that must adhere to stringent safety standards, providing confidence that it meets the requirements for secure and stable operation in industrial settings.
MRO Electric and Supply provides this backplane with a two-year warranty and free shipping. This warranty enhances customer satisfaction by ensuring support and protection for any issues.
Q: What is the purpose of the BMXXBP0400 backplane?
A: The BMXXBP0400 is a foundational component in automation systems. It provides a reliable platform to connect Modicon X80 modules such as I/O modules, processors, and power supplies. It distributes power and enables communication between these components.
Q: How many modules can be connected to this backplane?
A: The BMXXBP0400 backplane supports up to four modules, combining X-bus and Ethernet modules in a single rack setup.
Q: What power requirements does the backplane have?
A: The backplane requires a 3.3 V DC power supply with a current consumption of 49 mA and a 24 V DC power supply with a current consumption of 118 mA. Its power consumption is 162 mW at 3.3 V DC and 2.8 W at 24 V DC.
Q: What are the mounting options for the BMXXBP0400?
A: The BMXXBP0400 backplane can be mounted using screws (0.17–0.25 inches or M6) on a panel or plate or a 35 mm symmetrical DIN rail with clips.
Q: Does the backplane come with any protective features?
A: Yes, the BMXXBP0400 has an IP20 protection rating. This rating offers basic protection against dust and accidental contact, making it suitable for controlled industrial environments.
Schneider Electric products are manufactured in France and are designed for Material handling, packaging, and textile machines usage. They come with a 2-year warranty from MRO Electric. We also carry Backplane Models from other manufacturers such as Modicon and ABB.
Check out the rest of our Schneider Electric product line. Whether it's using our online instant quote feature, giving us a call at (800) 691-8511, or emailing us at sales@mroelectric.com, we strive for customer satisfaction first. This means lower prices and better service for you. For more products like BMXXBP0400, take a look at more from our Backplane Models line. If your current unit has gone bad, take advantage of our Core Exchange program for the most inexpensive route. You can learn more about this program on our FAQ page here. We offer a repair service on all of our BMXXBP0400 products that keep your downtime to a minimum. To stay up to date on manufacturer news, as well as access any of our datasheets, manuals, or other documentation, we suggest you take a look at our blog.
