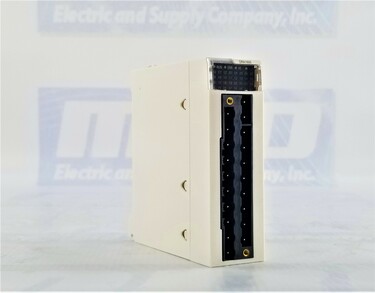

M340 DIGITAL 16Q ISOLATED RELAYS I/O MODULE
| Part Number | BMXDRA1605 |
| Manufacturer | Schneider Electric |
| Type | I/O Modules |
| Model # | BMX-DRA-1605 |
| Warranty | 2 Year |
| Range | Modicon X80 |
| Component | Discrete output |
| Discrete output | 16 conforming to EN/IEC 61131-2 |
| Output type | Relay |
| Out Voltage | 24 V 19...30 V DC 240 V 19…264 V AC |
| Insulation resistance | > 10 MOhm 500 V DC |
| Max power dissipation | 3 W |
| MTBF reliability | 1357810 H |
| Minimum switching current | 1 mA 5 V DC |
| Output overvoltage protection | Use discharge diode on each output DC Use RC circuit on each output AC Use ZNO surge limiter on each output AC |
| Status LED | 1 LED (green)RUN: 1 LED per channel (green)channel diagnostic: 1 LED (red)ERR: 1 LED (red)I/O: |
| Protection | IP20 |
| Certification | CE Merchant Navy EAC RCM UL CSA |
| Standards | EN/IEC 61010-2-201 UL 61010-2-201 CSA C22.2 No 61010-2-201 EN/IEC 61131-2 |
| Vibration resistance | 3 gn |
| Relative humidity | 5…95 % at 55 °C without condensation |
| Shock resistance | 30 gn |
| Operating altitude | 0...2000 m 2000...5000 m with derating factor |
MRO Electric repairs CNCs, PLCs, Servo/Spindle Drives, Motors, Amplifiers, VFDs, HMIs, and more, most of which can be repaired in only 3-5 days.
MRO can restore your failed BMXDRA1605 to remanufactured condition and save you up to 75% compared to buying new. We offer standard repair pricing to ensure you the best value for your repair.
Our certified technicians use rigorous testing procedures to ensure your parts are restored to fully functioning condition. Our team proudly stands behind all repairs by providing a minimum 2-year warranty.
Our technicians have vast experience with most manufacturers and models. In addition to this BMXDRA1605 we also repair drives, motors, PLCs and more, so if you don’t see the model you need, please contact us.
If you are interested in getting credit for your faulty BMXDRA1605, just let us know, and we can issue you an RMA to send it in as an exchange. Our exchange program provides you with savings and keeps us stocked for the next time you need anything.
Want it shipped tomorrow?
Ask about exchanging your faulty BMXDRA1605 for credit when ordering from MRO Electric
The BMXDRA1605 is a discrete output module from the Modicon X80 range, designed to provide reliable control over various output devices in industrial automation systems. With 16 discrete outputs in relay configuration, this module can handle a wide range of applications that demand precise and efficient output control.
The BMXDRA1605 offers 16 discrete outputs, conforming to EN/IEC 61131-2 standards. These outputs are relay-based, allowing them to handle a broad range of loads and voltages. The module supports two distinct voltage options: 24 V DC with a range of 19 to 30 V DC and 24 to 240 V AC with a range of 19 to 264 V AC. This flexibility in voltage options makes the module suitable for various output devices and applications.
The module is rated with a conventional free air thermal current (Ith) of 2 A, enabling it to handle significant electrical loads without overheating. The insulation resistance of over 10 MOhm at 500 V DC ensures reliable isolation between channels and the external circuit, minimizing the risk of electrical interference.
The BMXDRA1605 is designed to offer robust protection for both the module and connected devices. It features output overload protection, requiring the use of a fast-blow fuse per channel or group of channels. For overvoltage protection in DC outputs, discharge diodes are utilized, while RC circuits are employed for AC outputs. Surge limiters using ZNO technology are employed for additional protection in AC outputs.
With an activation response time of less than 8 ms and a deactivation response time of less than 10 ms, the BMXDRA1605 ensures quick and precise output control. Despite its high performance, the module maintains low current consumption of just 79 mA at 3.3 V DC, contributing to energy efficiency in the overall system.
The BMXDRA1605 boasts an impressive Mean Time Between Failures (MTBF) reliability of 1,357,810 hours, reflecting its robust design and durability. This high reliability ensures that the module can perform consistently and reliably in demanding industrial environments, reducing downtime and maintenance costs.
The module is tested for electrical durability under various conditions, including AC and DC loads. With a high number of cycles, it can withstand the demands of different applications, making it a versatile and reliable choice for industrial automation.
The BMXDRA1605 adheres to various international standards, including EN/IEC 61010-2-201, UL 61010-2-201, CSA C22.2 No 61010-2-201, and EN/IEC 61131-2. These certifications validate its safety and compliance with industry regulations.
As a Green Premium product, the BMXDRA1605 adheres to sustainability principles and environmental regulations. It is mercury-free and complies with EU RoHS directives. The module's Circular Economy Profile provides valuable information for end-of-life disposal, promoting responsible waste management and recycling.
Q1: What is the primary function of the Schneider Electric BMXDRA1605 I/O Module?
A1: The Schneider Electric BMXDRA1605 is a discrete output module designed for use within the Modicon X80 range. It provides 16 relay outputs conforming to EN/IEC 61131-2 standards, enabling reliable control of various devices and machinery within an automation system.
Q2: What types of voltage can the BMXDRA1605 handle?
A2: The BMXDRA1605 I/O Module supports a wide range of voltages. It can handle 24 V DC within a range of 19 to 30 V, and 240 V AC within a range of 19 to 264 V. This flexibility allows it to be used in diverse industrial environments where different power sources may be required.
Q3: What protective features are included in this module?
A3: The BMXDRA1605 includes several protective features to ensure safe and reliable operation. For DC outputs, it is recommended to use discharge diodes on each output. For AC outputs, RC circuits and ZNO surge limiters should be used. These protections guard against overvoltage conditions and enhance the longevity of the module.
Q4: How reliable is the BMXDRA1605 module in terms of durability?
A4: The BMXDRA1605 boasts an impressive Mean Time Between Failures (MTBF) of 1,357,810 hours, indicating high reliability and durability in continuous operation. This makes it an excellent choice for mission-critical applications where downtime must be minimized.
Q5: What are the environmental operating conditions for this module?
A5: The BMXDRA1605 is designed to operate in a wide range of environmental conditions. It can withstand relative humidity levels of 5 to 95% at temperatures up to 55°C without condensation. Additionally, it offers vibration resistance of up to 3 gn and shock resistance up to 30 gn, making it suitable for use in challenging industrial settings.
Q6: What certifications does the BMXDRA1605 carry?
A6: The BMXDRA1605 I/O Module is certified under multiple international standards, including CE, Merchant Navy, EAC, RCM, UL, and CSA. It complies with standards such as EN/IEC 61010-2-201, UL 61010-2-201, and CSA C22.2 No 61010-2-201, ensuring it meets rigorous safety and performance criteria.
Q7: How is the status of the module indicated?
A7: The BMXDRA1605 module includes several LEDs for status indication. There is one green LED to indicate RUN status, one green LED per channel for channel diagnostics, and one red LED for error (ERR) indication. This allows for easy monitoring and troubleshooting of the module’s operation.
Q8: What are the operating altitude limits for the BMXDRA1605?
A8: The module is capable of operating at altitudes up to 2000 meters without any derating. For altitudes between 2000 and 5000 meters, a derating factor must be applied to ensure proper operation. This makes the module versatile for use in various geographical locations.
Q9: Is there a warranty for the BMXDRA1605 module?
A9: Yes, the Schneider Electric BMXDRA1605 I/O Module comes with a 2-year warranty from MRO Electric and Supply. This warranty ensures that customers can trust in the quality and longevity of the module for their automation needs.
Schneider Electric products are manufactured in France and are designed for Material handling, packaging, and textile machines usage. They come with a 2-year warranty from MRO Electric. We also carry I/O Modules from other manufacturers such as Modicon and ABB.
