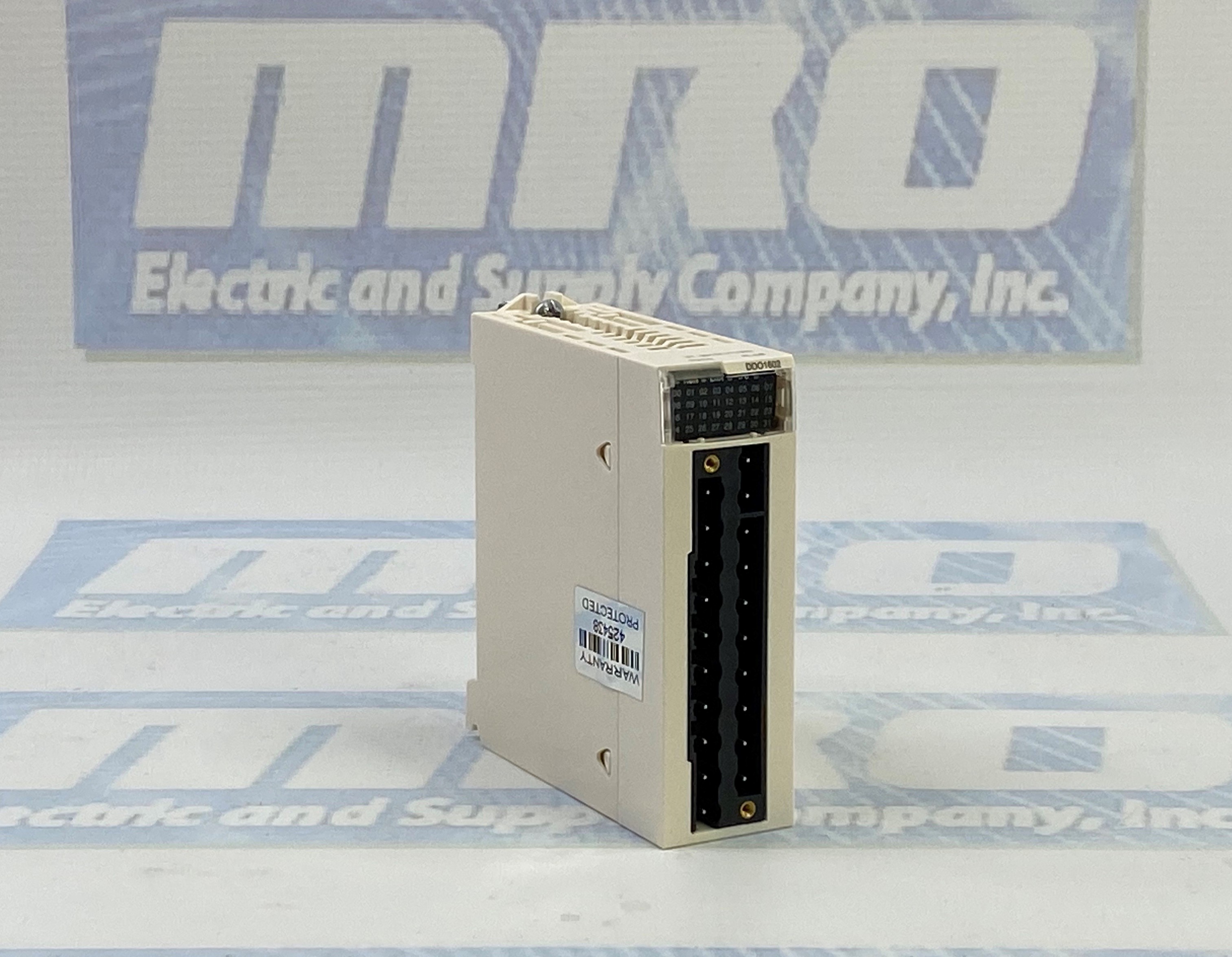

M340 DIGITAL 16Q 0.5 AMP I/O MODULE
| Part Number | BMXDDO1602 |
| Manufacturer | Schneider Electric |
| Type | I/O Modules |
| Model # | BMX-DDO-1602 |
| Warranty | 2 Year |
| Range | Modicon X80 |
| Product | Discrete output |
| Discrete output type | Solid state |
| Discrete output | 16 conforming to EN/IEC 61131 - 2 |
| Output current | 0.5 A |
| Leakage Current | <= 0.5 mA at state 0 |
| Output compatibility | IEC 61131 -2 type 3 DC input Not IEC 61131 -2 DC input |
| Shock resistance | 30 gn |
| Status LED | 1 LED red module error (ERR) 1 LED green module operating (RUN) 1 LED per channel green channel diagnostic 1 LED red module I/O |
| Power dissipation | <= 4 W |
| Resistance | > 10 MOhm 500 V DC |
| IP degree of protection | IP20 |
| Certifications | CE, CSA, U,L RCM, Merchant Navy, EAC |
| Standards | EN/IEC 61131 - 2, EN/IEC 61010-2-201 |
| UL 61010-2-201 | |
| CSA C22.2 No 61010-2-201 | |
| Green Product | Premium |
MRO Electric repairs CNCs, PLCs, Servo/Spindle Drives, Motors, Amplifiers, VFDs, HMIs, and more, most of which can be repaired in only 3-5 days.
MRO can restore your failed BMXDDO1602 to remanufactured condition and save you up to 75% compared to buying new. We offer standard repair pricing to ensure you the best value for your repair.
Our certified technicians use rigorous testing procedures to ensure your parts are restored to fully functioning condition. Our team proudly stands behind all repairs by providing a minimum 2-year warranty.
Our technicians have vast experience with most manufacturers and models. In addition to this BMXDDO1602 we also repair drives, motors, PLCs and more, so if you don’t see the model you need, please contact us.
If you are interested in getting credit for your faulty BMXDDO1602, just let us know, and we can issue you an RMA to send it in as an exchange. Our exchange program provides you with savings and keeps us stocked for the next time you need anything.
Want it shipped tomorrow?
Ask about exchanging your faulty BMXDDO1602 for credit when ordering from MRO Electric
The Schneider Electric BMX-DDO-1602 is a high-performance discrete output module that offers reliable and efficient control in industrial automation systems. As part of the Modicon X80 range, this module exemplifies Schneider Electric’s commitment to providing robust and versatile solutions for various automation needs. The BMX-DDO-1602 module is engineered to deliver precise output control while ensuring compliance with international standards and regulations.
The BMX-DDO-1602 is categorized as a discrete output module specifically designed for managing digital signals in industrial automation applications. This model features 16 discrete output channels, each conforming to the EN/IEC 61131-2 standard, which ensures compatibility with various industrial control systems. The discrete output type is solid-state, providing high reliability and durability compared to traditional mechanical relays. This solid-state design enhances performance by reducing mechanical wear and tear, extending the module's operational lifespan.
The module supports an output current of up to 0.5 amps per channel, making it suitable for controlling various digital devices and actuators in an automation setup. It is equipped with a leakage current of less than or equal to 0.5 mA in the off state, which minimizes the potential for unintended signals or interference. The output compatibility adheres to IEC 61131-2 type 3 DC inputs, ensuring it meets reliable and accurate signal processing standards. The module is designed to handle shock resistance up to 30 g, making it resilient to physical impacts and vibrations commonly found in industrial environments.
The BMX-DDO-1602 features multiple status LEDs for monitoring and diagnostics. It includes one red LED indicating module errors (ERR), one green LED showing module operation (RUN), and individual green LEDs for each channel that provide diagnostic information. Additionally, there is a red LED for module I/O status. These indicators help users quickly identify operational status and troubleshoot issues, ensuring smooth and efficient operation.
The module's power dissipation is less than or equal to 4 watts, which contributes to its energy efficiency. It offers a resistance greater than 10 MΩ at 500 V DC, ensuring reliable isolation and protection from electrical faults and interference.
The BMX-DDO-1602 is housed in an enclosure with an IP20 degree of protection, providing suitable protection against dust and contact with hazardous parts. This makes it appropriate for use in standard industrial environments where additional protective measures may not be required. The module is certified to various international standards, including CE, CSA, UL, RCM, Merchant Navy, and EAC, ensuring it meets stringent quality and safety requirements. It complies with EN/IEC 61131-2, EN/IEC 61010-2-201, UL 61010-2-201, and CSA C22.2 No 61010-2-201 standards, demonstrating its adherence to global industry norms.
Schneider Electric designates the BMX-DDO-1602 as a "Premium" green product, reflecting its commitment to environmental sustainability. This designation indicates that the module meets high environmental standards and contributes to reducing the ecological impact of industrial operations.
MRO Electric and Supply provides a 2-year warranty on the BMX-DDO-1602, ensuring users' confidence in the module’s durability and performance. Additionally, the module is available with free shipping, making it a cost-effective option for businesses looking to enhance their automation systems without incurring additional shipping expenses.
