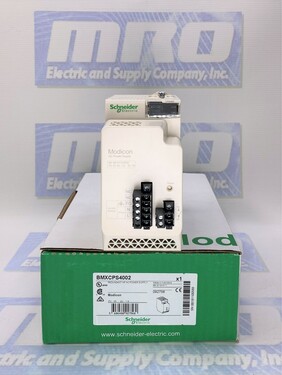

POWER SUPPLIES POWER SUPPLY MODULE X80
| Part Number | BMXCPS4002 |
| Manufacturer | Schneider Electric |
| Type | Power Supplies |
| Model # | BMX-CPS-4002 |
| Warranty | 2 Year |
| Range | Modicon X80 |
| Category | Power supply module |
| Compatibility | Backplane |
| Voltage | 100...240 V |
| Voltage limit | 85…264 V |
| Frequency | 50/60 Hz |
| Frequency limits | 47…63 Hz |
| Inrush current | 30 A 120 V 60 A 240 V |
| MTBF reliability | 792000 H |
| Apparent power | 0.13 kVA |
| Maximum power dissipation | 8.5 W |
| Input current | 0.55 A 240 V 1.01 A 115 V |
| Status LED | 1 LED (green) presence of voltages (OK) 1 LED (green) redundancy OK 1 LED (green) power supply status |
| Insulation resistance | >= 100 MOhm primary/ground >= 100 MOhm primary/secondary |
| Shock resistance | 30 gn |
| Protection | IP20 |
| Ambient air temperature | 0…60 °C |
MRO Electric repairs CNCs, PLCs, Servo/Spindle Drives, Motors, Amplifiers, VFDs, HMIs, and more, most of which can be repaired in only 3-5 days.
MRO can restore your failed BMXCPS4002 to remanufactured condition and save you up to 75% compared to buying new. We offer standard repair pricing to ensure you the best value for your repair.
Our certified technicians use rigorous testing procedures to ensure your parts are restored to fully functioning condition. Our team proudly stands behind all repairs by providing a minimum 2-year warranty.
Our technicians have vast experience with most manufacturers and models. In addition to this BMXCPS4002 we also repair drives, motors, PLCs and more, so if you don’t see the model you need, please contact us.
If you are interested in getting credit for your faulty BMXCPS4002, just let us know, and we can issue you an RMA to send it in as an exchange. Our exchange program provides you with savings and keeps us stocked for the next time you need anything.
Want it shipped tomorrow?
Ask about exchanging your faulty BMXCPS4002 for credit when ordering from MRO Electric
The BMXCPS4002 is a power supply module designed for use with Modicon X80 systems, a product range by Schneider Electric, a leading global provider of industrial automation and control solutions. As a vital component in the Modicon X80 series, this power supply module ensures a stable and uninterrupted power source for various industrial applications. With a primary voltage range of 100 to 240 VAC and a secondary power output of 18 W at 3.3 VDC for the I/O module logic power supply and 40 W at 24 VDC for the I/O module power supply and processor, the BMXCPS4002 delivers efficient and reliable power to support the functioning of critical industrial equipment.
The BMXCPS4002 is designed to be compatible with all backplane configurations, making it a versatile choice for different Modicon X80 setups. This compatibility ensures that the power supply module can seamlessly integrate into various control architectures and industrial networks, providing a consistent and reliable power source to multiple connected devices and modules.
The BMXCPS4002 comes equipped with advanced diagnostics capabilities that enable monitoring and status checking via the network. This feature allows operators to remotely assess the power supply's performance and health, ensuring timely interventions and proactive maintenance. Additionally, the module offers redundancy testing and redundancy information, providing backup support in case of power supply failure to maintain uninterrupted operations in critical industrial processes.
The BMXCPS4002 accepts a wide primary voltage range of 100 to 240 VAC, accommodating various input voltage levels encountered in industrial power systems. This adaptability to a broad range of primary voltages makes the power supply module suitable for global applications and installations, where voltage fluctuations and diverse power sources are prevalent.
The power supply module's secondary power outputs deliver 18 W at 3.3 VDC for the I/O module logic power supply and 40 W at 24 VDC for the I/O module power supply and processor. These outputs are carefully regulated to provide stable and reliable power to support the operation of critical industrial components, such as sensors, actuators, and processors. The efficient power delivery ensures that industrial processes run smoothly and without interruptions.
Safety is a top priority in industrial applications, and the BMXCPS4002 takes this seriously by incorporating comprehensive protection features. These include overload, overvoltage, and short-circuit protection for the secondary circuit, safeguarding both the power supply module and the connected devices from potential electrical faults. The module also features an internal fuse that is not accessible for the primary circuit, ensuring additional safety for the primary circuit.
The BMXCPS4002 is designed with a compact form factor, allowing easy integration into control panels and enclosures with limited space availability. Additionally, the module features status LEDs that provide visual indications of voltage presence, redundancy status, and power supply status. These LEDs assist operators in quickly identifying any issues or faults, allowing for prompt troubleshooting and maintenance actions.
What is the primary function of the Schneider Electric BMX-CPS-4002?
Answer: The Schneider Electric BMX-CPS-4002 is a power supply module designed for the Modicon X80 range. Its primary function is to supply stable power to the backplane of the Modicon X80 system, ensuring continuous operation of the connected devices.
What input voltage range does the BMX-CPS-4002 support?
Answer: The BMX-CPS-4002 supports an input voltage range of 100 to 240 V, with a voltage limit of 85 to 264 V, making it compatible with a wide range of power sources.
What is the inrush current for this power supply module?
Answer: The inrush current for the BMX-CPS-4002 is 30 A at 120 V and 60 A at 240 V, which helps manage the power surge when the module is initially powered on.
How reliable is the BMX-CPS-4002 in terms of operational lifespan?
Answer: The MTBF (Mean Time Between Failures) for the BMX-CPS-4002 is 792,000 hours, demonstrating a high level of reliability for long-term operation.
What are the input current requirements for this power supply module?
Answer: The BMX-CPS-4002 has an input current of 0.55 A at 240 V and 1.01 A at 115 V, ensuring efficient power consumption under different voltage conditions.
Does the BMX-CPS-4002 have any visual status indicators?
Answer: Yes, the BMX-CPS-4002 is equipped with three green LEDs for status indication: one for the presence of voltage (OK), one for redundancy OK, and one for power supply status.
What level of shock resistance does this module provide?
Answer: The BMX-CPS-4002 can withstand shocks of up to 30 gn, ensuring durability and protection in environments where mechanical impacts may occur.
What is the power dissipation of the BMX-CPS-4002?
Answer: The maximum power dissipation for this module is 8.5 W, which contributes to efficient energy usage and minimal heat generation.
What kind of environmental protection does the BMX-CPS-4002 offer?
Answer: The BMX-CPS-4002 has an IP20 protection rating, which safeguards against the ingress of solid objects, like small tools or wires, but it does not protect against liquid exposure.
What is the operating temperature range for the BMX-CPS-4002?
Answer: The ambient air temperature range for the BMX-CPS-4002 is 0 to 60°C, allowing it to operate effectively in both standard and warmer industrial environments.
Schneider Electric products are manufactured in France and are designed for Material handling, packaging, and textile machines usage. They come with a 2-year warranty from MRO Electric. We also carry Power Supplies from other manufacturers such as Modicon and ABB.
Check out the rest of our Schneider Electric product line. Whether it's using our online instant quote feature, giving us a call at (800) 691-8511, or emailing us at sales@mroelectric.com, we strive for customer satisfaction first. This means lower prices and better service for you. For more products like BMXCPS4002, take a look at more from our Power Supplies line. If your current unit has gone bad, take advantage of our Core Exchange program for the most inexpensive route. You can learn more about this program on our FAQ page here. We offer a repair service on all of our BMXCPS4002 products that keep your downtime to a minimum. To stay up to date on manufacturer news, as well as access any of our datasheets, manuals, or other documentation, we suggest you take a look at our blog.
