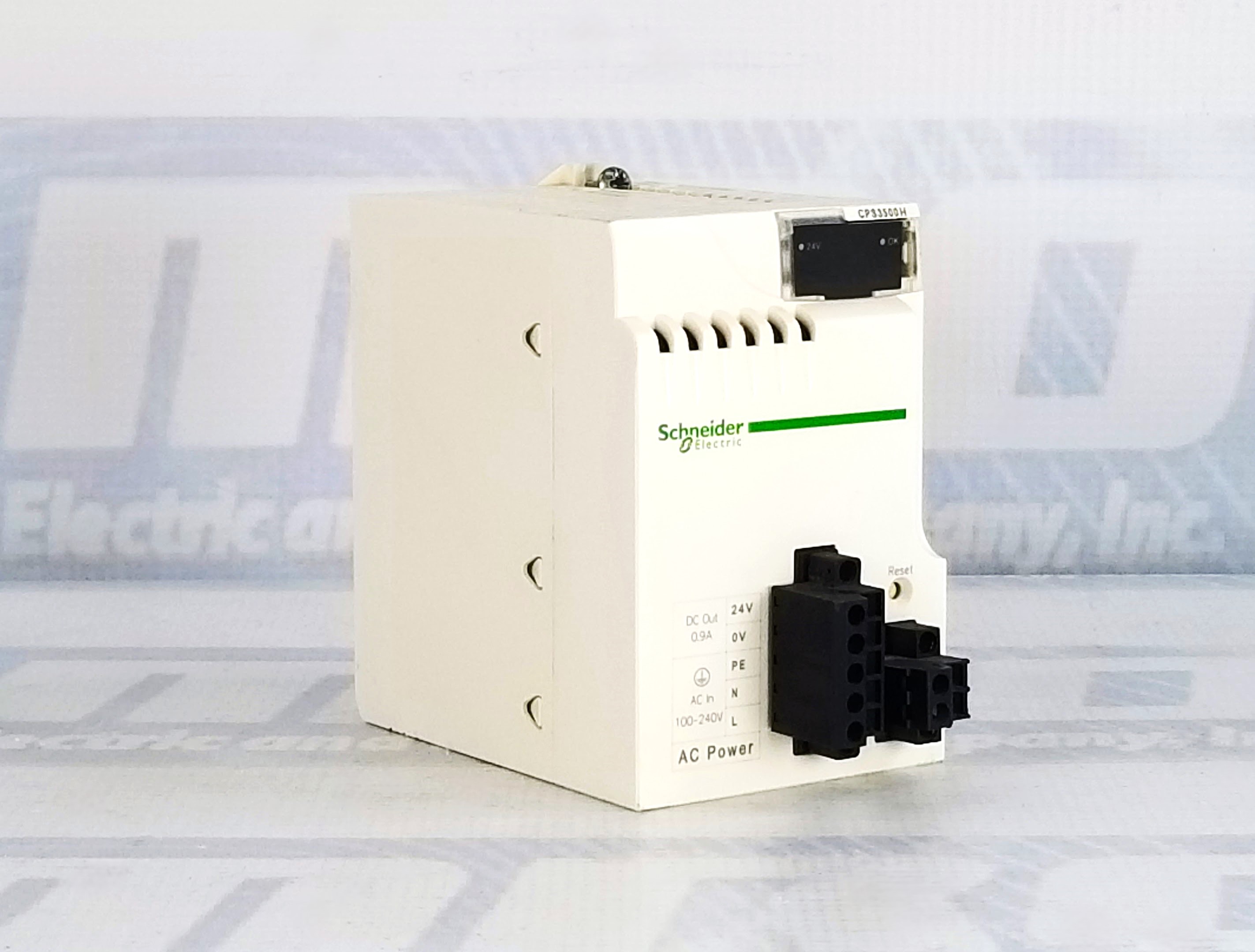

Power supply module, Modicon X80, 100 to 240V AC, 36W, severe environment
Available
Free Shipping
2 Year warranty
| Part Number | BMXCPS3500H |
| Manufacturer | Schneider Electric |
| Type | Power Supplies |
| Model # | BMX-CPS-3500H |
| Warranty | 2 Year |
| Range | Modicon |
| Category | X80 |
| Description | Power supply module |
| Voltage | 100...240 V |
| Supply | AC |
| Frequency | 50/60 H |
| Freq. limits | 47…63 Hz |
| Input | 0.52 A 240 V 1.04 A 115 V |
| MTBF | 4300000 H |
| Max power dissipation | 8.5 W |
| Status | 1 LED (Green) rack voltage OK 1 LED (Green) sensor voltage |
| Insulation resistance | >= 100 MOhm primary/ground >= 100 MOhm primary/secondary |
| Vibration resistance | 3 gn |
| Shock resistance | 30 gn |
| Protection | IP20 |
| Certifications | CE UL CSA RCM EAC Merchant Navy |
| Standards | IEC 61131-2 IEC 61010-2-201 UL 61010-2-201 CSA C22.2 No 61010-2-201 IACS E10 EN/IEC 61000-6-5, interface type 1 and type 2 EN/IEC 61850-3, location G |
| Ambient temp | -25…70 °C |
MRO Electric repairs CNCs, PLCs, Servo/Spindle Drives, Motors, Amplifiers, VFDs, HMIs, and more, most of which can be repaired in only 3-5 days.
MRO can restore your failed BMXCPS3500H to remanufactured condition and save you up to 75% compared to buying new. We offer standard repair pricing to ensure you the best value for your repair.
Our certified technicians use rigorous testing procedures to ensure your parts are restored to fully functioning condition. Our team proudly stands behind all repairs by providing a minimum 2-year warranty.
Our technicians have vast experience with most manufacturers and models. In addition to this BMXCPS3500H we also repair drives, motors, PLCs and more, so if you don’t see the model you need, please contact us.
If you are interested in getting credit for your faulty BMXCPS3500H, just let us know, and we can issue you an RMA to send it in as an exchange. Our exchange program provides you with savings and keeps us stocked for the next time you need anything.
Want it shipped today?
Ask about exchanging your faulty BMXCPS3500H for credit when ordering from MRO Electric
The Schneider Electric BMXCPS3500H power supply module, part of the Modicon X80 range, is a robust and reliable solution for severe environments. It operates efficiently in a wide range of industrial applications, providing essential power to I/O modules and processors.
The BMXCPS3500H belongs to the Modicon X80 series and is a power supply module tailored for severe environments. It is incompatible with BMEXBP..02 backplanes, ensuring it is specifically designed for applications requiring high resilience and durability. The module is ideal for industrial settings where harsh conditions prevail, offering reliable performance under demanding circumstances.
The BMXCPS3500H operates with a primary voltage of 100 to 240 V AC, accommodating a broad range of power inputs. It supports a supply circuit type of AC, with primary voltage limits ranging from 85 to 264 V. The network frequency is 50/60 Hz, with limits between 47 and 63 Hz, making it versatile for various regions and power grids. The apparent power of the module is 0.12 kVA, and it draws an input current of 0.52 A at 240 V and 1.04 A at 115 V.
This power supply module offers multiple secondary power outputs tailored for different components:
These outputs ensure the module can adequately power various components within an industrial setup, maintaining operational efficiency across multiple temperatures.
The BMXCPS3500H has numerous protection features, including internal fuse protection for the primary circuit, overload, overvoltage, and short-circuit protection for the secondary circuit. These safeguards ensure the longevity and safety of the module and connected devices. The module boasts an impressive Mean Time Between Failures (MTBF) of 4,300,000 hours, highlighting its reliability.
The BMXCPS3500H is designed to withstand harsh environmental conditions. It is gas, dust, sand, salt, mold, and fungal spore resistant, meeting several IEC standards such as IEC 61131-2, IEC 61010-2-201, and IEC 60721-3-3. The module has a wide operating temperature range from -25 to 70 °C and a storage temperature range from -40 to 85 °C. It can operate at altitudes up to 2000 meters, with derating factors applied from 2000 to 5000 meters. The module has an IP20 protection rating and complies with various directives, including the low voltage directive (2014/35/EU) and electromagnetic compatibility directive (2014/30/EU).
The BMXCPS3500H features a RESET push-button for cold restart and two status LEDs indicating rack and sensor voltage. Electrical connections include a connector for the alarm relay and line supply, ensuring straightforward installation and maintenance. The insulation resistance is ≥100 MOhm for primary/ground and primary/secondary, ensuring safety and reliability.
Q: What is the primary voltage range for the Schneider Electric BMXCPS3500H power supply module?
A: The primary voltage range for the BMXCPS3500H power supply module is 100 to 240 V AC, with permissible voltage limits from 85 to 264 V.
Q: What type of environments is the BMXCPS3500H designed for?
A: The BMXCPS3500H is specifically designed for severe environments, making it suitable for industrial settings with harsh conditions.
Q: Is the BMXCPS3500H compatible with BMEXBP..02 backplanes?
A: No, the BMXCPS3500H is incompatible with BMEXBP..02 backplanes.
Q: What are the secondary power outputs of the BMXCPS3500H?
A: The BMXCPS3500H provides several secondary power outputs:
Q: What protection features does the BMXCPS3500H have?
A: The BMXCPS3500H includes several protection features, such as an internal fuse for the primary circuit and overload, overvoltage, and short-circuit protection for the secondary circuit.
Q: What is the Mean Time Between Failures (MTBF) for the BMXCPS3500H?
A: The MTBF for the BMXCPS3500H is 4,300,000 hours, indicating its high reliability.
Q: What are the temperature ranges for operating and storing the BMXCPS3500H?
A: The operating temperature range is from -25 to 70 °C, and the storage temperature range is from -40 to 85 °C.
Q: What certifications does the BMXCPS3500H have?
A: The BMXCPS3500H holds several certifications, including CE, UL, CSA, RCM, EAC, and Merchant Navy. It complies with standards such as IEC 61131-2, IEC 61010-2-201, UL 61010-2-201, CSA C22.2 No 61010-2-201, IACS E10, and EN/IEC 61000-6-5.
Q: What is the power dissipation of the BMXCPS3500H?
A: The maximum power dissipation of the BMXCPS3500H is 8.5 W.
Q: What is the function of the status LEDs on the BMXCPS3500H?
A: The BMXCPS3500H's status LEDs indicate rack voltage (one green LED) and sensor voltage (one green LED).
Q: What are the vibration and shock resistance specifications for the BMXCPS3500H?
A: The BMXCPS3500H has a vibration resistance of 3 gn and a shock resistance of 30 gn.
Q: Can the BMXCPS3500H be used in high-humidity environments?
A: Yes, the BMXCPS3500H can operate in environments with relative humidity levels of 5 to 95% at 55 °C without condensation.
Q: What kind of protective treatments does the BMXCPS3500H have?
A: The BMXCPS3500H has a conformal coating, which protects against harsh environmental conditions such as gas, dust, sand, salt, mold, and fungal spores.
