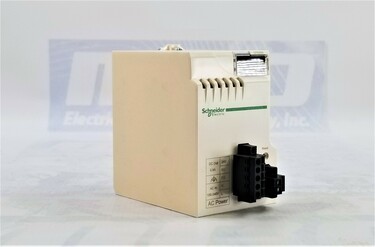

M340 AC POWER SUPPLY - HIGH POWER
| Part Number | BMXCPS3500 |
| Manufacturer | Schneider Electric |
| Type | Power Supplies |
| Model # | BMX-CPS-3500 |
| Warranty | 2 Year |
| Range | Modicon X80 |
| Component | Power supply |
| Voltage | 100…240 V |
| Supply circuit | AC |
| Secondary power | 15 W 3.3 V DC I/O logic power supply 31.2 W 24 V DC I/O module power supply and processor 21.6 W 24 V DC sensor power supply |
| Max V | 85...264 V |
| Net frequency | 50/60 Hz |
| Max net freq | 47…63 Hz |
| Inrush current | 30 A 120 V 60 A 240 V |
| Apparent power | 0.07 kVA |
| Status LED | Rack voltage OK 1 LED green) Sensor voltage 1 LED green) |
| It on activation | 0.05 A.S 120 V 0.07 A.s 240 V |
| I²t on activation | 1 A².S 120 V 3 A².s 240 V |
| Control type | RESET push-button restart |
| Connection | 1 connector 2 alarm relay 1 connector 5 line supply, protective earth, 24 V DC input sensor |
| Max power dissipation | 8.5 W |
| Shock resistance | 30 gn |
| Protection | IP20 |
| Standards | EN 61131-2 EN 61000-6-4 EN 61000-6-2 EN 61010-2-201 |
| Ambient air temperature | 32…140 °F |
MRO Electric repairs CNCs, PLCs, Servo/Spindle Drives, Motors, Amplifiers, VFDs, HMIs, and more, most of which can be repaired in only 3-5 days.
MRO can restore your failed BMXCPS3500 to remanufactured condition and save you up to 75% compared to buying new. We offer standard repair pricing to ensure you the best value for your repair.
Our certified technicians use rigorous testing procedures to ensure your parts are restored to fully functioning condition. Our team proudly stands behind all repairs by providing a minimum 2-year warranty.
Our technicians have vast experience with most manufacturers and models. In addition to this BMXCPS3500 we also repair drives, motors, PLCs and more, so if you don’t see the model you need, please contact us.
If you are interested in getting credit for your faulty BMXCPS3500, just let us know, and we can issue you an RMA to send it in as an exchange. Our exchange program provides you with savings and keeps us stocked for the next time you need anything.
Want it shipped today?
Ask about exchanging your faulty BMXCPS3500 for credit when ordering from MRO Electric
The BMXCPS3500 is a high-power AC power supply designed to provide reliable and stable power for industrial applications. With a wide input voltage range of 100-240 VAC, this power supply can be used in various regions and industrial settings. Delivering a 24 VDC output with a current rating of 0.9 amps and a power rating of 31.2 watts, the BMXCPS3500 ensures sufficient power for a wide range of industrial devices and equipment. Its IP20 rating and cage mount design make it suitable for use in demanding environments where safety and reliability are paramount.
The BMXCPS3500 is a robust AC power supply unit designed to deliver consistent power to industrial automation systems. Its high-power capabilities and wide input voltage range make it suitable for various applications, from small-scale machinery to complex manufacturing processes. The power supply's ability to accommodate input voltages ranging from 100 to 240 VAC ensures its adaptability to different power systems, making it a versatile choice for global applications.
With a 24 VDC output, the BMXCPS3500 provides the essential voltage required for the operation of industrial devices and equipment. The stable and reliable 24 VDC output ensures smooth and efficient performance, reducing the risk of voltage fluctuations that could adversely affect sensitive electronic components or disrupt industrial processes. The power supply's 0.9-amp output current rating and 31.2-watt power rating offer ample capacity to handle a wide range of loads, supporting various industrial applications.
The BMXCPS3500 is rated with an IP20 protection level, which means it protects solid objects larger than 12.5 mm, such as fingers or tools. While it may not offer protection against direct water exposure, the IP20 rating is suitable for indoor use and helps safeguard the power supply from dust, debris, and accidental contact. In industrial environments where dust and other particles are common, the IP20 protection ensures the safety and reliability of the power supply.
The cage mount design of the BMXCPS3500 allows for secure and easy installation within control cabinets or industrial enclosures. The power supply can be easily mounted to DIN rails or other suitable fixtures, saving space and ensuring a neat and organized setup. The cage mount design offers stability and minimizes the risk of vibration or movement during operation, further enhancing the reliability of the power supply and the equipment it powers.
The BMXCPS3500 is designed to operate efficiently, minimizing energy wastage and reducing operating costs. Its high-power conversion efficiency ensures that it delivers the required power to connected devices while consuming minimal energy. This eco-friendly approach not only contributes to cost savings but also aligns with sustainable and energy-efficient industrial practices, making it a responsible choice for environmentally conscious industries.
As a product from a reputable manufacturer like Schneider Electric, the BMXCPS3500 complies with industry standards and regulations, ensuring safety and reliability. The power supply meets essential safety requirements, making it suitable for use in critical industrial applications. Compliance with relevant standards offers peace of mind to users, knowing that the power supply meets the necessary quality and safety criteria.
What is the primary function of the Schneider Electric BMXCPS3500?
The Schneider Electric BMXCPS3500 is a power supply unit designed for the Modicon X80 range. It provides essential power to I/O modules, processors, and sensors in automation systems, ensuring efficient and reliable operation.
What is the input voltage range for this power supply?
The BMXCPS3500 supports an input voltage range of 100 to 240 V AC, making it suitable for global applications. The maximum input voltage range is 85 to 264 V.
What types of secondary power does it provide?
The BMXCPS3500 delivers three types of secondary power:
How does the power supply handle inrush current?
The power supply handles an inrush current of 30 A at 120 V and 60 A at 240 V, which ensures smooth power-up and prevents sudden voltage spikes from damaging connected components.
What is the frequency range supported by this power supply?
The frequency range for the BMXCPS3500 is 47 to 63 Hz, making it compatible with standard industrial power grids worldwide (both 50 Hz and 60 Hz systems).
What kind of protection does the BMXCPS3500 offer?
The BMXCPS3500 features an IP20 protection rating, meaning it is protected against solid objects larger than 12.5 mm, but not against water ingress. Additionally, it conforms to various safety and electromagnetic compatibility standards like EN 61131-2, EN 61000-6-4, and EN 61000-6-2.
How does the power supply indicate operational status?
The BMXCPS3500 is equipped with status LEDs:
What is the power dissipation of this unit?
The power dissipation of the BMXCPS3500 is 8.5 W, which is relatively low, ensuring minimal energy waste and heat generation during operation.
What type of connection does the BMXCPS3500 use?
The power supply includes multiple connection points:
Can the BMXCPS3500 withstand shock or vibration?
Yes, the power supply is designed to handle shock resistance up to 30 gn, making it suitable for industrial environments where physical impacts may occur.
Schneider Electric products are manufactured in France and are designed for Material handling, packaging, and textile machines usage. They come with a 2-year warranty from MRO Electric. We also carry Power Supplies from other manufacturers such as Modicon and ABB.
Check out the rest of our Schneider Electric product line. Whether it's using our online instant quote feature, giving us a call at (800) 691-8511, or emailing us at sales@mroelectric.com, we strive for customer satisfaction first. This means lower prices and better service for you. For more products like BMXCPS3500, take a look at more from our Power Supplies line. If your current unit has gone bad, take advantage of our Core Exchange program for the most inexpensive route. You can learn more about this program on our FAQ page here. We offer a repair service on all of our BMXCPS3500 products that keep your downtime to a minimum. To stay up to date on manufacturer news, as well as access any of our datasheets, manuals, or other documentation, we suggest you take a look at our blog.
