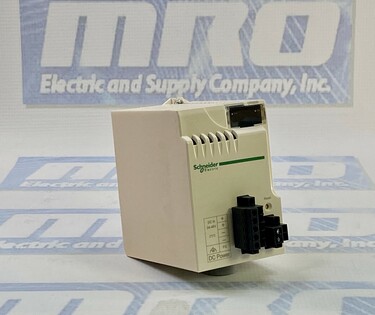

POWER SUPPLIES HIGH POWER ISOLATED 24 - 48 VOLTS DC
| Part Number | BMXCPS3020 |
| Manufacturer | Schneider Electric |
| Type | Power Supplies |
| Model # | BMX-CPS-3020 |
| Warranty | 2 Year |
| Range | Modicon X80 |
| Product | Power supply |
| Voltage | 24...48 V isolated |
| Supply module | DC |
| Input current | 0.83 A 48 V 1.65 A 24 V |
| Inrush current | 30 A 24 V 60 A 48 V |
| Power dissipation | <= 8.5 W |
| Resistance | >= 10 mOhm primary/ground >= 10 mOhm primary/secondary |
| Status LED | 1 LED green rack voltage OK |
| Vibration resistance | 3 gn |
| Shock resistance | 30 gn |
| Protection | IP20 |
| Certifications | CE, CSA, UL, RCM, Merchant Navy, EAC |
| Standards | EN/IEC 61131-2, EN/IEC 61010-2-201, UL 61010-2-201, CSA C22.2 No 61010-2-201 |
| Sustainability | Green Premium |
MRO Electric repairs CNCs, PLCs, Servo/Spindle Drives, Motors, Amplifiers, VFDs, HMIs, and more, most of which can be repaired in only 3-5 days.
MRO can restore your failed BMXCPS3020 to remanufactured condition and save you up to 75% compared to buying new. We offer standard repair pricing to ensure you the best value for your repair.
Our certified technicians use rigorous testing procedures to ensure your parts are restored to fully functioning condition. Our team proudly stands behind all repairs by providing a minimum 2-year warranty.
Our technicians have vast experience with most manufacturers and models. In addition to this BMXCPS3020 we also repair drives, motors, PLCs and more, so if you don’t see the model you need, please contact us.
If you are interested in getting credit for your faulty BMXCPS3020, just let us know, and we can issue you an RMA to send it in as an exchange. Our exchange program provides you with savings and keeps us stocked for the next time you need anything.
Want it shipped tomorrow?
Ask about exchanging your faulty BMXCPS3020 for credit when ordering from MRO Electric
The Schneider Electric BMXCPS3020 is a high-performance power supply module that provides a stable and reliable power source for industrial automation systems. Part of the renowned Modicon X80 range, this power supply is built to meet the demanding requirements of modern industrial environments. With its compact design and robust construction, the BMXCPS3020 offers a reliable power solution with impressive durability and efficiency, making it ideal for various applications.
The Schneider Electric BMXCPS3020 power supply operates within a 24 to 48 V DC voltage range, providing flexibility and compatibility with various industrial setups. It is designed to handle input currents of 0.83 A at 48 V and 1.65 A at 24 V, ensuring stable and efficient power delivery to connected devices. The inrush current is rated at 30 A for 24 V and 60 A for 48 V, allowing the module to handle sudden power surges without compromising performance or safety.
This power supply module is engineered for energy efficiency, with a power dissipation rate of less than or equal to 8.5 W. This low power dissipation helps minimize energy waste, reduce operating costs, and maintain optimal operating temperatures. Additionally, the Schneider Electric BMXCPS3020 is designed with high resistance levels, featuring a resistance greater than or equal to 10 mOhm between the primary and ground and between the primary and secondary connections. This high resistance contributes to the overall efficiency and safety of the module, ensuring reliable operation in diverse environments.
The Schneider Electric BMXCPS3020 includes a green status LED indicating when the rack voltage is functioning correctly, providing a clear indicator for system status monitoring. This feature simplifies maintenance and troubleshooting by offering immediate feedback on the module's operational status. The power supply module is also equipped with an IP20 protection rating, providing a moderate level of protection against dust and small objects, which helps ensure the unit's longevity and reliability in various industrial settings.
Designed to withstand challenging industrial conditions, the BMXCPS3020 offers robust vibration resistance of up to 3 gn and shock resistance of up to 30 gn, ensuring reliable performance even in environments with high levels of mechanical stress. The module meets multiple international certifications, including CE, CSA, UL, RCM, Merchant Navy, and EAC, guaranteeing its compliance with global safety and quality standards. It also adheres to standards such as EN/IEC 61131-2, EN/IEC 61010-2-201, UL 61010-2-201, and CSA C22.2 No 61010-2-201, further emphasizing its reliability and safety.
The Schneider Electric BMXCPS3020 is a Green Premium product, reflecting the company's commitment to sustainability and environmental responsibility. As a Green Premium product, it meets stringent environmental criteria, ensuring reduced environmental impact throughout its lifecycle. This makes it an excellent choice for organizations looking to enhance their sustainability profile while maintaining high performance and reliability in their automation systems.
To provide peace of mind, the Schneider Electric BMXCPS3020 power supply module comes with a 2-year MRO Electric and Supply warranty. Additionally, customers can benefit from free shipping, making it a cost-effective and hassle-free choice for upgrading or expanding their industrial automation systems. With its robust design, energy efficiency, and comprehensive safety features, the Schneider Electric BMXCPS3020 is dependable for maintaining reliable power in diverse industrial applications.
Q1: What is the input voltage range for the Schneider Electric BMXCPS3020 power supply?
A1: The Schneider Electric BMXCPS3020 power supply operates within a DC voltage range of 24 to 48 volts. This flexibility allows it to be compatible with various industrial applications and setups.
Q2: What type of protection does the BMXCPS3020 power supply offer?
A2: The BMXCPS3020 is rated with an IP20 protection level, which offers protection against solid objects larger than 12.5 mm, such as fingers or small tools. It is designed to be used in controlled environments where it is protected from exposure to dust and moisture.
Q3: How does the BMXCPS3020 handle power surges or inrush currents?
A3: The Schneider Electric BMXCPS3020 is designed to manage inrush currents effectively, with ratings of 30 A for 24 V and 60 A for 48 V. This capacity allows the power supply to handle sudden surges of power without compromising its performance or causing damage to connected equipment.
Q4: What are the vibration and shock resistance levels of the BMXCPS3020?
A4: The BMXCPS3020 is built to endure challenging industrial environments, with vibration resistance up to 3 gn and shock resistance up to 30 gn. These specifications ensure reliable operation even in settings with high levels of mechanical stress.
Q5: Does the BMXCPS3020 have any certifications?
A5: Yes, the Schneider Electric BMXCPS3020 holds multiple certifications, including CE, CSA, UL, RCM, Merchant Navy, and EAC. These certifications confirm the product's compliance with various international safety, performance, and quality standards.
Q6: Is there a status indicator on the BMXCPS3020 power supply?
A6: Yes, the BMXCPS3020 is equipped with a green LED indicator that shows the rack voltage status. When the LED is illuminated, the power supply operates correctly, and the rack voltage is within the acceptable range.
Q7: What is the power dissipation rate of the BMXCPS3020?
A7: The power dissipation rate of the Schneider Electric BMXCPS3020 power supply is less than or equal to 8.5 W. This low dissipation rate contributes to energy efficiency and helps maintain optimal operating temperatures.
Q8: Does the Schneider Electric BMXCPS3020 meet any sustainability criteria?
A8: Yes, the BMXCPS3020 is a Green Premium product. This designation signifies that the product meets Schneider Electric's stringent sustainability criteria, reducing its environmental impact throughout its lifecycle.
Q9: What standards does the BMXCPS3020 comply with?
A9: The Schneider Electric BMXCPS3020 complies with several international standards, including EN/IEC 61131-2, EN/IEC 61010-2-201, UL 61010-2-201, and CSA C22.2 No 61010-2-201. These standards ensure the power supply's reliability, safety, and compatibility with various industrial systems.
Q10: What warranty and shipping options are available for the BMXCPS3020?
A10: The Schneider Electric BMXCPS3020 power supply comes with a 2-year MRO Electric and Supply warranty, assuring its quality and reliability. Additionally, free shipping is available, making it a convenient and cost-effective option for customers.
