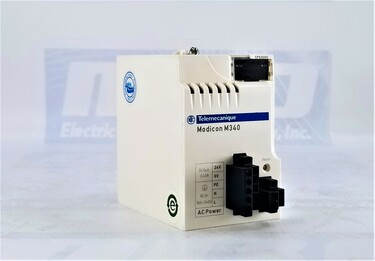

M340 AC POWER SUPPLY - STANDARD
| Part Number | BMXCPS2000 |
| Manufacturer | Schneider Electric |
| Type | Power Supplies |
| Model # | BMX-CPS-2000 |
| Warranty | 2 Year |
| Range | Modicon X80 |
| Component | Power supply module |
| Voltage | 100...240 V |
| Supply type | AC |
| Voltage limits | 85...264 V |
| Frequency | 50/60 Hz |
| Apparent power | 0.07 kVA |
| Protection | IP20 |
| MTBF | 4638000 H |
| Power rating | 8.5 W |
| Status LED | 1 LED (green) rack voltage OK 1 LED (green) sensor voltage |
| Compatibility | Not compatible with BMEXBP..02 |
| Frequency limits | 47…63 Hz |
| Secondary power | 10.8 W 24 V DC sensor power supply 16.8 W 24 V DC I/O module power supply and processor 8.3 W 3.3 V DC I/O module logic power supply |
| Insulation resistance | >= 100 MOhm primary/ground |
| Vibration resistance | 3 gn |
| Shock resistance | 30 gn |
| Ambient temp | -40…85 °C |
| Relative humidity | 5…95 % at 55 °C without condensation |
| Operating altitude | 0...2000 m 2000...5000 m with derating factor |
MRO Electric repairs CNCs, PLCs, Servo/Spindle Drives, Motors, Amplifiers, VFDs, HMIs, and more, most of which can be repaired in only 3-5 days.
MRO can restore your failed BMXCPS2000 to remanufactured condition and save you up to 75% compared to buying new. We offer standard repair pricing to ensure you the best value for your repair.
Our certified technicians use rigorous testing procedures to ensure your parts are restored to fully functioning condition. Our team proudly stands behind all repairs by providing a minimum 2-year warranty.
Our technicians have vast experience with most manufacturers and models. In addition to this BMXCPS2000 we also repair drives, motors, PLCs and more, so if you don’t see the model you need, please contact us.
If you are interested in getting credit for your faulty BMXCPS2000, just let us know, and we can issue you an RMA to send it in as an exchange. Our exchange program provides you with savings and keeps us stocked for the next time you need anything.
Want it shipped tomorrow?
Ask about exchanging your faulty BMXCPS2000 for credit when ordering from MRO Electric
The Schneider Electric BMXCPS2000 is a robust power supply module designed for the Modicon X80 range, offering dependable performance in various industrial applications. Known for its reliability, this power supply module ensures stable energy delivery for systems that demand high uptime and continuous operation. The BMXCPS2000 operates on an AC voltage range of 100 to 240 V, with voltage limits between 85 and 264 V, making it highly adaptable to various power environments. It is designed to cater to high-performance requirements in complex industrial systems, providing critical power with protections that enhance safety and operational resilience. Additionally, this model comes with a two-year warranty from MRO Electric and Supply and includes free shipping, making it a valuable investment for industries looking to enhance their system’s power stability.
The BMXCPS2000 supports a broad voltage range, accommodating input voltages from 100 to 240 V AC and withstanding fluctuations within 85 to 264 V. This flexibility ensures the power module can operate reliably across different power supplies, making it suitable for diverse industrial environments. Additionally, it is designed for both 50 Hz and 60 Hz frequencies, with frequency limits from 47 to 63 Hz. This adaptability allows it to perform consistently regardless of the frequency variations in the power grid, providing peace of mind for users in areas with variable power conditions.
The BMXCPS2000 offers efficient power distribution with a power rating of 8.5 W, which allows it to minimize energy consumption while still delivering sufficient power to critical systems. It features a secondary power supply of 24 V DC for sensor power (10.8 W), I/O module power (16.8 W), and processor support, as well as a 3.3 V DC supply (8.3 W) for I/O module logic. This capability to provide secondary power to multiple components ensures that essential system parts remain powered independently, reducing downtime risk and enhancing system reliability during primary power fluctuations.
Designed with robust safety features, the BMXCPS2000 provides insulation resistance of over 100 MOhm between primary and ground, which enhances user safety and protects the system from electrical faults. It is IP20-rated for protection against dust and accidental contact, making it suitable for use in controlled industrial environments. Additionally, the module is engineered to withstand shock resistance of up to 30 gn and vibration resistance of 3 gn, ensuring stable operation in environments subject to physical stress. This rugged design suits industries that need a resilient and stable power supply module.
With an impressive MTBF (Mean Time Between Failures) of 4,638,000 hours, the BMXCPS2000 demonstrates high reliability, promising long-term service with minimal risk of malfunction. It operates effectively across a wide temperature range of -40 to 85 °C and maintains full functionality at altitudes up to 2,000 meters, with a derating factor applied up to 5,000 meters. The power module’s resistance to extreme temperatures and environmental stressors makes it an excellent choice for demanding industrial settings where durability is crucial.
1. What types of applications is the BMXCPS2000 suitable for?
The BMXCPS2000 is ideal for industrial applications that require reliable power for Modicon X80 systems, particularly in environments where voltage and frequency may fluctuate.
2. Can the BMXCPS2000 power multiple components in a system?
The BMXCPS2000 provides secondary power supplies, including 24 V DC for sensors and I/O modules and 3.3 V DC for I/O module logic, enabling it to support various critical system components.
3. What kind of environmental conditions can the BMXCPS2000 withstand?
This power module operates from -40 to 85 °C, with vibration resistance up to 3 gn and shock resistance up to 30 gn, making it suitable for challenging environments.
4. Is the BMXCPS2000 compatible with BMEXBP..02 systems?
No, the BMXCPS2000 is incompatible with BMEXBP..02 systems, so ensuring compatibility with your Modicon X80 setup is essential.
5. What kind of protection does the BMXCPS2000 offer against dust and contact?
With an IP20 protection rating, the BMXCPS2000 is protected against dust and accidental contact, making it appropriate for use in clean, controlled industrial environments.
