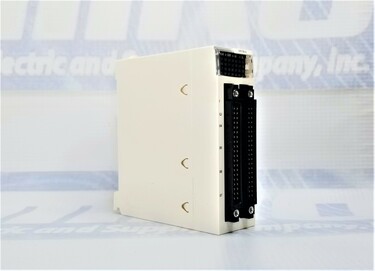

Schneider Electric BMXART0814

M340 8 TC/RTD ISOLATED INPUT ANALOG I/O MODULE

6 in stock

Ships Today


Free Shipping

2 Year warranty

Part NumberBMXART0814
ManufacturerSchneider Electric
TypeI/O Modules
Model #BMX-ART-0814
Warranty2 Year
RangeModicon X80
CategoryAnalog input module
Connection2 connectors 40 ways
Input/output Isolated
Input 8 Analog
Input impedance10 MOhm
Analogue input resolution15 bits + sign
Analog/digital conversionSigma delta 16 bits
Common mode rejection120 dB 50/60 Hz
Type of filterFirst order digital filtering
Differential mode rejection60 dB 50/60 Hz
Permitted overload on inputs+/- 7.5 V +/- 1.28 V +/- 7.5 V +/- 160 mV +/- 7.5 V +/- 320 mV +/- 7.5 V +/- 40 mV +/- 7.5 V +/- 640 mV +/- 7.5 V +/- 80 mV
Nominal read cycle time200 ms with thermocouple 400 ms with temperature probe
Status LED1 LED green RUN 1 LED per channel green channel diagnostic 1 LED red ERR 1 LED red I/O
Current consumption150 mA at 3.3 V DC
Ambient temp32...140 °F
Shock resistance30 gn
Vibration resistance3 gn
ProtectionIP20
CertificationsCE CSA UL RCM Merchant Navy EAC
StandardsEN/IEC 61131-2 EN/IEC 61010-2-201 UL 61010-2-201 CSA C22.2 No 61010-2-201
Environmental3C3 conforming to EN/IEC 60721-3-3 3C4 conforming to EN/IEC 60721-3-3
