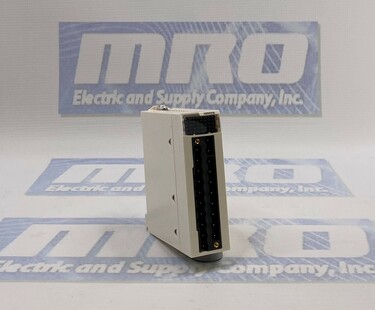

BMXAMO0210 Analog Output Module for Modicon M340 Automation Platform

The BMXAMO0210 is a versatile analog output module designed for the Modicon M340 automation platform, offering precise control over industrial processes. With its advanced features and reliable performance, this module is a crucial component in automation systems requiring analog output signals.

Key Features:

Modicon M340 Compatibility:

The BMXAMO0210 is part of the Modicon M340 automation platform, ensuring seamless integration with other modules and devices within the system. This compatibility enhances flexibility and scalability in designing automation solutions.

Analog Output Module:

As an analog output module, the BMXAMO0210 provides two output channels, allowing users to generate analog signals for controlling various industrial processes. The module supports both voltage (-10 to +10 V) and current (4-20 mA, 0-20 mA) output types.

Electrical Connection:

The module features a convenient 20-way connector for electrical connections. This streamlined design simplifies installation and maintenance tasks, reducing downtime and enhancing overall system efficiency.

Isolation and Accuracy:

With isolated input and output channels, the BMXAMO0210 ensures signal integrity and protection against interference. The module maintains high accuracy, with a measurement error of 0.1% of full scale at 25 °C, making it suitable for applications demanding precision.

Temperature Stability:

The module exhibits temperature drift characteristics of 40 ppm/°C for both current and voltage outputs. This stability ensures reliable performance across a broad temperature range (0 to 60 °C), making it suitable for industrial environments with varying operating conditions.

Recalibration and Factory Calibration:

The BMXAMO0210 comes factory-calibrated, minimizing the need for extensive setup procedures. Recalibration can be performed as needed, providing users with flexibility in adapting the module to specific application requirements.

Isolation Voltage:

The module boasts an isolation voltage of 750 V DC between channels, ensuring electrical safety within the system. Additionally, it provides isolation of 1400 V DC between channels and both the bus and ground, adding an extra layer of protection.

Load Impedance and Detection:

Load impedance requirements for the module vary based on the output type, ensuring compatibility with a range of industrial devices. The module includes detection features for short circuits and open circuits, enhancing system diagnostics and fault identification.

Analog Output Resolution:

With a resolution of 15 bits plus sign, the module delivers high-precision analog output signals. This fine resolution is essential for applications where minute changes in output values are critical for precise control.

Environmental Considerations:

Operating within an ambient air temperature range of 0 to 60 °C, the BMXAMO0210 is suitable for deployment in diverse industrial environments. The module maintains its performance even in challenging conditions with relative humidity ranging from 10% to 95%, without condensation.

Status Indicators:

The module features LED indicators, including one red I/O LED, one red ERR LED, and a green RUN LED. Additionally, each channel has a green LED for diagnostic purposes, providing at-a-glance status information.

Compact and Lightweight Design:

Weighing only 0.144 kg, the BMXAMO0210 offers a compact form factor without compromising on functionality. Its lightweight design facilitates easy integration into existing automation setups.

Current Consumption:

The module operates with a current consumption of 110 mA at 24 V DC and 150 mA at 3.3 V DC, ensuring energy efficiency and optimal utilization of power resources.

IP20 Protection:

With an IP20 degree of protection, the module is safeguarded against solid object ingress, making it suitable for installation in controlled environments.

Protective Treatment:

The module undergoes protective treatment with TC (Tropicalization), enhancing its resilience to environmental factors and ensuring longevity in diverse industrial settings.

FAQs (Frequently Asked Questions) - BMXAMO0210 Analog Output Module

What is the purpose of the BMXAMO0210 Analog Output Module?

The BMXAMO0210 is designed to generate analog output signals in industrial automation systems. It provides two output channels, supporting both voltage and current outputs for precise control of various processes.

Which automation platform is the BMXAMO0210 compatible with?

The BMXAMO0210 is part of the Modicon M340 automation platform, ensuring seamless integration within this system.

What types of analog outputs does the module support?

The module supports voltage outputs in the range of -10 to +10 V and current outputs in the ranges of 4-20 mA and 0-20 mA.

How many output channels does the BMXAMO0210 have?

The BMXAMO0210 provides two output channels, offering flexibility in generating analog signals for different applications.

Is the module factory calibrated?

Yes, the BMXAMO0210 comes factory-calibrated, reducing the need for extensive setup procedures. Users can also recalibrate it as needed.

What is the isolation voltage of the module?

The module features an isolation voltage of 750 V DC between channels, ensuring electrical safety within the system. Additionally, it provides isolation of 1400 V DC between channels and both the bus and ground.

What is the temperature range for the BMXAMO0210?

The module operates within an ambient air temperature range of 0 to 60 °C, making it suitable for deployment in diverse industrial environments.

How does the module handle load impedance?

Load impedance requirements vary based on the output type. For voltage outputs (+/- 10 V), the module requires a load impedance greater than or equal to 1000 Ohms. For current outputs (4-20 mA, 0-20 mA), the load impedance should be less than or equal to 600 Ohms.

Does the BMXAMO0210 provide diagnostic information?

Yes, the module includes LED indicators for status and diagnostics. It features a red I/O LED, a red ERR LED, and a green RUN LED. Each channel also has a green LED for diagnostic purposes.

What is the IP degree of protection for the BMXAMO0210?

The module has an IP20 degree of protection, safeguarding it against solid object ingress.
