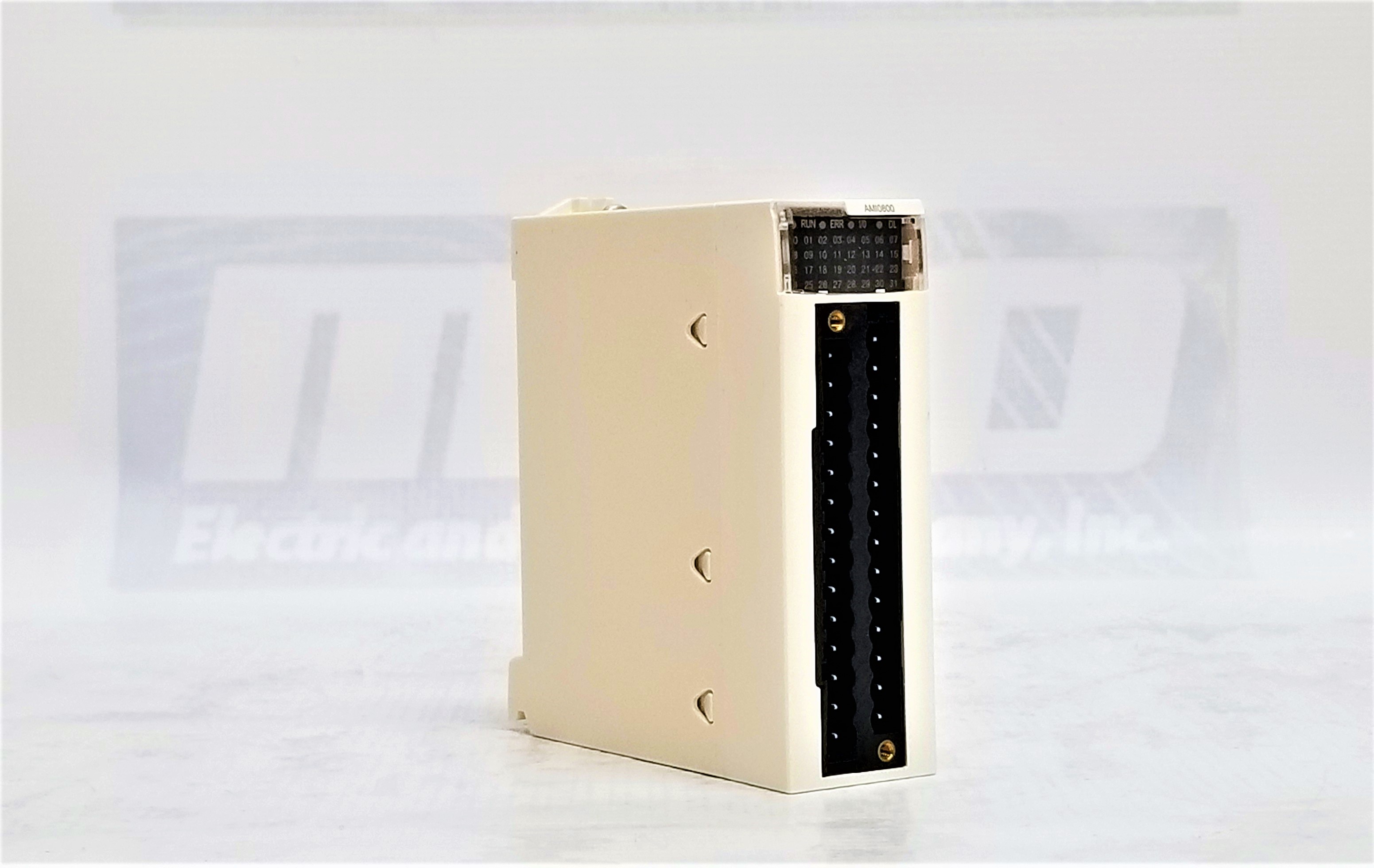

MODICON ANALOG 8 U/I IN NO ISOL FAST
| Part Number | BMXAMI0800 |
| Manufacturer | Schneider Electric |
| Type | I/O Modules |
| Model # | BMX-AMI-0800 |
| Warranty | 2 Year |
| Product | Modicon X80 |
| Component | Analog Input |
| Analog | Non-Isolated |
| Connection | 28 ways 1 connector |
| Input Level | High Level |
| Analog Input | 8 Analog |
| Ana.Input Type | Current +/- 20 mA Current 0...20 mA Current 4...20 mA Voltage +/- 10 V Voltage +/- 5 V Voltage 0...10 V Voltage 0...5 V Voltage 1...5 V |
| Ana. Dig. Converstion | 16 Bits |
| Ana. Input Resolution | 15 bits + sign |
| Overloads on Input | +/- 30 mA 0...20 mA +/- 30 mA 4...20 mA +/- 30 V +/- 10 V +/- 30 V +/- 5 V +/- 30 V 0...10 V +/- 30 V 0...5 V +/- 30 V 1...5 V +/- 30 mA +/- 20 mA |
| Impedance | 10 MOhm in voltage mode 250 Ohm in current mode |
| Filter | First order digital filtering |
| Fast Read Cycle Time | 1 ms + 1 ms x number of channels used |
| Nom Read Cycle Time | 9 ms for 8 Channels |
| Status LED | 1 LED (green) RUN 1 LED per channel (green) channel diagnostic 1 LED (red) ERR 1 LED (red) I/O |
| (W) Power Consumption | 0.90 W 24 V DC typical 1.10 W 24 V DC maximum 0.32 W 3.3 V DC typical 0.48 W 3.3 V DC maximum |
| Protection | IP20 |
| Certification | CE, RCM, CSA, EAC, Merchant Navy |
| Standards | EN/IEC 61010-2-201 EN/IEC 61131-2 UL 61010-2-201 CSA C22.2 No 61010-2-201 |
MRO Electric repairs CNCs, PLCs, Servo/Spindle Drives, Motors, Amplifiers, VFDs, HMIs, and more, most of which can be repaired in only 3-5 days.
MRO can restore your failed BMXAMI0800 to remanufactured condition and save you up to 75% compared to buying new. We offer standard repair pricing to ensure you the best value for your repair.
Our certified technicians use rigorous testing procedures to ensure your parts are restored to fully functioning condition. Our team proudly stands behind all repairs by providing a minimum 2-year warranty.
Our technicians have vast experience with most manufacturers and models. In addition to this BMXAMI0800 we also repair drives, motors, PLCs and more, so if you don’t see the model you need, please contact us.
If you are interested in getting credit for your faulty BMXAMI0800, just let us know, and we can issue you an RMA to send it in as an exchange. Our exchange program provides you with savings and keeps us stocked for the next time you need anything.
Want it shipped tomorrow?
Ask about exchanging your faulty BMXAMI0800 for credit when ordering from MRO Electric
The Schneider Electric BMXAMI0800 is a high-performance analog input module, part of the Modicon X80 range, designed to support advanced industrial automation systems. This module is engineered to provide precise data acquisition and seamless integration into control processes, making it a valuable addition to various manufacturing and process control environments.
Equipped with eight analog input channels, the BMXAMI0800 supports various current and voltage input types, including 0–20 mA, 4–20 mA, ±10 V, and ±5 V, among others. This flexibility allows it to handle diverse applications and ensures compatibility with various sensors and devices. Featuring a 16-bit analog-to-digital conversion and a resolution of 15 bits plus sign, it guarantees high data measurement and processing accuracy.
The module is designed for robustness and reliability, with overload protection of ±30 mA for current inputs and ±30 V for voltage inputs. It incorporates first-order digital filtering, enhancing the quality of input signal processing. The fast read cycle time of 1 ms per channel ensures rapid data acquisition, making it ideal for applications that demand quick response times.
Built to meet global standards, including CE, RCM, CSA, and UL certifications, the BMXAMI0800 adheres to stringent safety and quality benchmarks. It features an IP20 protection rating, ensuring durability in controlled environments. The module offers energy-efficient operation with a low power consumption of 0.9 W (typical) at 24 V DC.
Backed by a two-year warranty from MRO Electric and Supply and offering free shipping, the Schneider Electric BMXAMI0800 delivers exceptional value for industrial automation projects. With clear diagnostic LED indicators and seamless integration with Modicon X80 systems, it combines user-friendliness with advanced functionality.
What is the primary function of the BMXAMI0800 module?
The module is an analog input component for industrial automation systems, enabling precise data acquisition and integration.
How many input channels does the module have?
The BMXAMI0800 features eight analog input channels.
What types of inputs does it support?
It supports current and voltage inputs, including ranges 0–20 mA, 4–20 mA, ±10 V, and ±5 V.
What is the resolution of its analog-to-digital conversion?
The module offers 16-bit analog-to-digital conversion with a resolution of 15 bits plus sign.
What is the typical read cycle time for the module?
The typical read cycle time is 9 ms for all eight channels, with a fast read cycle time of 1 ms per channel.
Does it include diagnostic indicators?
Yes, it features diagnostic LEDs, including green LEDs for RUN and channel diagnostics and red LEDs for ERR and I/O status.
What certifications does the BMXAMI0800 hold?
It holds certifications such as CE, RCM, CSA, EAC, and Merchant Navy and complies with standards like EN/IEC 61010-2-201 and UL 61010-2-201.
What is its power consumption?
The module typically consumes 0.9 W at 24 V DC and 0.32 W at 3.3 V DC.
What level of protection does the module have?
It has an IP20 protection rating, suitable for controlled industrial environments.
Is the BMXAMI0800 compatible with Modicon X80 systems?
It is specifically designed for seamless integration with Schneider Electric’s Modicon X80 automation systems.
