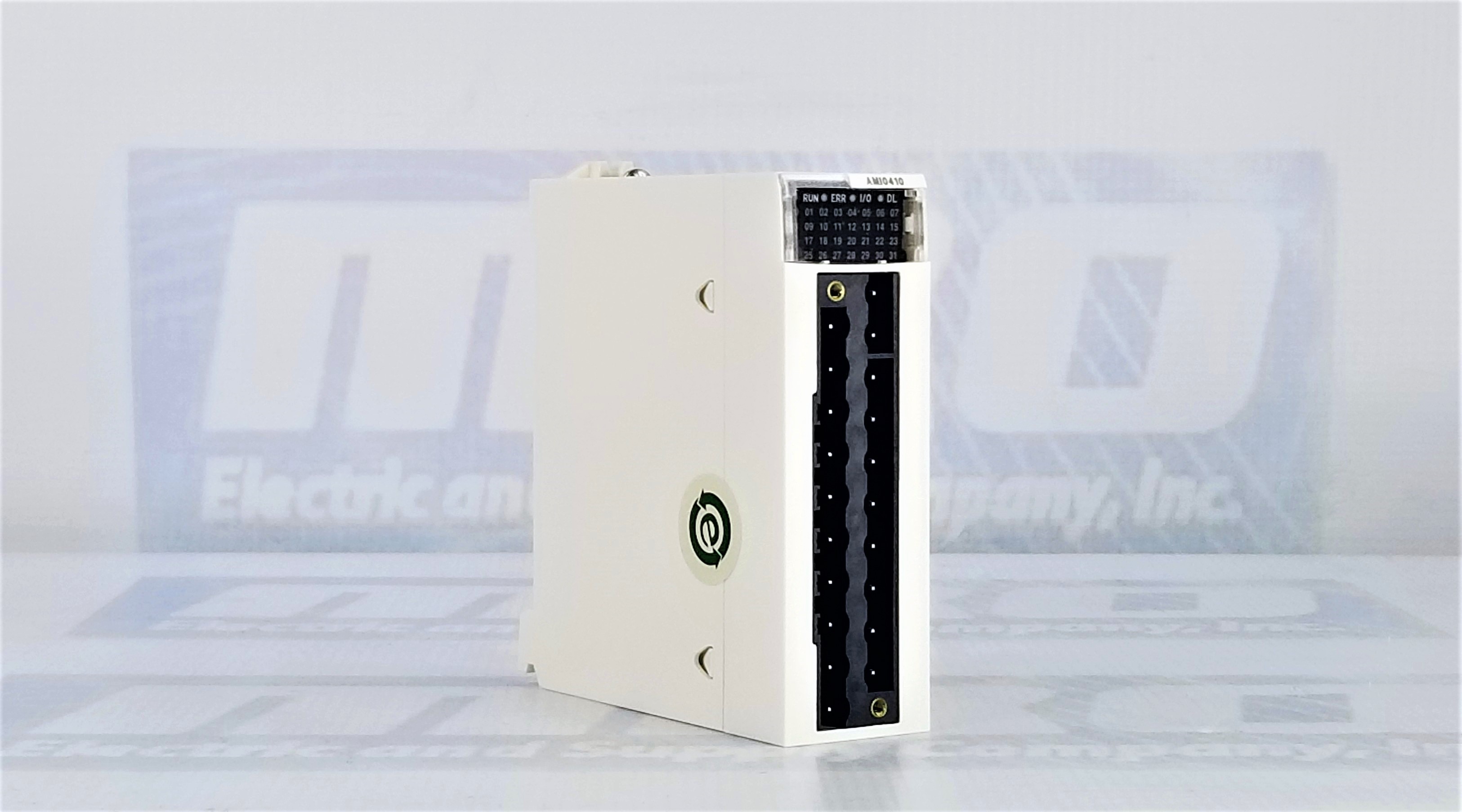

M340 4 U/I ISOLATED HIGH SPEED ANALOG I/O MODULE
| Part Number | BMXAMI0410 |
| Manufacturer | Schneider Electric |
| Type | I/O Modules |
| Model # | BMX-AMI-0410 |
| Warranty | 2 Year |
| Range | Modicon X80 |
| Design | Analog input |
| Connection | 20 /1 connection |
| Analog input | 4 input |
| Analog/Digital conversion | 24 bits |
| Analogue input resolution | 16 bits |
| Internal conversion resistor | 0.1 % - 15 ppm/°C |
| Analog in type | Current +/- 20 mA Current 0...20 mA Current 4...20 mA Voltage +/- 10 V Voltage +/- 5 V Voltage 0...10 V Voltage 0...5 V Voltage 1...5 V |
| Isolation between channels | Isolated |
| Input impedance | 10 MOhm in voltage mode 250 Ohm + 3.6...50 Ohm internal protective resistor in current mode |
| Permitted overload on inputs | +/- 30 V +/- 10 V +/- 30 V +/- 5 V +/- 30 V 0...10 V +/- 30 V 0...5 V +/- 30 V 1...5 V +/- 90 mA +/- 20 mA +/- 90 mA 0...20 mA +/- 90 mA 4...20 mA |
| Filter | First order digital filtering |
| Fast read Cycle time | 1 ms + 1 ms x number of channels used |
| Nominal read cycle time | 5 ms for 4 channels |
| Recalibration | Internal |
| Measurement resolution | 0.35 mV +/- 10 V 0.35 mV +/- 5 V 0.35 mV 0...10 V 0.35 mV 0...5 V 0.35 mV 1...5 V 0.92 µA +/- 20 mA 0.92 µA 0...20 mA 0.92 µA 4...20 mA |
| Isolation voltage | 300 V DC between channels 1400 V DC between channels and ground 1400 V DC between channels and bus |
| MTBF reliability | 1200000 H |
| Status LED | 1 LED (green) RUN 1 LED per channel (green) channel diagnostic 1 LED (red) ERR 1 LED (red) I/O |
| Operating altitude | 0...2000 m 2000...5000 m with derating factor |
MRO Electric repairs CNCs, PLCs, Servo/Spindle Drives, Motors, Amplifiers, VFDs, HMIs, and more, most of which can be repaired in only 3-5 days.
MRO can restore your failed BMXAMI0410 to remanufactured condition and save you up to 75% compared to buying new. We offer standard repair pricing to ensure you the best value for your repair.
Our certified technicians use rigorous testing procedures to ensure your parts are restored to fully functioning condition. Our team proudly stands behind all repairs by providing a minimum 2-year warranty.
Our technicians have vast experience with most manufacturers and models. In addition to this BMXAMI0410 we also repair drives, motors, PLCs and more, so if you don’t see the model you need, please contact us.
If you are interested in getting credit for your faulty BMXAMI0410, just let us know, and we can issue you an RMA to send it in as an exchange. Our exchange program provides you with savings and keeps us stocked for the next time you need anything.
Want it shipped today?
Ask about exchanging your faulty BMXAMI0410 for credit when ordering from MRO Electric
The Schneider Electric BMXAMI0410 is a versatile I/O module from the Modicon X80 range designed for industrial automation systems. This module is engineered to deliver high-precision analog input capabilities, making it ideal for complex process control applications that demand accuracy and reliability. With a robust design and comprehensive features, the BMXAMI0410 is suitable for environments where precise measurement and monitoring of analog signals are crucial.
The BMXAMI0410 module features four analog inputs, allowing it to handle various input types, including current and voltage signals. It supports multiple input ranges, such as ±20 mA, 0-20 mA, and 4-20 mA for current, and ±10 V, ±5 V, 0-10 V, 0-5 V, and 1-5 V for voltage. This versatility ensures compatibility with various sensors and transducers, making it adaptable for industrial applications. The analog-to-digital conversion is performed with a 24-bit resolution, providing exceptional measurement precision and accuracy.
Equipped with a 16-bit analog/digital conversion resolution, the BMXAMI0410 module ensures detailed and accurate signal representation. It also includes first-order digital filtering, which helps to minimize signal noise and interference, providing clean and stable data readings. The module's fast read cycle time of 1 ms plus 1 ms per channel allows rapid data acquisition. The nominal read cycle time for all four channels is 5 ms, enabling it to handle high-speed processes effectively.
The Schneider Electric BMXAMI0410 module provides robust isolation between channels, with an isolation voltage of 300 V DC between channels and 1400 V DC between channels and ground, as well as between channels and the bus. This high isolation level helps protect the module and connected equipment from electrical interference, ensuring signal integrity and operational safety. Additionally, it includes an internal conversion resistor with a precision of 0.1% and a temperature coefficient of 15 ppm/°C, further enhancing measurement accuracy.
To safeguard the module and connected equipment, the BMXAMI0410 includes an internal protective resistor of 250 Ohms and an additional 3.6 to 50 Ohm resistor in current mode. The input impedance for voltage mode is 10 MOhm, ensuring minimal loading on the signal source. The module also supports a wide range of permissible overloads on inputs, accommodating various input signal levels without risk of damage, thereby providing flexibility and robustness in diverse applications.
Designed for high reliability, the BMXAMI0410 boasts a Mean Time Between Failures (MTBF) of 1,200,000 hours, ensuring long-term, trouble-free operation. It includes multiple status LEDs for real-time monitoring: a green LED for run status, a green LED for channel diagnostics per input channel, a red LED for error indication (ERR), and a red LED for I/O status. These indicators provide immediate visual feedback, helping operators quickly identify and address operational issues.
The Schneider Electric BMXAMI0410 is built to operate in a wide range of environmental conditions, with an operational altitude range of 0 to 2000 meters and up to 5000 meters with a derating factor. This makes it suitable for use in various industrial settings, including those with challenging environmental conditions. The module is also designed with internal recalibration capabilities to maintain accuracy over time and under different operational stresses.
The Schneider Electric BMXAMI0410 I/O module is backed by a 2-year warranty from MRO Electric and Supply, providing peace of mind to users regarding its quality and reliability. Additionally, the module is available with free shipping, ensuring added value and convenience for customers looking to integrate this high-performance I/O module into their automation systems.
What type of signals can the BMXAMI0410 I/O Module handle?
The Schneider Electric BMXAMI0410 module supports analog input types, including current and voltage signals. It can handle current inputs of ±20 mA, 0-20 mA, and 4-20 mA, as well as voltage inputs of ±10 V, ±5 V, 0-10 V, 0-5 V, and 1-5 V. This wide range of input types makes it versatile for use with different types of sensors and instrumentation.
What is the resolution of the analog-to-digital conversion for the BMXAMI0410?
The BMXAMI0410 module's analog-to-digital conversion resolution is 24 bits, providing highly accurate and detailed signal representation. The measurement resolution varies based on the signal type, with 0.35 mV for voltage inputs and 0.92 µA for current inputs, ensuring precise measurement of analog signals.
Does the BMXAMI0410 module provide isolation between channels?
Yes, the BMXAMI0410 module offers robust isolation between channels. Its isolation voltage is 300 V DC between channels and 1400 V DC between channels and ground and between channels and the bus. This high isolation level helps protect against electrical interference and ensures the integrity of the measured signals.
What is the typical read cycle time for the BMXAMI0410 module?
The BMXAMI0410's typical read cycle time is five milliseconds for all four channels. This allows for rapid data acquisition, making it suitable for high-speed process control applications.
How does the module handle input overloads?
The BMXAMI0410 module is designed to handle various overloads on its inputs without risk of damage. It allows permissible overloads for different input levels, such as ±30 V for voltage inputs and ±90 mA for current inputs. This ensures the module can handle unexpected input variations or surges safely.
Is there built-in protection for the analog inputs?
Yes, the BMXAMI0410 module includes internal protection for analog inputs. It is equipped with a protective resistor of 250 Ohms and an additional 3.6 to 50 Ohms resistor in current mode to protect the module and connected devices from potential overcurrent or overvoltage conditions.
What diagnostic features does the BMXAMI0410 have?
The BMXAMI0410 module has multiple diagnostic LEDs to provide real-time operational feedback. One green LED indicates run status, another green LED per channel for channel diagnostics, a red LED indicates error status (ERR), and a red LED indicates I/O status. These diagnostic indicators help quickly identify any issues with the module.
Can the BMXAMI0410 module operate at high altitudes?
The BMXAMI0410 is designed to operate at altitudes up to 2000 meters without any derating. It can also function at altitudes between 2000 and 5000 meters with a derating factor, making it suitable for use in various locations.
What is the warranty for the BMXAMI0410 module?
The Schneider Electric BMXAMI0410 I/O module comes with a 2-year MRO Electric and Supply warranty.
Does the BMXAMI0410 module come with free shipping?
When purchased through MRO Electric and Supply, the BMXAMI0410 module is eligible for free shipping, adding extra value and convenience for customers.
Check out the rest of our Schneider Electric product line. Whether it's using our online instant quote feature, giving us a call at (800) 691-8511, or emailing us at sales@mroelectric.com, we strive for customer satisfaction first. This means lower prices and better service for you. For more products like BMXAMI0410, take a look at more from our I/O Modules line. If your current unit has gone bad, take advantage of our Core Exchange program for the most inexpensive route. You can learn more about this program on our FAQ page here. We offer a repair service on all of our BMXAMI0410 products that keep your downtime to a minimum. To stay up to date on manufacturer news, as well as access any of our datasheets, manuals, or other documentation, we suggest you take a look at our blog.
