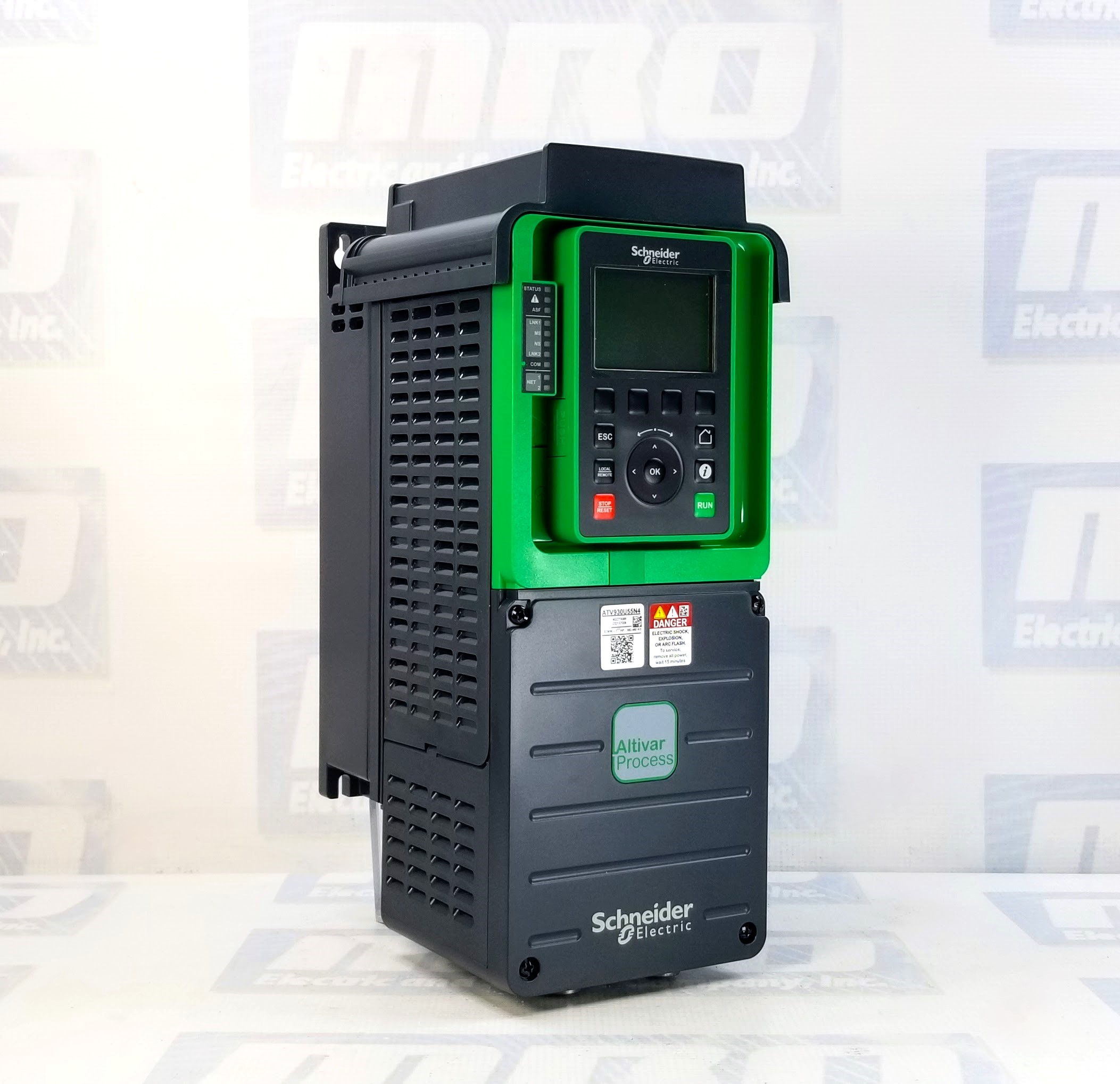

Variable speed drive, Altivar Process ATV900, ATV930, 5.5kW, 400 to 480V, with braking unit, IP21
Available
Free Shipping
2 Year warranty
Part Number | ATV930U55N4 |
Manufacturer | Schneider Electric |
Type | AC Drives |
Warranty | 2 Year |
Range | Altivar Process |
Category | ATV900 |
Description | Variable speed drive |
Phase | 3 Phase |
Communication | EtherNet/IP, Modbus TCP, Modbus serial |
Voltage | 380...480 V - 15...10 % |
Destination | Asynchronous motors Synchronous motors |
Mounting | Wall |
Motor power | 5.5 kW normal duty 4.0 kW heavy duty |
EMC filter | Integrated With EMC plate option |
Continuous output current | 12.7 A 4 kHz normal duty 9.3 A 4 kHz heavy duty |
Variant | Standard version With braking chopper |
Max output frequency | 599 Hz |
Nominal switching frequency | 4 kHz |
Switching frequency | 2...16 kHz adjustable 4...16 kHz with derating factor |
Apparent power | 7.6 kVA 480 V normal duty) 6 kVA 480 V heavy duty) |
Line current | 10.4 A 380 V normal duty) 8.0 A 380 V heavy duty) 9.1 A 480 V normal duty) 7.2 A 480 V heavy duty) |
Network Frequency | 50-60 Hz |
Protection | IP21 |
Discrete input | 10 |
Discrete output | 2 |
Analogue input | 3 |
Analogue output | 2 |
Relay output | 3 |
Physical interface | Ethernet 2-wire RS 485 |
Connector | 2 RJ45 1 RJ45 |
MRO Electric repairs CNCs, PLCs, Servo/Spindle Drives, Motors, Amplifiers, VFDs, HMIs, and more, most of which can be repaired in only 3-5 days.
MRO can restore your failed ATV930U55N4 to remanufactured condition and save you up to 75% compared to buying new. We offer standard repair pricing to ensure you the best value for your repair.
Our certified technicians use rigorous testing procedures to ensure your parts are restored to fully functioning condition. Our team proudly stands behind all repairs by providing a minimum 2-year warranty.
Our technicians have vast experience with most manufacturers and models. In addition to this ATV930U55N4 we also repair drives, motors, PLCs and more, so if you don’t see the model you need, please contact us.
If you are interested in getting credit for your faulty ATV930U55N4, just let us know, and we can issue you an RMA to send it in as an exchange. Our exchange program provides you with savings and keeps us stocked for the next time you need anything.
Want it shipped today?
Ask about exchanging your faulty ATV930U55N4 for credit when ordering from MRO Electric
The Schneider Electric ATV930U55N4 is a variable-speed drive from the Altivar Process ATV900 series designed for industrial applications. This drive is engineered to handle asynchronous and synchronous motors, making it versatile for various industrial processes. The ATV930U55N4 is a 5.5 kW drive operating at a voltage range of 380 to 480 V, suitable for normal and heavy-duty operations. It features an integrated braking unit and EMC filter, offering enhanced control and protection.
The Altivar Process ATV900 series is tailored for industrial applications requiring precise motor control. The ATV930U55N4 is intended for use with asynchronous and synchronous motors, making it ideal for a broad range of industrial processes. Its design includes a braking chopper and supports normal and heavy-duty operations, providing flexibility and reliability.
The ATV930U55N4 is designed for wall mounting, ensuring easy installation and accessibility. It supports multiple communication protocols, including EtherNet/IP, Modbus TCP, and Modbus serial, facilitating integration into various industrial networks. The drive also offers several optional communication modules, such as Profibus DP V1, PROFINET, DeviceNet, EtherCAT, and CANopen, enhancing its connectivity options.
The drive operates on a supply voltage range of 380 to 480 V with a -15% to +10% tolerance. It delivers a motor power of 5.5 kW on normal duty and 4.0 kW on heavy duty. The continuous output current is 12.7 A at 4 kHz for normal duty and 9.3 A at 4 kHz for heavy duty. The integrated EMC filter ensures compliance with electromagnetic compatibility standards.
The ATV930U55N4 boasts comprehensive protection features, including thermal protection for both the motor and the drive, overcurrent protection, short-circuit protection, and protection against line supply issues such as overvoltage and Undervoltage. It also incorporates several safety functions, such as Safe Torque Off (STO) and Safe Stop 1 (SS1), ensuring safe operation in demanding industrial environments.
The drive supports asynchronous and synchronous motor control profiles, including permanent magnet and synchronous reluctance motors. It features an adjustable switching frequency range from 2 to 16 kHz, with a nominal frequency of 4 kHz. The ATV930U55N4 can handle a maximum output frequency of 599 Hz, providing precise and efficient motor control.
The ATV930U55N4 has ten discrete inputs and two discrete outputs, which can be configured for various control functions. It also includes three analog inputs and two analog outputs, providing flexibility for integration with different control systems. Additionally, the drive has three relay outputs, each with configurable logic, ensuring robust and adaptable control capabilities.
The drive has a compact design, measuring 5.7 inches in width, 13.8 inches in height, and 8.1 inches in depth and weighing 10.4 pounds (4.7 kg). It is designed to operate in harsh industrial environments, with an operating temperature range of -15 to 50°C without derating and up to 60°C with derating. The drive meets several industrial standards, including UL 508C, IEC 61800-3, and IEC 61800-5-1, ensuring reliability and safety.
The ATV930U55N4 features an integrated PID regulator, adjustable motor slip compensation, and various braking options, including DC injection. It also supports a range of communication speeds and formats, making it adaptable to different industrial communication needs. The drive is designed for durability, with resistance to chemical and dust pollution, shock, and vibration, ensuring long-term reliable operation in demanding environments.
Q1: What is the primary application of the Schneider Electric ATV930U55N4?
A1: The ATV930U55N4 is designed for industrial applications requiring precise motor control. It is suitable for controlling both asynchronous and synchronous motors in various industrial processes.
Q2: What is the motor power rating of the ATV930U55N4?
A2: The motor power rating of the ATV930U55N4 is 5.5 kW for normal duty and 4.0 kW for heavy-duty operations.
Q3: What communication protocols are supported by the ATV930U55N4?
A3: The ATV930U55N4 supports multiple communication protocols, including EtherNet/IP, Modbus TCP, and Modbus serial. It also offers optional communication modules for Profibus DP V1, PROFINET, DeviceNet, EtherCAT, and CANopen.
Q4: What safety features are integrated into the ATV930U55N4?
A4: The ATV930U55N4 includes several safety features such as Safe Torque Off (STO), Safe Stop 1 (SS1), thermal protection for both the motor and the drive, overcurrent protection, short-circuit protection, and protection against line supply issues like overvoltage and undervoltage.
Q5: What is the operating voltage range of the ATV930U55N4?
A5: The operating voltage range of the ATV930U55N4 is 380 to 480 V, with a tolerance of -15% to +10%.
Q6: How is the ATV930U55N4 mounted?
A6: The ATV930U55N4 is designed for wall mounting, ensuring easy installation and accessibility.
Check out the rest of our Schneider Electric product line. Whether it's using our online instant quote feature, giving us a call at (800) 691-8511, or emailing us at sales@mroelectric.com, we strive for customer satisfaction first. This means lower prices and better service for you. For more products like ATV930U55N4, take a look at more from our AC Drives line. If your current unit has gone bad, take advantage of our Core Exchange program for the most inexpensive route. You can learn more about this program on our FAQ page here. We offer a repair service on all of our ATV930U55N4 products that keep your downtime to a minimum. To stay up to date on manufacturer news, as well as access any of our datasheets, manuals, or other documentation, we suggest you take a look at our blog.
