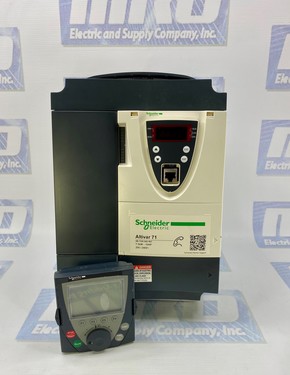

ALTIVAR 71 VARIABLE SPEED DRIVE ATV71 - 7.5KW-10HP - 240V - EMC FILTER-GRAPHIC TERMINAL
Available
Free Shipping
2 Year warranty
| Part Number | ATV71HU75M3 |
| Manufacturer | Schneider Electric |
| Type | AC Drives |
| Warranty | 2 Year |
| Range | ATV 71 |
| Category | Variable speed drive |
| Application | Complex, high-power machines |
| Power supply | 200...240 V - 15...10 % |
| Phase | 3 phase Single phase |
| Motor power | 7.5 KW, 3 phase 200...240 V 5.5 kW, single phase 200...240 V |
| EMC filter | Integrated |
| Assembly style | With heat sink |
| Horse power max | 10 Hp, 3 phase 200...240 V 7.5 hp, single phase 200...240 V |
| Nominal switching frequency | 4 kHz |
| Output frequency | 0.1…599 Hz |
| Apparent power | 9.5 KVA 240 V single phase 5.5 kW / 7.5 hp 16.4 kVA 240 V 3 phase 7.5 kW / 10 hp |
| Prospective line Isc | 22 KA 3 phase 22 kA single phase |
| Nominal output current | 27.5 A 4 kHz 230 V single phase 5.5 kW / 7.5 hp 33 A 4 kHz 230 V 3 phase 7.5 kW / 10 hp |
| Destination | Synchronous motors Asynchronous motors |
| Power supply frequency | 50...60 Hz - 5...5 % |
| Control | Vector control without speed feedback |
| Insulation | Electrical between power and control |
| Regulation loop | Adjustable PI regulator |
| Transient overtorque | 170 % +/- 10 % 60 s every 10 minutes 220 % +/- 10 % 2 s |
| Analogue | 2 in/1 out |
| Discrete | 2 out/ 7 in |
| Communication | CANopen Modbus |
| Interface | 2-wire RS 485 Modbus |
MRO Electric repairs CNCs, PLCs, Servo/Spindle Drives, Motors, Amplifiers, VFDs, HMIs, and more, most of which can be repaired in only 3-5 days.
MRO can restore your failed ATV71HU75M3 to remanufactured condition and save you up to 75% compared to buying new. We offer standard repair pricing to ensure you the best value for your repair.
Our certified technicians use rigorous testing procedures to ensure your parts are restored to fully functioning condition. Our team proudly stands behind all repairs by providing a minimum 2-year warranty.
Our technicians have vast experience with most manufacturers and models. In addition to this ATV71HU75M3 we also repair drives, motors, PLCs and more, so if you don’t see the model you need, please contact us.
If you are interested in getting credit for your faulty ATV71HU75M3, just let us know, and we can issue you an RMA to send it in as an exchange. Our exchange program provides you with savings and keeps us stocked for the next time you need anything.
Want it shipped today?
Ask about exchanging your faulty ATV71HU75M3 for credit when ordering from MRO Electric
The Schneider Electric ATV71HU75M3 is a high-performance variable speed drive from the ATV 71 range, designed for complex and high-power machine applications. This versatile AC drive is suitable for single-phase and three-phase power supplies, making it adaptable for various industrial and commercial environments. With advanced motor control, an integrated EMC filter, and a robust design, the ATV71HU75M3 ensures precise operation, energy efficiency, and long-term reliability.
The ATV71HU75M3 supports synchronous and asynchronous motors, providing optimal control and efficiency. It delivers a motor power of 7.5 kW for three-phase 200-240V systems and 5.5 kW for single-phase 200-240V systems. The drive offers a maximum horsepower of 10 hp for three-phase systems and 7.5 hp for single-phase systems, ensuring powerful performance for demanding applications.
The drive provides a smooth and stable motor response with a nominal switching frequency of 4 kHz. Its output frequency range of 0.1 to 599 Hz allows for precise speed control, catering to various industrial motor applications.
The ATV71HU75M3 operates on a power supply voltage of 200-240V (-15% to +10%) and a power supply frequency of 50-60 Hz (-5% to +5%), ensuring compatibility with various power sources. The drive features electrical insulation between power and control, enhancing safety and reliability.
The prospective line short-circuit current (Isc) rating is 22 kA for single-phase and three-phase connections, providing high fault tolerance. Additionally, it supports transient over-torque up to 220% for 2 seconds, ensuring high overload capacity in demanding applications.
The ATV71HU75M3 utilizes vector control without speed feedback, offering precise regulation of motor speed and torque. It also features an adjustable PI regulator, enabling fine-tuned control for different operating conditions.
For connectivity, the drive includes two analog inputs, one analog output, seven discrete inputs, and two discrete outputs, providing extensive control options. It supports CANopen and Modbus communication protocols, allowing seamless integration into industrial automation systems. Additionally, it features a 2-wire RS 485 Modbus interface, enabling reliable data exchange with other control systems.
Designed with a heat sink for efficient cooling, the ATV71HU75M3 ensures optimal thermal management during operation. Its compact yet durable build makes it suitable for various industrial environments, ensuring long-lasting performance.
What type of motors is the ATV71HU75M3 compatible with?
The drive is designed for synchronous and asynchronous motors, making it highly versatile for various industrial applications.
What is the power rating of this drive?
The ATV71HU75M3 supports 7.5 kW (10 hp) for three-phase 200-240V systems and 5.5 kW (7.5 hp) for single-phase 200-240V systems.
Can this drive operate on both single-phase and three-phase power supplies?
It is compatible with single-phase and three-phase 200-240V power supplies, providing installation flexibility.
What is the maximum output frequency of this drive?
The drive offers an output frequency range of 0.1 Hz to 599 Hz, allowing precise speed control.
What communication protocols does this drive support?
The ATV71HU75M3 supports CANopen and Modbus communication, with a 2-wire RS 485 Modbus interface for seamless connectivity.
Does this drive include an EMC filter?
Yes, the drive features an integrated EMC filter, which ensures compliance with electromagnetic compatibility standards and reduces electrical interference.
What is the enclosure rating of this drive?
The drive has an IP20 protection rating, which provides protection against solid objects but is not waterproof. Additional protective measures may be needed for harsh environments.
How many input and output connections does the drive have?
The drive includes two analog inputs, one analog output, seven discrete inputs, and two discrete outputs, offering extensive control and monitoring options.
What kind of cooling system does this drive use?
The ATV71HU75M3 is designed with a heat sink for efficient cooling, ensuring reliable performance and preventing overheating.
Is there a warranty on this product, and does it come with free shipping?
Yes, the ATV71HU75M3 comes with a 2-year warranty from MRO Electric and Supply, and free shipping is available when purchased from MRO Electric and Supply.
Schneider Electric products are manufactured in France and are designed for Material handling, packaging, and textile machine usage. They come with a 2-year warranty from MRO Electric. We also carry AC Drives from other manufacturers such as Modicon and ABB.
Check out the rest of our Schneider Electric product line. Whether it's using our online instant quote feature, giving us a call at (800) 691-8511, or emailing us at sales@mroelectric.com, we strive for customer satisfaction first. This means lower prices and better service for you. For more products like ATV71HU75M3, take a look at more from our AC Drives line. If your current unit has gone bad, take advantage of our Core Exchange program for the most inexpensive route. You can learn more about this program on our FAQ page here. We offer a repair service on all of our ATV71HU75M3 products that keep your downtime to a minimum. To stay up to date on manufacturer news, as well as access any of our datasheets, manuals, or other documentation, we suggest you take a look at our blog.
