| Part Number | ATV71HU30N4 |
| Manufacturer | Schneider Electric |
| Type | AC Drives |
| Warranty | 2 Year |
| Range of product | Altivar 71 |
| 100 m unshielded cable | |
| 10.7 A for 380 V 3 phases 3 kW | |
| 7.8 A at 4 kHz 380 V 3 phases 3 kW | |
| 12.9 A for 2 s 3 phases 3 kW | |
| 4...16 kHz with derating factor | |
| Voltage/frequency ratio (2 or 5 points) |
| Sensorless flux vector control (SFVC) (voltage or current vector) | |
| Flux vector control (FVC) with sensor (current vector) | |
| Product or component type | Variable speed drive |
| Product specific application | Complex, high-power machines |
| Component name | ATV71 |
| Motor power kW | 3 kW, 3 phases at 380...480 V |
| Maximum motor cable length | 50 m shielded cable |
| Power supply voltage | 380...480 V - 15...10 % |
| Network number of phases | 3 phases |
| Line current | 9 A for 480 V 3 phases 3 kW |
| EMC filter | Integrated |
| Assembly style | With heat sink |
| Apparent power | 7 kVA at 380 V 3 phases 3 kW |
| Prospective line Isc | 5 kA for 3 phases |
| Nominal output current | 6.2 A at 4 kHz 460 V 3 phases 3 kW |
| Maximum transient current | 11.7 A for 60 s 3 phases 3 kW |
| Output frequency | 0.1…599 Hz |
| Nominal switching frequency | 4 kHz |
| Switching frequency | 1...16 kHz adjustable |
| Asynchronous motor control profile | ENA (Energy adaptation) system for unbalanced loads |
| Type of polarization | No impedance for Modbus |
MRO Electric repairs CNCs, PLCs, Servo/Spindle Drives, Motors, Amplifiers, VFDs, HMIs, and more, most of which can be repaired in only 3-5 days.
MRO can restore your failed ATV71HU30N4 to remanufactured condition and save you up to 75% compared to buying new. We offer standard repair pricing to ensure you the best value for your repair.
Our certified technicians use rigorous testing procedures to ensure your parts are restored to fully functioning condition. Our team proudly stands behind all repairs by providing a minimum 2-year warranty.
Our technicians have vast experience with most manufacturers and models. In addition to this ATV71HU30N4 we also repair drives, motors, PLCs and more, so if you don’t see the model you need, please contact us.
If you are interested in getting credit for your faulty ATV71HU30N4, just let us know, and we can issue you an RMA to send it in as an exchange. Our exchange program provides you with savings and keeps us stocked for the next time you need anything.
Want it shipped tomorrow?
Ask about exchanging your faulty ATV71HU30N4 for credit when ordering from MRO Electric
Schneider Electric products are manufactured in France and are designed for Material handling, packaging, and textile machines usage. They come with a 2-year warranty from MRO Electric. We also carry AC Drives from other manufacturers such as Modicon and ABB.

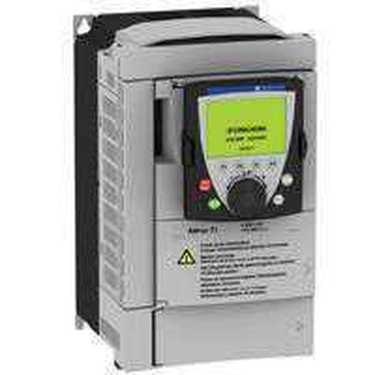

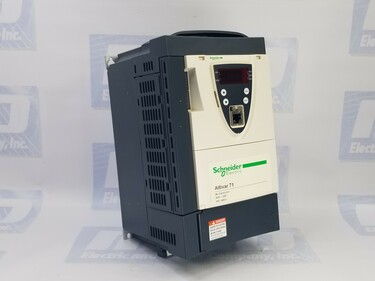

The Schneider Electric ATV71HU30N4, a variable speed drive meticulously engineered for the intricate demands of complex, high-power machines, embodies a blend of advanced features and robust design. With a motor power of 3 kW operating in 3 phases at 380 to 480 V, this drive serves as a versatile solution capable of meeting the diverse needs of industrial applications.
One of the standout features of the ATV71HU30N4 is its integration of an EMC filter and a heat sink assembly style. This integration not only ensures compliance with electromagnetic compatibility standards but also enhances overall performance. With an apparent power of 7 kVA at 380 V, the drive showcases its capability to deliver efficient and reliable operation, even in challenging industrial environments.
The ATV71HU30N4 supports a range of control profiles, making it adaptable to various operational scenarios. The ENA system, voltage/frequency ratio, sensorless flux vector control, and flux vector control are among the profiles available. Importantly, the absence of impedance for Modbus polarization adds a layer of simplicity to the integration process, making it more user-friendly.
Designed with versatility in mind, the drive caters to both synchronous and asynchronous motors. Its impressive speed range of 0.1 to 599 Hz showcases its adaptability to a wide array of motor types and operational requirements. Moreover, the drive ensures precise control with a speed accuracy of +/- 0.01% in closed-loop mode and torque accuracy of +/- 15% in open-loop mode, underscoring its commitment to delivering reliable and accurate performance.
In the realm of connectivity, the ATV71HU30N4 provides a wealth of options. Supporting protocols such as Modbus and CANopen, the drive facilitates seamless integration into various industrial setups. Connectors like RJ45 and Male SUB-D 9 enhance its connectivity capabilities. On the diagnostic front, the inclusion of features such as a red LED for drive voltage adds an extra layer of visibility, allowing operators to monitor the drive's status easily. Robust protection mechanisms against overcurrent, overheating, and input phase loss further contribute to the drive's reliability and longevity.
Certified by UL, GOST, NOM, CSA, and C-Tick, the ATV71HU30N4 adheres to stringent industry standards. These certifications not only speak to the drive's quality and safety but also enhance its market acceptance. Environmental considerations are not overlooked, with a noise level of 54.5 dB ensuring a quiet operational environment. The drive also meets dielectric strength standards, underscoring its commitment to electrical safety. Compliance with IEC 61000 standards for electromagnetic compatibility further solidifies its position as a technologically advanced and reliable variable speed drive.
The ATV71HU30N4 is designed to operate within a temperature range of -10 to 50 °C, ensuring its suitability for various industrial settings. Additionally, it can function at altitudes of up to 3000m with derating, demonstrating adaptability to diverse environmental conditions. In terms of physical dimensions, the drive is compact, standing at 260mm in height, 187mm in depth, and 155mm in width. This compact form factor makes it a space-efficient solution without compromising on performance.
In conclusion, the Schneider Electric ATV71HU30N4 is a testament to the intersection of advanced technology and robust engineering. Its features cater to the nuanced requirements of high-power machines, offering a versatile and reliable solution for industrial applications. Whether in terms of control profiles, motor compatibility, connectivity, or environmental considerations, the ATV71HU30N4 stands as a comprehensive and sophisticated variable speed drive.
Check out the rest of our Schneider Electric product line. Whether it's using our online instant quote feature, giving us a call at (800) 691-8511, or emailing us at sales@mroelectric.com, we strive for customer satisfaction first. This means lower prices and better service for you. For more products like ATV71HU30N4, take a look at more from our AC Drives line. If your current unit has gone bad, take advantage of our Core Exchange program for the most inexpensive route. You can learn more about this program on our FAQ page here. We offer a repair service on all of our ATV71HU30N4 products that keep your downtime to a minimum. To stay up to date on manufacturer news, as well as access any of our datasheets, manuals, or other documentation, we suggest you take a look at our blog.
