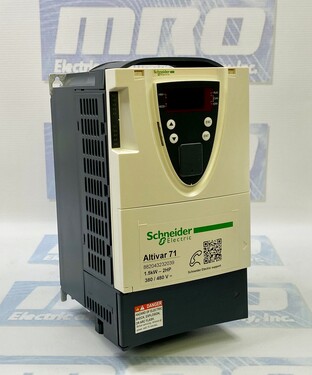

ALTIVAR 71 ATV71 1.5 KW 2 HP 480 VOLT EMC FILTER
4 in stock
Ships Today
Free Shipping
2 Year warranty
| Part Number | ATV71HU15N4 |
| Manufacturer | Schneider Electric |
| Type | AC Drives |
| Warranty | 2 Year |
| Range of product | Altivar 71 |
| 100 m unshielded cable | |
| 5.8 A for 380 V 3 phases 1.5 kW / 2 hp | |
| 4.1 A at 4 kHz 380 V 3 phases 1.5 kW / 2 hp | |
| 6.8 A for 2 s 3 phases 1.5 kW / 2 hp | |
| 4...16 kHz with derating factor | |
| Sensorless flux vector control (SFVC) (voltage or current vector) |
| ENA (Energy adaptation) system for unbalanced loads | |
| Voltage/frequency ratio (2 or 5 points) | |
| Product or component type | Variable speed drive |
| Product specific application | Complex, high-power machines |
| Component name | ATV71 |
| Motor power kW | 1.5 kW, 3 phases at 380...480 V |
| Motor power hp | 2 hp, 3 phases at 380...480 V |
| Maximum motor cable length | 50 m shielded cable |
| Power supply voltage | 380...480 V - 15...10 % |
| Network number of phases | 3 phases |
| Line current | 5.3 A for 480 V 3 phases 1.5 kW / 2 hp |
| EMC filter | Integrated |
| Assembly style | With heat sink |
| Apparent power | 3.8 kVA at 380 V 3 phases 1.5 kW / 2 hp |
| Prospective line Isc | 5 kA for 3 phases |
| Nominal output current | 3.4 A at 4 kHz 460 V 3 phases 1.5 kW / 2 hp |
| Maximum transient current | 6.2 A for 60 s 3 phases 1.5 kW / 2 hp |
| Output frequency | 0.1…599 Hz |
| Nominal switching frequency | 4 kHz |
| Switching frequency | 1...16 kHz adjustable |
| Asynchronous motor control profile | Flux vector control (FVC) with sensor (current vector) |
| Type of polarization | No impedance for Modbus |
MRO Electric repairs CNCs, PLCs, Servo/Spindle Drives, Motors, Amplifiers, VFDs, HMIs, and more, most of which can be repaired in only 3-5 days.
MRO can restore your failed ATV71HU15N4 to remanufactured condition and save you up to 75% compared to buying new. We offer standard repair pricing to ensure you the best value for your repair.
Our certified technicians use rigorous testing procedures to ensure your parts are restored to fully functioning condition. Our team proudly stands behind all repairs by providing a minimum 2-year warranty.
Our technicians have vast experience with most manufacturers and models. In addition to this ATV71HU15N4 we also repair drives, motors, PLCs and more, so if you don’t see the model you need, please contact us.
If you are interested in getting credit for your faulty ATV71HU15N4, just let us know, and we can issue you an RMA to send it in as an exchange. Our exchange program provides you with savings and keeps us stocked for the next time you need anything.
Want it shipped today?
Ask about exchanging your faulty ATV71HU15N4 for credit when ordering from MRO Electric
The Schneider Electric ATV71HU15N4 is a versatile and high-performance variable speed drive in the Altivar 71 range. Designed to optimize the control and performance of complex, high-power machines, the ATV71HU15N4 is ideal for industrial applications requiring precise motor control. With its robust features, including energy-efficient operation and sensorless flux vector control (SFVC), this drive ensures enhanced performance and reliability in environments demanding high operational efficiency. It can drive asynchronous motors with up to 1.5 kW (2 hp) power and operates across a voltage range of 380 to 480 V, making it suitable for global installations.
The ATV71HU15N4 AC drive offers variable speed control for complex and high-power machines, providing motor power of up to 1.5 kW (2 hp). Its voltage range spans from 380 to 480 V, supporting three-phase systems with a current rating of 5.3 A for 480 V. With an integrated EMC filter, the drive complies with stringent electromagnetic compatibility standards, ensuring it can operate in environments with minimal interference. The sensorless flux vector control (SFVC) technology optimizes motor performance by controlling the motor's voltage and current, enhancing efficiency without needing an encoder.
The ATV71HU15N4 operates with an output frequency range of 0.1 to 599 Hz, making it capable of handling various applications requiring precise speed control. Additionally, the switching frequency is adjustable between 1 and 16 kHz, providing flexibility to match the needs of different motor types and reducing audible noise from the motor during operation. The drive is equipped with a heat sink assembly style, which helps maintain optimal operating temperatures, enhancing the overall durability and longevity of the unit.
One of the standout features of the ATV71HU15N4 is its ENA (Energy Adaptation) system, designed to adapt to unbalanced loads. This makes it suitable for systems with fluctuating loads or variable speed demands. The voltage/frequency ratio can be set at 2 or 5 points, allowing for custom control profiles based on application needs.
The ATV71HU15N4 drive is designed with both performance and energy efficiency in mind. The Energy Adaptation (ENA) system, which helps manage unbalanced loads, ensures that energy consumption is minimized without sacrificing performance. The drive has a maximum transient current of 6.2 A for 60 seconds, making it capable of handling momentary power surges without damaging the system. In addition, the unit has an apparent power rating of 3.8 kVA at 380 V, which supports high-performance machinery without overloading the system.
With a maximum motor cable length of 50 meters for shielded cables, this drive is flexible enough for use in larger installations where wiring length may be a concern. The prospective line short-circuit current (Isc) is rated at five kA, providing robust protection against short circuits.
The ATV71HU15N4 is designed for use in complex, high-power machinery applications, particularly those requiring precise speed and torque control. It supports three-phase asynchronous motors and is suitable for various industries, including manufacturing, HVAC, and material handling. Thanks to its Modbus communication interface, the drive is easy to integrate into multiple automation systems, allowing for seamless integration into existing control systems.
Schneider Electric provides a 2-year warranty for the ATV71HU15N4, ensuring reliable operation and peace of mind for end users. Additionally, MRO Electric and Supply offer free shipping, providing an efficient and cost-effective solution for acquiring the drive. With its excellent support and robust performance, the ATV71HU15N4 is a top choice for industries requiring advanced motor control solutions.
1. What is the motor power rating of the ATV71HU15N4 drive?
The ATV71HU15N4 provides 1.5 kW (2 hp) of motor power and is designed to support three-phase motors in a wide range of applications.
2. What does this drive to support the voltage range?
The ATV71HU15N4 supports a voltage range of 380 to 480 V for three-phase systems.
3. Does the ATV71HU15N4 have an integrated EMC filter?
Yes, the ATV71HU15N4 comes with an integrated EMC filter, ensuring compliance with electromagnetic compatibility standards.
4. What is the frequency range of the ATV71HU15N4?
The ATV71HU15N4 has an output frequency range of 0.1 to 599 Hz, allowing precise motor speed control.
5. How does the Energy Adaptation system work?
The ENA (Energy Adaptation) system helps optimize energy consumption, especially in systems with unbalanced loads, by adjusting the drive's performance to reduce energy usage while maintaining operational efficiency.
6. What is the warranty period for the ATV71HU15N4?
The ATV71HU15N4 comes with a 2-year warranty, ensuring reliability and durability for the user.
7. How long can the motor cables be?
The ATV71HU15N4 supports motor cables up to 50 meters for shielded cables, offering flexibility in larger installations.
8. Is the ATV71HU15N4 compatible with Modbus?
The ATV71HU15N4 features Modbus communication, allowing easy integration with existing control systems.
The Schneider Electric ATV71HU15N4 is a versatile, efficient, and reliable solution for motor control in complex and high-power machinery applications. Advanced features such as sensorless flux vector control, energy adaptation, and EMC filtering provide precise control while optimizing energy efficiency in demanding environments.
Schneider Electric products are manufactured in France and are designed for Material handling, packaging, and textile machines usage. They come with a 2-year warranty from MRO Electric. We also carry AC Drives from other manufacturers such as Modicon and ABB.
Check out the rest of our Schneider Electric product line. Whether it's using our online instant quote feature, giving us a call at (800) 691-8511, or emailing us at sales@mroelectric.com, we strive for customer satisfaction first. This means lower prices and better service for you. For more products like ATV71HU15N4, take a look at more from our AC Drives line. If your current unit has gone bad, take advantage of our Core Exchange program for the most inexpensive route. You can learn more about this program on our FAQ page here. We offer a repair service on all of our ATV71HU15N4 products that keep your downtime to a minimum. To stay up to date on manufacturer news, as well as access any of our datasheets, manuals, or other documentation, we suggest you take a look at our blog.
