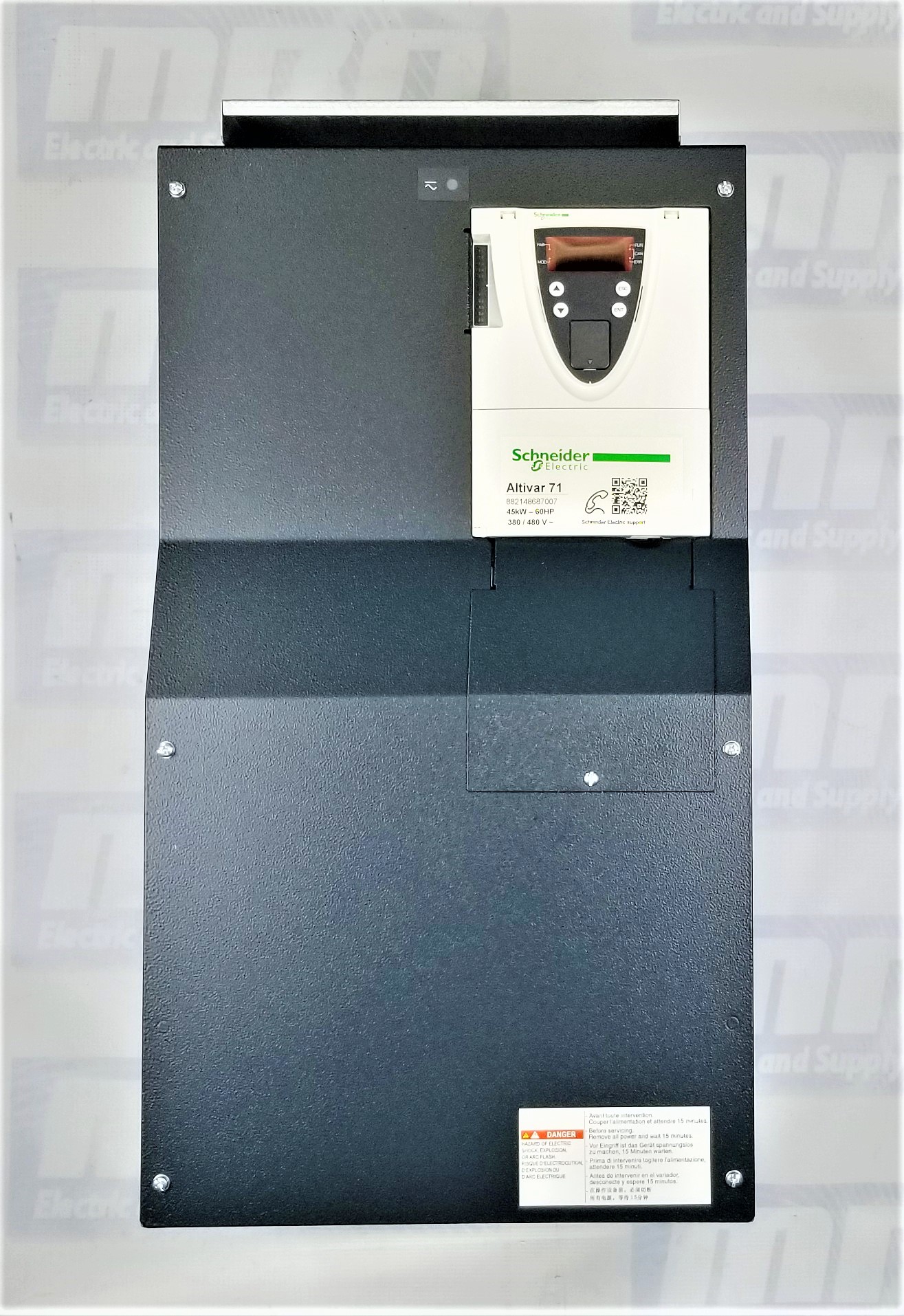

ALTIVAR 71 ATV71 VARIABLE SPEED DRIVE 455 KW 60 HP 480 V EMC FILTER
1 in stock
Ships Today
2 Year warranty
| Part Number | ATV71HD45N4 |
| Manufacturer | Schneider Electric |
| Type | AC Drives |
| Warranty | 2 Year |
| Range of product | Altivar 71 |
| 200 m unshielded cable | |
| 85 A for 480 V 3 phases 45 kW / 60 hp | |
| 94 A at 2.5 kHz 380 V 3 phases 45 kW / 60 hp | |
| 155 A for 2 s 3 phases 45 kW / 60 hp | |
| 2.5...16 kHz with derating factor | |
| Voltage/frequency ratio (2 or 5 points) |
| ENA (Energy adaptation) system for unbalanced loads | |
| Sensorless flux vector control (SFVC) (voltage or current vector) | |
| Product or component type | Variable speed drive |
| Product specific application | Complex, high-power machines |
| Component name | ATV71 |
| Motor power kW | 45 kW, 3 phases at 380...480 V |
| Motor power hp | 60 hp, 3 phases at 380...480 V |
| Maximum motor cable length | 100 m shielded cable |
| Power supply voltage | 380...480 V - 15...10 % |
| Network number of phases | 3 phases |
| Line current | 104 A for 380 V 3 phases 45 kW / 60 hp |
| EMC filter | Integrated |
| Assembly style | With heat sink |
| Apparent power | 68.5 kVA at 380 V 3 phases 45 kW / 60 hp |
| Prospective line Isc | 22 kA for 3 phases |
| Nominal output current | 77 A at 2.5 kHz 460 V 3 phases 45 kW / 60 hp |
| Maximum transient current | 141 A for 60 s 3 phases 45 kW / 60 hp |
| Output frequency | 0.1…500 Hz |
| Nominal switching frequency | 2.5 kHz |
| Switching frequency | 1...16 kHz adjustable |
| Asynchronous motor control profile | Flux vector control (FVC) with sensor (current vector) |
| Type of polarization | No impedance for Modbus |
MRO Electric repairs CNCs, PLCs, Servo/Spindle Drives, Motors, Amplifiers, VFDs, HMIs, and more, most of which can be repaired in only 3-5 days.
MRO can restore your failed ATV71HD45N4 to remanufactured condition and save you up to 75% compared to buying new. We offer standard repair pricing to ensure you the best value for your repair.
Our certified technicians use rigorous testing procedures to ensure your parts are restored to fully functioning condition. Our team proudly stands behind all repairs by providing a minimum 2-year warranty.
Our technicians have vast experience with most manufacturers and models. In addition to this ATV71HD45N4 we also repair drives, motors, PLCs and more, so if you don’t see the model you need, please contact us.
If you are interested in getting credit for your faulty ATV71HD45N4, just let us know, and we can issue you an RMA to send it in as an exchange. Our exchange program provides you with savings and keeps us stocked for the next time you need anything.
Want it shipped today?
Ask about exchanging your faulty ATV71HD45N4 for credit when ordering from MRO Electric
The Schneider Electric ATV71HD45N4 is an advanced AC drive in the Altivar 71 range, designed for high-power and complex industrial applications. Focusing on reliability, versatility, and energy efficiency, this variable-speed drive offers exceptional control and performance for demanding machines and systems. The ATV71HD45N4 is ideal for managing motor speeds, providing enhanced functionality for machinery that requires precise control, even under challenging conditions.
The ATV71HD45N4 belongs to Schneider Electric’s Altivar 71 range, a well-known series of variable-speed drives renowned for their high performance and advanced features. This model supports motor power of 45 kW (60 horsepower) with a three-phase power supply ranging from 380 to 480 V. Designed for complex, high-power machines, it ensures optimal energy use while enhancing operational efficiency. The drive can operate with shielded and unshielded cables, supporting a maximum motor cable length of 100 meters when shielded and 200 meters when unshielded, providing installation flexibility.
The Schneider Electric ATV71HD45N4 delivers substantial power with its 85 A rating at 480 V and 94 A at 2.5 kHz at 380 V for three-phase 45 kW systems. With a line current of 104 A and an apparent power rating of 68.5 kVA at 380 V, this drive ensures robust performance for high-power applications. Additionally, it can handle a maximum transient current of 141 A for 60 seconds, further enhancing its ability to manage sudden power surges and load variations. Its built-in Energy Adaptation (ENA) system helps efficiently handle unbalanced loads, contributing to energy savings and improved system longevity.
One of the standout features of the ATV71HD45N4 is its sophisticated control system. It utilizes sensorless flux vector control (SFVC), which provides precise voltage and current vector management without additional sensors. This enhances control accuracy and improves the drive's overall efficiency. For applications requiring even more control precision, it supports asynchronous motor control with flux vector control (FVC), with a sensor for current vector measurement. This makes the drive suitable for various industrial environments where precision and adaptability are paramount.
The drive’s output frequency ranges from 0.1 to 500 Hz, and its switching frequency is adjustable between 1 to 16 kHz, allowing for fine-tuning to match specific application requirements. By default, it operates at a nominal switching frequency of 2.5 kHz, with options for derating when operating in higher ranges, providing flexibility in various industrial settings.
The Schneider Electric ATV71HD45N4 is engineered for durability and safety in demanding environments. It features IP20 protection, safeguarding it against touch and foreign objects. The unit integrates an EMC filter, which helps minimize electromagnetic interference, making it compliant with industrial standards. It is constructed with a heat sink assembly style, enhancing heat dissipation and ensuring reliable operation over extended periods.
Efficiency is a crucial feature of the ATV71HD45N4, with its ability to adapt to different motor types and loads while maintaining energy efficiency. The drive is compatible with Modbus communication, allowing seamless integration into automation systems. Additionally, it features no impedance for Modbus polarization, ensuring reliable data communication.
What is the rated power and voltage of the ATV71HD45N4?
The Schneider Electric ATV71HD45N4 is rated for 45 kW (60 hp) and operates within a voltage range of 380 to 480 V.
What type of applications is the ATV71HD45N4 suitable for?
This AC drive is designed for complex, high-power machines, making it ideal for various industrial applications requiring precise speed control.
What are the current ratings for the ATV71HD45N4?
The ATV71HD45N4 has a rated current of 85 A for 480 V and 94 A at 2.5 kHz for 380 V and can handle a maximum transient current of 141 A for 60 seconds.
What is the maximum motor cable length for this drive?
The maximum motor cable length is 100 meters for shielded cables and 200 meters for unshielded cables.
Does the ATV71HD45N4 have an EMC filter?
Yes, the ATV71HD45N4 has an integrated EMC filter to minimize electromagnetic interference and ensure compliance with industrial standards.
What kind of control features does this drive offer?
The ATV71HD45N4 utilizes sensorless flux vector control (SFVC) and supports asynchronous motor control with flux vector control (FVC) with a current vector sensor for enhanced control precision.
What is the output frequency range of the ATV71HD45N4?
The output frequency of the ATV71HD45N4 ranges from 0.1 to 500 Hz, providing flexibility for various application requirements.
What is the nominal switching frequency?
The nominal switching frequency is 2.5 kHz, and it can be adjusted between 1 and 16 kHz to accommodate different operational needs.
What type of protection does the ATV71HD45N4 have?
This drive has an IP20 rating, which protects it against touch and foreign object ingress, ensuring safe operation in industrial environments.
What warranty and shipping options are available?
MRO Electric and Supply offers a two-year warranty on the ATV71HD45N4, and all purchases include free shipping.
How does the ATV71HD45N4 enhance energy efficiency?
The drive features an Energy Adaptation (ENA) system to manage unbalanced loads efficiently and supports various voltage/frequency ratios to optimize energy consumption.
Can the ATV71HD45N4 be integrated into automation systems?
The ATV71HD45N4 supports Modbus communication, allowing easy integration into existing automation and control systems.
