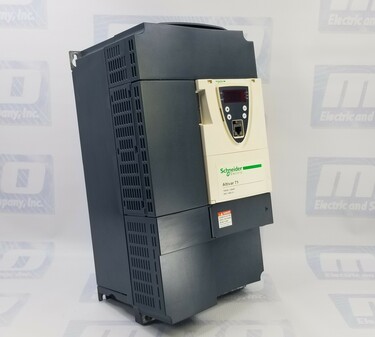

ALTIVAR 71 ATV71 VARIABLE SPEED DRIVE 15 KW 20 HP 480 VOLT EMC FILTER
| Part Number | ATV71HD15N4 |
| Manufacturer | Schneider Electric |
| Type | AC Drives |
| Warranty | 2 Year |
| Range of product | Altivar 71 |
| 100 m unshielded cable | |
| 48 A for 380 V 3 phases 15 kW / 20 hp | |
| 33 A at 4 kHz 380 V 3 phases 15 kW / 20 hp | |
| 54.5 A for 2 s 3 phases 15 kW / 20 hp | |
| 4...16 kHz with derating factor | |
| Sensorless flux vector control (SFVC) (voltage or current vector) |
| Flux vector control (FVC) with sensor (current vector) | |
| Voltage/frequency ratio (2 or 5 points) | |
| Product or component type | Variable speed drive |
| Product specific application | Complex, high-power machines |
| Component name | ATV71 |
| Motor power kW | 15 kW, 3 phases at 380...480 V |
| Motor power hp | 20 hp, 3 phases at 380...480 V |
| Maximum motor cable length | 50 m shielded cable |
| Power supply voltage | 380...480 V - 15...10 % |
| Network number of phases | 3 phases |
| Line current | 39 A for 480 V 3 phases 15 kW / 20 hp |
| EMC filter | Integrated |
| Assembly style | With heat sink |
| Apparent power | 31.6 kVA at 380 V 3 phases 15 kW / 20 hp |
| Prospective line Isc | 22 kA for 3 phases |
| Nominal output current | 27 A at 4 kHz 460 V 3 phases 15 kW / 20 hp |
| Maximum transient current | 49.5 A for 60 s 3 phases 15 kW / 20 hp |
| Output frequency | 0.1…599 Hz |
| Nominal switching frequency | 4 kHz |
| Switching frequency | 1...16 kHz adjustable |
| Asynchronous motor control profile | ENA (Energy adaptation) system for unbalanced loads |
| Type of polarization | No impedance for Modbus |
MRO Electric repairs CNCs, PLCs, Servo/Spindle Drives, Motors, Amplifiers, VFDs, HMIs, and more, most of which can be repaired in only 3-5 days.
MRO can restore your failed ATV71HD15N4 to remanufactured condition and save you up to 75% compared to buying new. We offer standard repair pricing to ensure you the best value for your repair.
Our certified technicians use rigorous testing procedures to ensure your parts are restored to fully functioning condition. Our team proudly stands behind all repairs by providing a minimum 2-year warranty.
Our technicians have vast experience with most manufacturers and models. In addition to this ATV71HD15N4 we also repair drives, motors, PLCs and more, so if you don’t see the model you need, please contact us.
If you are interested in getting credit for your faulty ATV71HD15N4, just let us know, and we can issue you an RMA to send it in as an exchange. Our exchange program provides you with savings and keeps us stocked for the next time you need anything.
Want it shipped today?
Ask about exchanging your faulty ATV71HD15N4 for credit when ordering from MRO Electric
The Schneider Electric ATV71HD15N4 is a high-performance variable speed drive, part of the Altivar 71 range, specifically designed to handle complex, high-power machine applications. This robust AC drive is tailored to provide optimal motor control, energy efficiency, and reliability for industrial environments requiring precise performance and versatility. With free shipping and a two-year MRO Electric and Supply warranty, the ATV71HD15N4 offers both convenience and peace of mind for businesses looking for long-term, dependable solutions.
The ATV71HD15N4 boasts impressive specifications, including a motor power rating of 15 kW (20 hp) for 3-phase systems operating between 380 and 480 V. It accommodates both shielded and unshielded motor cables, with maximum lengths of 50 m and 100 m, respectively. The variable speed drive provides a nominal output current of 27 A at 4 kHz for a 460 V 3-phase system. It can handle a maximum transient current of 49.5 A for 60 seconds, ensuring reliable operation during demanding tasks.
The device supports a wide output frequency range of 0.1 to 599 Hz and features an adjustable switching frequency between 1 and 16 kHz, with a nominal switching frequency of 4 kHz. Its control profiles include sensorless flux vector control (SFVC) and flux vector control (FVC) with a sensor, offering flexibility for various motor control needs. An integrated EMC filter and heat sink assembly style ensures the drive meets strict electromagnetic compatibility standards while maintaining optimal operating temperatures.
Ideal for complex, high-power machinery, the ATV71HD15N4 excels in applications requiring dynamic performance and precise control. The device's ENA (Energy adaptation) system effectively handles unbalanced loads, while the voltage/frequency ratio options (2 or 5 points) provide adaptability to different motor types. This drive easily supports demanding industrial tasks with an apparent power of 31.6 kVA at 380 V and a line current of 39 A at 480 V.
One of the key benefits of the ATV71HD15N4 is its durability and ability to withstand harsh conditions. Its prospective line Isc rating of 22 kA for 3-phase systems ensures safety and protection against short circuits. Additionally, the drive's capability to operate with a 4...16 kHz derating factor provides flexibility for various applications.
What is the primary application of the Schneider Electric ATV71HD15N4?
It is designed for complex, high-power machinery requiring precise speed and torque control.
What motor power does the ATV71HD15N4 support?
It supports a motor power of 15 kW (20 hp) for 3-phase systems between 380 and 480 V.
Does the ATV71HD15N4 include an EMC filter?
It has an integrated EMC filter to ensure compliance with electromagnetic compatibility standards.
What is the maximum length for motor cables?
The maximum motor cable length is 50 m for shielded and 100 m for unshielded cables.
Can the switching frequency be adjusted?
The switching frequency is adjustable from 1 to 16 kHz, with a nominal setting of 4 kHz.
What type of motor control profiles are available?
It offers sensorless flux vector control (SFVC) and flux vector control (FVC) with a sensor.
How does the drive handle unbalanced loads?
The ENA system adapts energy usage to manage unbalanced loads efficiently.
What safety features are included?
It has a prospective line Isc rating of 22 kA, offering protection against short circuits.
What is the warranty period for this product?
The drive comes with a two-year warranty from MRO Electric and Supply.
Is free shipping available for the ATV71HD15N4?
Yes, free shipping is included with the purchase of this product.
The Schneider Electric ATV71HD15N4 is a versatile, durable, and high-performance solution for industrial applications. It provides reliable operation, enhanced motor control, and long-term cost efficiency.
