Schneider Electric ATV630D22N4

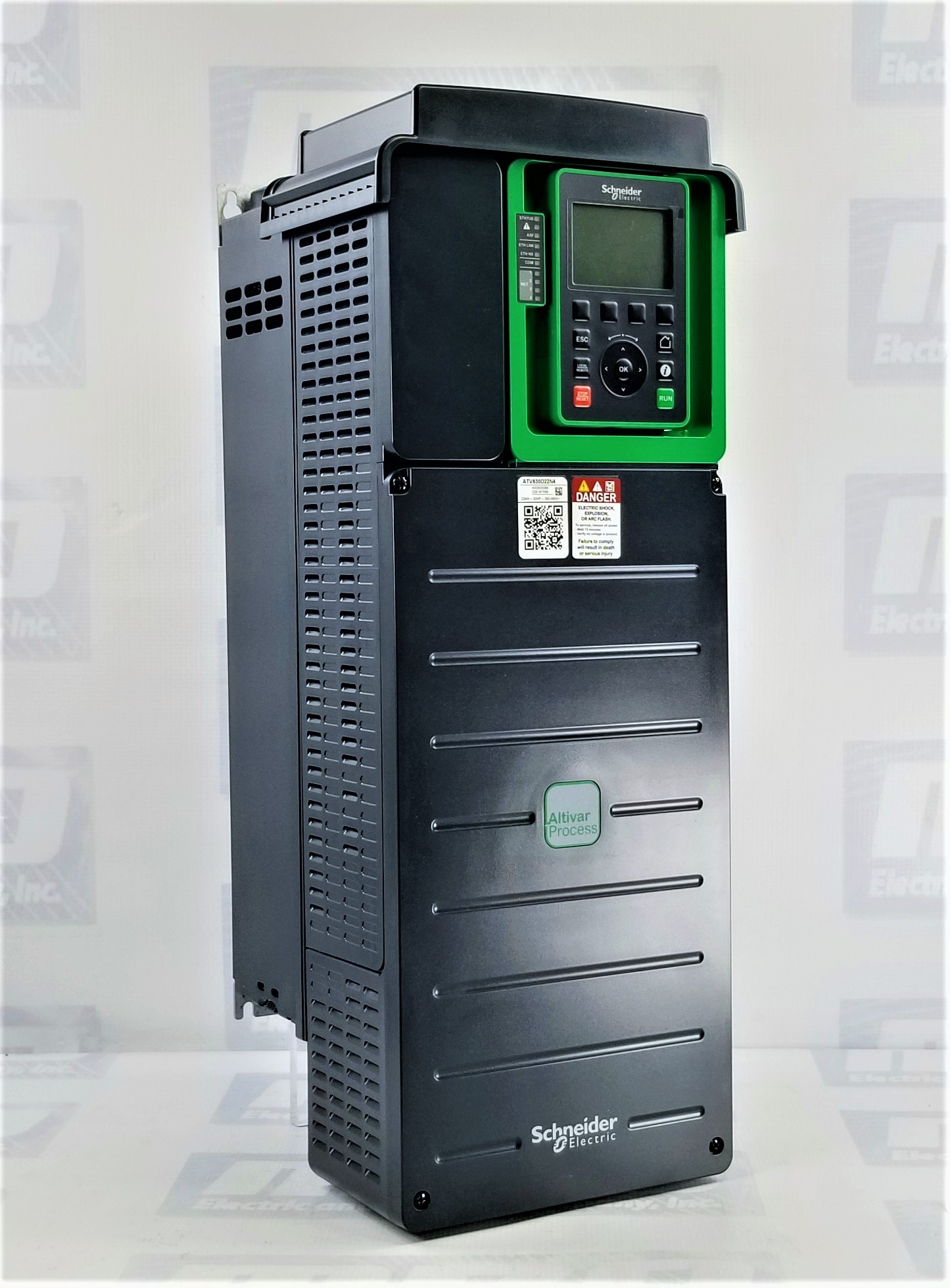

Schneider Electric ATV630D22N4 AC Drive: A Comprehensive Overview

The Schneider Electric ATV630D22N4 is a versatile and robust AC drive belonging to the renowned ATV600 range. It is designed to meet the rigorous demands of various industrial applications, offering precise control and energy efficiency. Whether you're managing processes in utilities or other sectors, the ATV630D22N4 provides the performance and reliability you need for your operations.

Versatile Applications

The ATV630D22N4 is engineered for various applications, particularly within process and utility environments. It is a standard version variable speed drive capable of controlling both asynchronous and synchronous motors. This flexibility makes it an ideal choice for applications that require varying motor speeds, enhancing process efficiency and energy savings.

Advanced Motor Control

The Schneider Electric ATV630D22N4 offers optimized motor control features that cater to different torque requirements. It supports optimized torque mode, constant torque, and variable torque settings, ensuring that the drive can adapt to the specific demands of your application. This capability is crucial in maintaining smooth operation and prolonging the lifespan of your motors.

Integrated EMC Filter

One of the standout features of the ATV630D22N4 is its integrated EMC (Electromagnetic Compatibility) filter. This filter is designed to conform to the stringent EN/IEC 61800-3 standards, providing category C2 and C3 protection levels with cable lengths of up to 50 meters and 150 meters, respectively. This ensures that the drive operates within safe electromagnetic levels, reducing the risk of interference with other equipment and maintaining compliance with international standards.

Robust Protection and Durability

The ATV630D22N4 is built to withstand harsh operating conditions. It features an IP21 protection rating conforming to IEC 61800-5-1 and IEC 60529 standards. This level of protection ensures that the drive is shielded from dust and water ingress, making it suitable for various industrial environments. Additionally, it conforms to UL type 1 standards under UL 508C, further ensuring its reliability and safety.

Cooling and Thermal Management

Efficient cooling is critical for maintaining the performance and longevity of AC drives. The ATV630D22N4 employs a forced convection cooling system, which effectively dissipates heat, ensuring that the drive operates within its optimal temperature range. This feature is essential in heavy-duty applications where the drive is subjected to continuous and intense use.

Electrical Specifications

The ATV630D22N4 operates within a supply voltage range of 380 to 480 volts, with a supply frequency of 50 to 60 Hz. It is designed to handle a prospective line short-circuit current (Isc) of up to 50 kA, demonstrating its capability to manage high fault currents. The drive's line current varies depending on the operating mode, ranging from 29.9 A to 39.6 A across normal and heavy-duty settings. Its output frequency ranges from 0.1 to 500 Hz, allowing precise speed control.

Communication and Interface

The ATV630D22N4 is equipped with advanced communication capabilities for seamless integration into modern industrial networks. It supports Modbus TCP Ethernet and Modbus serial communication protocols, enabling easy connectivity and data exchange with other devices and systems. The drive also features discrete input logic with 16 preset speeds, providing flexibility in control and automation.

Mounting and Installation

The ATV630D22N4 is designed for wall mounting, which simplifies installation and helps save space in control cabinets. Its three-phase design ensures stable and efficient operation, making it a reliable choice for various industrial applications.

Warranty and Shipping

When purchased from MRO Electric and Supply, the Schneider Electric ATV630D22N4 has a 2-year warranty, providing peace of mind and protection for your investment. Additionally, MRO Electric offers free shipping, making acquiring this high-quality AC drive convenient and cost-effective.

FAQs for Schneider Electric ATV630D22N4 AC Drive

1. What is the Schneider Electric ATV630D22N4 used for?

The ATV630D22N4 is an AC drive that controls the speed and torque of asynchronous and synchronous motors. It is commonly used in process and utility applications where precise motor control is essential for optimizing performance and energy efficiency.

2. What types of motors can the ATV630D22N4 control?

This AC drive can control both asynchronous (induction) and synchronous motors. This versatility makes it suitable for a wide range of industrial applications.

3. What protection features does the ATV630D22N4 offer?

The ATV630D22N4 has an IP21 protection rating, which protects against dust and vertical water drops. It conforms to IEC 61800-5-1 and IEC 60529 standards. Additionally, it meets UL type 1 protection standards according to UL 508C, ensuring reliable operation in various industrial environments.

4. What is the significance of the integrated EMC filter in the ATV630D22N4?

The integrated EMC filter in the ATV630D22N4 helps reduce electromagnetic interference, ensuring that the drive operates within safe electromagnetic levels. This filter meets the EN/IEC 61800-3 category C2 and C3 standards, allowing for secure and compliant operation with cable lengths up to 150 meters.

5. How does the cooling system of the ATV630D22N4 work?

The ATV630D22N4 uses a forced convection cooling system to effectively dissipate heat. This cooling method ensures that the drive maintains optimal operating temperatures, even under heavy-duty conditions, which helps prolong the device's lifespan.

6. What communication options are available with the ATV630D22N4?

The ATV630D22N4 supports Modbus TCP Ethernet and Modbus serial communication protocols. These options facilitate easy integration with industrial networks and allow efficient data exchange and control.

7. What are the input and output electrical specifications of the ATV630D22N4?

The drive operates within a supply voltage range of 380 to 480 volts and a supply frequency of 50 to 60 Hz. Its output frequency ranges from 0.1 to 500 Hz, allowing precise motor speed control. The line current varies between 29.9 A and 39.6 A depending on the operating mode (normal or heavy duty).

8. What is the purpose of the 16 preset speeds in the discrete input logic?

The 16 preset speeds in the discrete input logic provide flexibility in motor control. The user can easily switch between different predefined speeds, which is helpful in applications requiring quick motor speed adjustments based on process demands.

9. How is the ATV630D22N4 mounted?

The ATV630D22N4 is designed for wall mounting, which simplifies installation and helps save space in control cabinets. Its compact design and ease of installation make it a convenient choice for many industrial setups.

10. What warranty is provided with the ATV630D22N4?

The ATV630D22N4 comes with a 2-year warranty when purchased from MRO Electric and Supply. Free shipping is also available, adding to its value and convenience.
