Schneider Electric ATV630D18N4

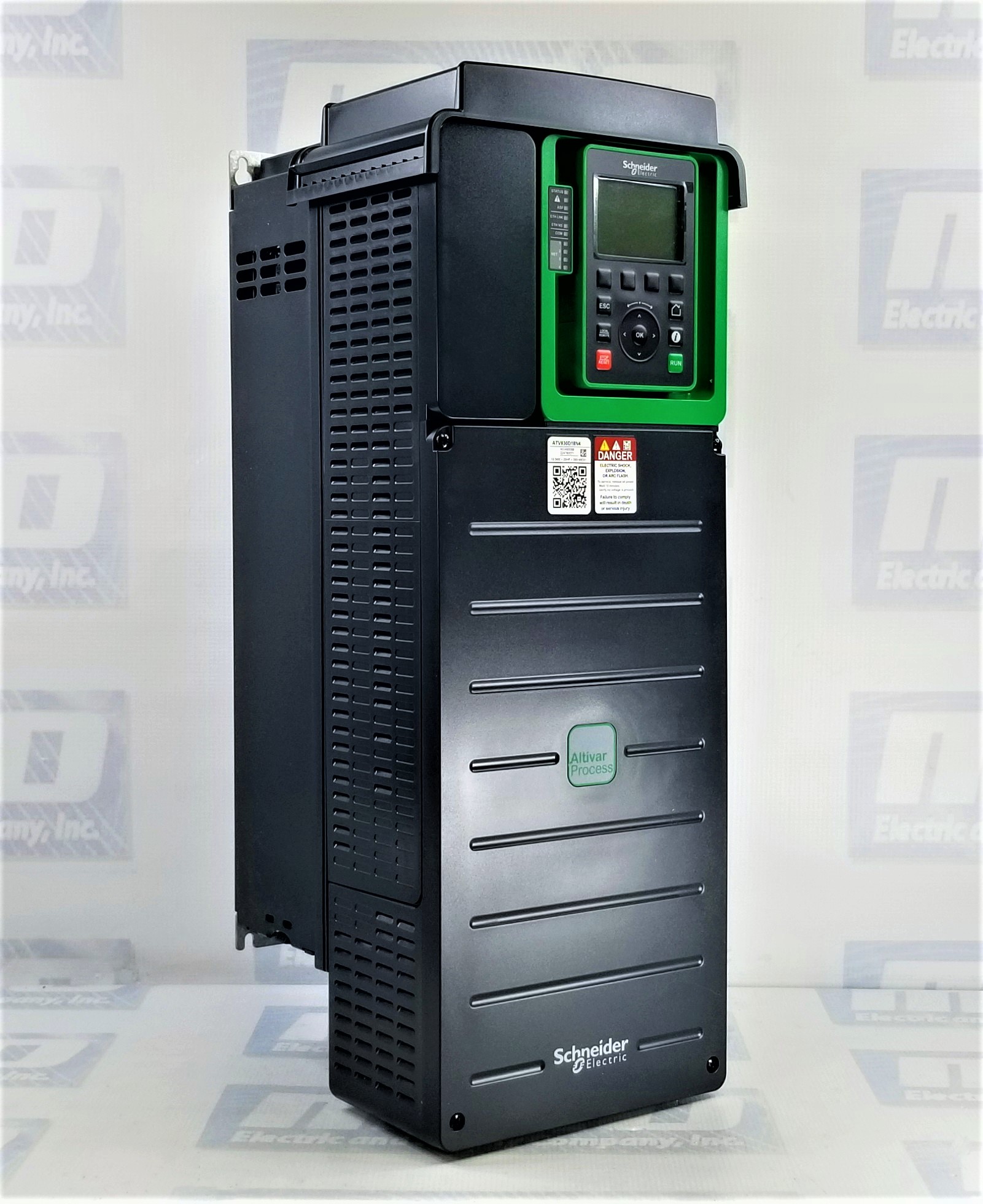

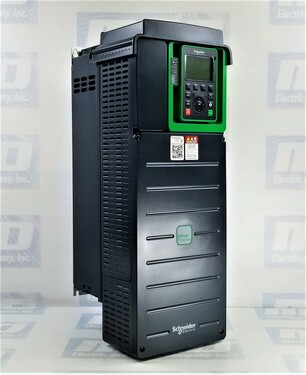

Schneider Electric ATV630D18N4 Variable Frequency Drive

The ATV630D18N4, a flagship offering from Schneider Electric's range of Variable Frequency Drives (VFDs), is a powerful and versatile solution designed to revolutionize industrial motor control. Built with advanced technology and precision engineering, this drive is perfectly suited for demanding applications across various industries. With its 480V AC input, impressive 40 hp maximum output power, NEMA 1 enclosure, no bypass functionality, and user-friendly LCD interface, the ATV630D18N4 empowers industries with unparalleled control and efficiency.

Unraveling the Power:

The heart of the ATV630D18N4 lies in its ability to deliver commanding power and torque for industrial processes. With its 480V AC input capability, this VFD effortlessly handles high-voltage applications, catering to the needs of industrial motors that require substantial power to perform optimally. Offering a remarkable 40 hp maximum output power, the ATV630D18N4 is a powerhouse capable of driving heavy-duty machines, pumps, fans, compressors, and various other equipment with ease, enhancing overall productivity and operational efficiency.

Robust and Secure Enclosure:

Engineered for durability and safety, the ATV630D18N4 features a NEMA 1 enclosure. This robust housing ensures that the drive is well-protected from dust, debris, and environmental elements, making it suitable for indoor installations. Additionally, the NEMA 1 enclosure enhances the drive's safety by preventing accidental contact with electrical components and safeguarding operators and maintenance personnel from potential hazards.

Seamless Operation with No Bypass:

The ATV630D18N4 comes without a bypass option, which streamlines its installation and operation. While bypass functionality is beneficial for scenarios where continuous motor operation is necessary in the event of drive failure, some applications may not require this feature, especially if there are redundant systems in place or if process interruptions are tolerable. The absence of a bypass reduces overall system complexity, simplifies wiring, and helps optimize costs for applications that do not necessitate this redundancy.

Intuitive LCD Interface:

Ease of operation and efficient control are key attributes of the ATV630D18N4, thanks to its user-friendly LCD interface. The drive's display provides a clear and comprehensive view of critical operational data, allowing operators to monitor parameters, status, and diagnostics at a glance. The intuitive menu navigation enables quick and straightforward configuration of drive settings, making commissioning and maintenance hassle-free tasks. With real-time feedback and error reporting, the LCD interface empowers operators to make informed decisions and troubleshoot issues promptly, reducing downtime and maximizing productivity.

Precise and Reliable Motor Control:

The ATV630D18N4 showcases Schneider Electric's expertise in precision motor control. This VFD implements advanced control algorithms, enabling precise speed regulation, torque management, and acceleration/deceleration profiles. The drive's ability to match motor speed with varying load requirements ensures optimal energy consumption, leading to significant energy savings in the long run. Moreover, its built-in motor protection features safeguard the connected motor from harmful conditions such as overcurrent, overvoltage, and overheating, prolonging motor life and minimizing maintenance costs.

Enhanced Connectivity and Integration:

To complement modern industrial automation systems, the ATV630D18N4 offers various communication options. Equipped with standard communication protocols like Modbus, Ethernet, and CANopen, this VFD seamlessly integrates into existing industrial networks, allowing for centralized control and monitoring. The drive's compatibility with Schneider Electric's ecosystem of automation products ensures smooth communication between different components, creating a comprehensive and interconnected solution for complex applications.

Frequently Asked Questions (FAQs) for Schneider Electric Part Number ATV630D18N4

What is the model number of this Schneider Electric AC drive?
The model number is ATV630D18N4, which is part of the ATV600 range of variable speed drives.

What type of product is the ATV630D18N4?
The ATV630D18N4 is an AC Drive, designed for variable speed control of motors in various industrial applications.

What is the warranty period for this AC drive?
This AC drive comes with a 2-year warranty from MRO Electric and Supply, providing assurance of its quality and reliability.

What is the motor power rating for the ATV630D18N4?
The motor power rating for the ATV630D18N4 is 18.5 kW (or 25 hp), making it suitable for a variety of motor-driven applications.

What is the supply voltage range for this drive?
The supply voltage range for the ATV630D18N4 is 380-480 V, allowing it to operate in various electrical environments.

What is the protection rating for this AC drive?
The ATV630D18N4 has a protection rating of IP21, which means it is protected against vertical falling water and against access to hazardous parts.

In what category is the ATV630D18N4 classified?
The ATV630D18N4 is classified as a Variable Speed Drive, which provides flexible motor speed control for optimized performance.

Can this drive be used for both indoor and outdoor applications?
While the ATV630D18N4 has an IP21 rating suitable for indoor applications, it is not recommended for outdoor use without additional protective measures due to its limited protection against environmental factors.

What types of motors is the ATV630D18N4 compatible with?
The ATV630D18N4 is compatible with various types of AC induction motors, making it versatile for multiple industrial applications.

Does the ATV630D18N4 come with any specific features?
Yes, the ATV630D18N4 is equipped with features such as advanced motor control algorithms, built-in safety functions, and options for communication protocols, enhancing its performance and integration into automation systems.

Is free shipping available for the ATV630D18N4?
Yes, MRO Electric and Supply offers free shipping for the ATV630D18N4, making it a cost-effective option for procurement.

What applications can the ATV630D18N4 be used for?
The ATV630D18N4 is suitable for various applications, including pumps, fans, conveyors, and other equipment that requires precise speed control and energy efficiency.

Schneider Electric products are manufactured in France and are designed for Material handling, packaging, and textile machines usage. They come with a 2-year warranty from MRO Electric. We also carry AC Drives from other manufacturers such as Modicon and ABB.
