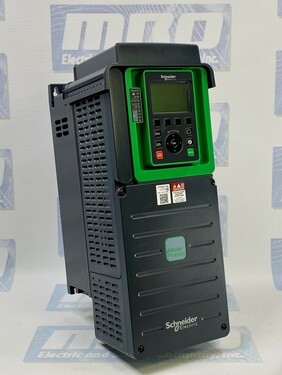

ALTIVAR ATV630 VARIABLE SPEED DRIVE
| Part Number | ATV630D11N4 |
| Manufacturer | Schneider Electric |
| Type | AC Drives |
| Warranty | 2 Year |
| Range | ATV630 |
| Product | Variable speed drive |
| Application | Process and utilities |
| Version | Standard |
| Destination | Asynchronous motors Synchronous motors |
| Supply Voltage | 380...480 V |
| Motor power kW | 11 kW (normal duty) 7.5 kW (heavy duty) |
| EMC filter | Integrated with 50 m conforming to EN/IEC 61800-3 category C2 Integrated with 150 m conforming to EN/IEC 61800-3 category C3 |
| Cooling | Forced convection |
| Line current | 19.8 A at 380 V (normal duty) 17 A at 480 V (normal duty) 14.1 A at 380 V (heavy duty) 12.5 A at 480 V (heavy duty) |
| Output frequency | 0.1…500 Hz |
| Switching frequency | 4 kHz |
| Supply frequency | 50...60 Hz - 5...5 % 380...480 V - 15...10 % |
| Prospective line Isc | 50 kA |
| Continuous output current | 23.5 A at 4 kHz for normal duty 16.5 A at 4 kHz for heavy duty |
| Safety | STO (safe torque off) SIL 3 |
| Discrete input logic | 16 preset speeds |
| Communication | Modbus TCP Ethernet Modbus serial |
| Mounting | Wall mount |
| Network phases | 3 Phase |
| Output voltage | <= power supply voltage |
| Interface | Ethernet 2-wire RS 485 |
MRO Electric repairs CNCs, PLCs, Servo/Spindle Drives, Motors, Amplifiers, VFDs, HMIs, and more, most of which can be repaired in only 3-5 days.
MRO can restore your failed ATV630D11N4 to remanufactured condition and save you up to 75% compared to buying new. We offer standard repair pricing to ensure you the best value for your repair.
Our certified technicians use rigorous testing procedures to ensure your parts are restored to fully functioning condition. Our team proudly stands behind all repairs by providing a minimum 2-year warranty.
Our technicians have vast experience with most manufacturers and models. In addition to this ATV630D11N4 we also repair drives, motors, PLCs and more, so if you don’t see the model you need, please contact us.
If you are interested in getting credit for your faulty ATV630D11N4, just let us know, and we can issue you an RMA to send it in as an exchange. Our exchange program provides you with savings and keeps us stocked for the next time you need anything.
Want it shipped tomorrow?
Ask about exchanging your faulty ATV630D11N4 for credit when ordering from MRO Electric
The Schneider Electric ATV630D11N4 is a robust and versatile variable speed drive (VSD) designed for process and utility applications. As part of the Altivar Process ATV630 range, this drive is built to enhance motor control and energy efficiency in industrial settings, providing superior performance for both asynchronous and synchronous motors. With its advanced features, integrated safety functions, and flexible communication options, the ATV630D11N4 is an ideal solution for demanding environments where precision and reliability are crucial.
The ATV630D11N4 variable speed drive is engineered to optimize motor performance and reduce energy consumption across various applications. It supports many motor types, including asynchronous and synchronous motors, making it highly adaptable to different industrial processes. For normal-duty applications, the drive provides a motor power of 11 kW, while in heavy-duty scenarios, it supports 7.5 kW, delivering reliable and efficient operation even under high loads. This flexibility enables operators to tailor the drive's performance to specific process requirements, improving operational efficiency and reducing energy costs.
The ATV630D11N4 features a forced convection cooling system that ensures the drive remains within optimal operating temperatures, even during extended use in demanding environments. This efficient cooling system helps extend the drive's lifespan and provides consistent performance, making it suitable for various industrial applications. Additionally, the drive has an integrated EMC filter that conforms to EN/IEC 61800-3 standards, providing electromagnetic compatibility with 50 m for Category C2 and 150 m for Category C3. This helps minimize interference with other electronic equipment, ensuring smooth and reliable operation in complex systems.
Designed for a three-phase power supply, the ATV630D11N4 operates within a voltage range of 380 to 480 V, offering flexibility for different industrial setups. The drive can handle supply frequencies between 50 and 60 Hz, with a variation of -5% to +5%, making it adaptable to various power conditions. In terms of line current, the drive delivers 19.8 A at 380 V for normal duty and 17 A at 480 V. At the same time, for heavy-duty applications, it operates with 14.1 A at 380 V and 12.5 A at 480 V. These capabilities ensure the drive can meet the requirements of various motor applications while maintaining energy efficiency.
The output frequency ranges from 0.1 to 500 Hz, providing precise control over motor speed, while the switching frequency is set at 4 kHz. The drive's continuous output current is 23.5 A for normal-duty applications and 16.5 A for heavy-duty scenarios, ensuring consistent power delivery to the motor.
One of the standout features of the ATV630D11N4 is its integrated Safe Torque Off (STO) function, which is rated at SIL 3 and ensures the highest level of safety for industrial applications. The STO function helps prevent accidental motor startups, enhancing the safety of personnel and equipment during maintenance or emergency shutdowns.
The drive also boasts advanced communication capabilities, supporting Modbus TCP Ethernet and Modbus serial communication. These communication protocols ensure seamless integration with automation systems and enable real-time monitoring and control of the drive. Additionally, the drive supports 16 preset speeds, allowing operators to quickly switch between different motor speeds for greater flexibility and efficiency.
The ATV630D11N4 is designed for easy installation and can be mounted on walls, making it suitable for various industrial environments. Its compact and robust design ensures it can be easily integrated into existing control systems without requiring extensive modifications. The drive is also rated to handle a prospective short-circuit current (Isc) of 50 kA, providing reliable protection in case of electrical faults.
The Schneider Electric ATV630D11N4 comes with a two-year warranty from MRO Electric and Supply, offering users peace of mind. Additionally, MRO Electric provides free shipping, making acquiring the drive for industrial applications convenient and cost-effective.
What is the power rating of the ATV630D11N4 drive?
The ATV630D11N4 drive offers two power ratings depending on the application. It delivers 11 kW for normal-duty operations and 7.5 kW for heavy-duty applications. This flexibility makes it suitable for a wide range of industrial processes.
What types of motors are compatible with the ATV630D11N4?
This variable-speed drive is compatible with both asynchronous and synchronous motors. It is versatile and can be used in different motor-driven systems, making it ideal for industrial automation.
What communication protocols does the ATV630D11N4 support?
The ATV630D11N4 supports multiple communication protocols, including Modbus TCP Ethernet and Modbus serial communication. This ensures seamless integration into various automation networks and enables real-time drive control and monitoring.
What are the voltage requirements for the ATV630D11N4?
The ATV630D11N4 operates on a three-phase power supply with a voltage range of 380 to 480 V. It accommodates supply frequencies from 50 to 60 Hz with a tolerance of ±5%, making it adaptable to various industrial power setups.
Does the ATV630D11N4 come with any safety features?
The ATV630D11N4 has a Safe Torque Off (STO) function rated at SIL 3. This safety feature prevents accidental motor startups during maintenance or emergencies, ensuring the safety of personnel and equipment.
What kind of cooling system is used in the ATV630D11N4?
The drive utilizes a forced convection cooling system, which helps regulate the unit's operating temperature. This cooling system is designed to maintain optimal performance and prevent overheating, even in demanding environments.
What is the continuous output current of the ATV630D11N4?
The continuous output current is 23.5 A at 4 kHz for normal-duty applications and 16.5 A at 4 kHz for heavy-duty use. These ratings ensure that the drive can maintain consistent power delivery for a wide range of motor loads.
How is the ATV630D11N4 mounted?
The ATV630D11N4 is designed for wall mounting, allowing for easy installation in various industrial settings. Its compact and robust design ensures it can be integrated into existing control systems with minimal hassle.
What kind of EMC filter is integrated into the ATV630D11N4?
The drive has an integrated EMC filter conforming to EN/IEC 61800-3 standards. This provides electromagnetic compatibility up to 50 meters for Category C2 and 150 meters for Category C3, ensuring smooth operation in electrically noisy environments.
What warranty is offered with the ATV630D11N4, and is shipping included?
The ATV630D11N4 comes with a two-year warranty from MRO Electric and Supply, providing peace of mind for customers. Additionally, MRO Electric offers free shipping for this product, making it convenient and cost-effective to acquire.
What is the range of output frequency for the ATV630D11N4?
The drive offers an output frequency range of 0.1 to 500 Hz, providing precise control over motor speed to meet the requirements of various applications.
