Schneider Electric ATV61HU22M3

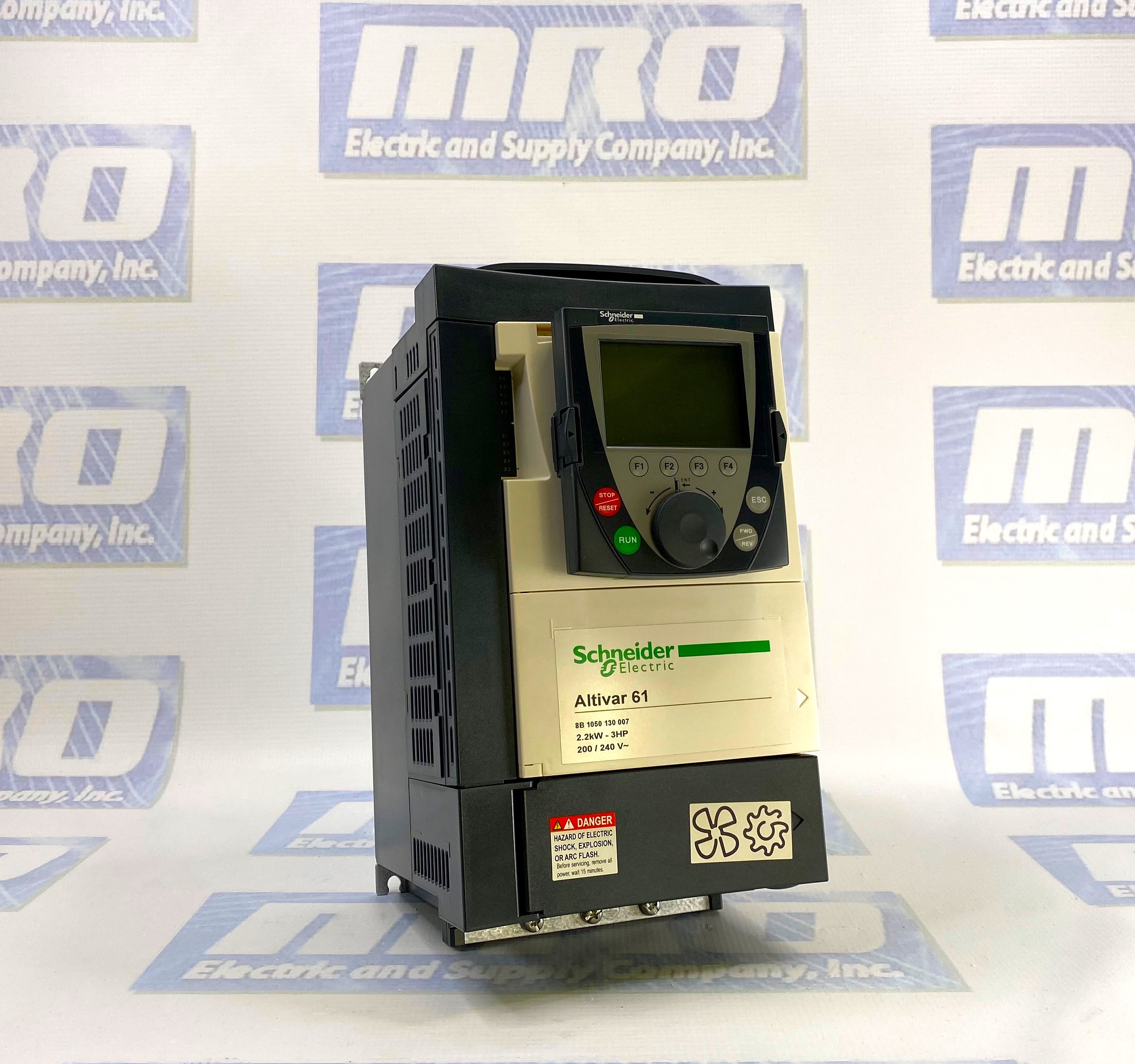

Schneider Electric ATV61HU22M3 AC Drive

The Schneider Electric ATV61HU22M3 is a versatile and reliable AC drive designed for industrial applications, mainly pumping and ventilation systems. This model belongs to the Altivar 61 range and is known for its energy efficiency, advanced motor control, and extensive communication options. The drive offers many features, making it an excellent choice for businesses seeking to optimize performance, minimize energy consumption, and ensure compatibility with various automation systems.

Motor Power and Phase Compatibility

The ATV61HU22M3 supports single-phase and three-phase power supply systems, providing flexibility in its usage. It operates at a 200 to 240 V voltage range, with a power rating of 2.2 kW (3 hp) for three-phase applications and 1.5 kW (2 hp) for single-phase systems. The drive delivers a line current of 15 A for 200 V three-phase systems and up to 18.2 A for single-phase setups, ensuring reliable performance even in demanding conditions. Additionally, the drive has a power rating of 5.3 kVA for three-phase configurations at 240 V.

Energy-Saving Features and Motor Control

One of the critical features of the ATV61HU22M3 is its energy-saving capabilities. It supports a voltage/frequency ratio with quadratic U/f control, optimizing energy use for applications such as pumps and fans. This drive also features flux vector control without sensors, allowing for precise motor control while improving efficiency. The switching frequency is adjustable, ranging from 1 to 16 kHz, with a nominal frequency of 12 kHz. Users can make adjustments to enhance the drive’s performance in different scenarios, though higher switching frequencies may require derating to ensure stability.

Communication and Expansion Options

The ATV61HU22M3 is designed to integrate seamlessly with various automation systems. It features built-in Modbus communication protocols and is compatible with a wide range of optional communication cards, including CANopen, BACnet, CC-Link, DeviceNet, EtherNet/IP, Fipio, LonWorks, METASYS N2, Modbus TCP, Profibus DP, and more. These options ensure the drive can communicate with other devices, controllers, and networks within industrial setups, enhancing overall operational efficiency.

Assembly and Protection

The drive has a built-in Class C2 EMC filter, ensuring compliance with electromagnetic compatibility standards. It also features a heat sink assembly style for effective heat dissipation, which helps maintain optimal performance during extended operations. The ATV61HU22M3 is built to withstand industrial environments, with a maximum prospective line current of 5 kA for three-phase systems, providing robust protection for the connected equipment.

Application Specificity

As part of the Altivar 61 range, the ATV61HU22M3 is specifically designed for applications like pumping and ventilation. It is engineered to handle varying load conditions, making it ideal for HVAC systems, water treatment plants, and other industrial processes that require constant motor control. With its high level of programmability and the ability to interface with multiple communication protocols, this drive is suitable for a wide range of industrial environments.

Warranty and Shipping

The ATV61HU22M3 AC drive comes with a 2-year warranty from MRO Electric and Supply, offering users peace of mind. Additionally, free shipping ensures a smooth purchasing process.

FAQs for Schneider Electric ATV61HU22M3 AC Drive

Q1: What is the power rating of the ATV61HU22M3?

A1: The ATV61HU22M3 has a power rating of 2.2 kW (3 hp) for three-phase applications at 200-240 V and 1.5 kW (2 hp) for single-phase configurations.

Q2: What is the primary application of this AC drive?

A2: The ATV61HU22M3 is designed for pumping and ventilation systems, making it suitable for HVAC applications and industrial motor control.

Q3: Can this drive be used in single-phase and three-phase systems?

A3: The ATV61HU22M3 is compatible with single-phase and three-phase systems, offering flexibility in different installation setups.

Q4: What communication protocols does the drive support?

A4: The drive supports Modbus by default and can be expanded to include other protocols, such as CANopen, BACnet, EtherNet/IP, and Profibus DP, through optional communication cards.

Q5: Does the drive have any energy-saving features?

A5: The ATV61HU22M3 supports an energy-saving quadratic U/f control, which optimizes energy consumption for applications like pumps and fans.

Q6: What is the switching frequency range of the drive?

A6: The drive's switching frequency is adjustable from 1 to 16 kHz, with a nominal frequency of 12 kHz.
