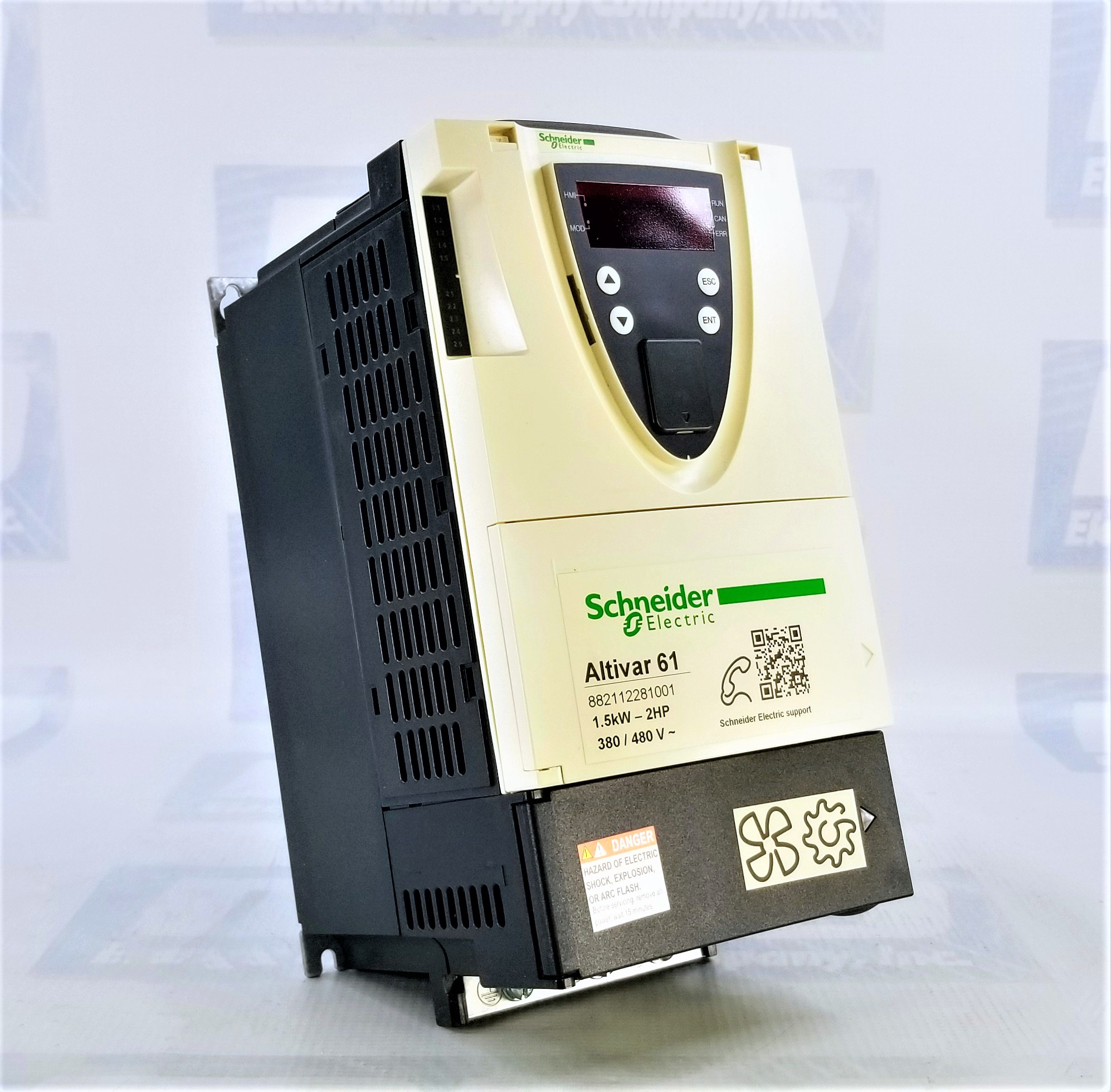

TELEMECANIQUE ALTIVAR 61 3-PHASE 1.5 KW 500 VOLT
Part Number | ATV61HU15N4 |
Manufacturer | Schneider Electric |
Type | AC Drives |
Warranty | 2 Year |
Range of product | Altivar 61 |
5.8 A for 380 V 3 phases 1.5 kW / 2 hp | |
12...16 kHz with derating factor | |
Voltage/frequency ratio, 2 points | |
Voltage/frequency ratio - Energy Saving, quadratic U/f | |
Voltage/frequency ratio, 5 points | |
CANopen | |
Communication card for BACnet | |
Communication card for CC-Link | |
Controller inside programmable card | |
Communication card for DeviceNet | |
Communication card for EtherNet/IP |
Communication card for Fipio | |
I/O extension card | |
Communication card for Interbus-S | |
Communication card for LonWorks | |
Communication card for METASYS N2 | |
Communication card for Modbus Plus | |
Communication card for Modbus TCP | |
Communication card for Modbus/Uni-Telway | |
Multi-pump card | |
Communication card for Profibus DP | |
Communication card for Profibus DP V1 | |
Product or component type | Variable speed drive |
Product specific application | Pumping and ventilation machine |
Component name | ATV61 |
Motor power kW | 1.5 kW, 3 phases at 380...480 V |
Motor power hp | 2 hp, 3 phases at 380...480 V |
Power supply voltage | 380...480 V - 15...10 % |
Supply number of phases | 3 phases |
Line current | 5.3 A for 480 V 3 phases 1.5 kW / 2 hp |
EMC filter | Level 3 EMC filter |
Assembly style | With heat sink |
Apparent power | 3.8 kVA at 380 V 3 phases 1.5 kW / 2 hp |
Maximum prospective line Isc | 5 kA for 3 phases |
Maximum transient current | 4.9 A for 60 s, 3 phases |
Nominal switching frequency | 12 kHz |
Switching frequency | 1...16 kHz adjustable |
Asynchronous motor control | Flux vector control without sensor, standard |
Synchronous motor control profile | Vector control without sensor, standard |
Communication port protocol | Modbus |
Type of polarization | No impedance for Modbus |
Option card | Communication card for APOGEE FLN |
MRO Electric repairs CNCs, PLCs, Servo/Spindle Drives, Motors, Amplifiers, VFDs, HMIs, and more, most of which can be repaired in only 3-5 days.
MRO can restore your failed ATV61HU15N4 to remanufactured condition and save you up to 75% compared to buying new. We offer standard repair pricing to ensure you the best value for your repair.
Our certified technicians use rigorous testing procedures to ensure your parts are restored to fully functioning condition. Our team proudly stands behind all repairs by providing a minimum 2-year warranty.
Our technicians have vast experience with most manufacturers and models. In addition to this ATV61HU15N4 we also repair drives, motors, PLCs and more, so if you don’t see the model you need, please contact us.
If you are interested in getting credit for your faulty ATV61HU15N4, just let us know, and we can issue you an RMA to send it in as an exchange. Our exchange program provides you with savings and keeps us stocked for the next time you need anything.
Want it shipped tomorrow?
Ask about exchanging your faulty ATV61HU15N4 for credit when ordering from MRO Electric
The Altivar 61 ATV61HU15N4 is a versatile variable-speed drive designed to provide exceptional control over motor-driven applications, specifically tailored for pumping and ventilation machines. Engineered by Schneider Electric, this cutting-edge product falls under the Altivar 61 range and is well-suited for both asynchronous and synchronous motors. Its robust design and comprehensive features make it a reliable choice for a wide range of industrial applications.
Delivering a motor power of 1.5 kW with a three-phase voltage supply of 380 to 480 V, the ATV61HU15N4 ensures efficient operation within this voltage range. Its power supply includes three phases, with a line current of 5.3 A at 480 V and 5.8 A at 380 V. For enhanced electromagnetic compatibility (EMC), the drive incorporates a Level 3 EMC filter.
The ATV61HU15N4 boasts an array of control options, supporting both asynchronous and synchronous motor control profiles. The asynchronous motor control utilizes flux vector control without a sensor, employing voltage/frequency ratio control in two points, five points, and energy-saving quadratic U/f modes. For synchronous motors, vector control without a sensor is the standard mode.
Communication capabilities are a highlight of this drive. It supports various communication protocols, including Modbus and CANopen, and offers compatibility with several communication cards, such as APOGEE FLN, BACnet, CC-Link, DeviceNet, EtherNet/IP, Fipio, Interbus-S, METASYS N2, Modbus Plus, Modbus TCP, Modbus/Uni-Telway, Profibus DP, and Profibus DP V1.
The drive's built-in diagnostics and protection features ensure reliable operation and safeguard against various issues. It offers comprehensive protection against exceeding limit speed, input phase loss, input phase breaks, overcurrent, overheating, overvoltage on the DC bus, power removal, short circuits between motor phases, thermal protection, and more. Additionally, the drive offers a range of acceleration and deceleration ramp options for optimal control.
Installation and configuration are made easy with intuitive interfaces and connection options. The drive supports both analog and discrete input and output options, enabling customization according to application requirements. Its data format, transmission rate, and method of access for communication protocols are well-defined, simplifying integration into existing systems.
The Altivar 61 ATV61HU15N4 is designed to thrive in challenging industrial environments. With a high noise immunity level, dielectric strength, and compliance with electromagnetic compatibility standards, it ensures robust performance even in electrically demanding settings. Its various degrees of protection, from IP20 to IP54, make it suitable for different mounting conditions and environments.
Temperature variations pose no threat to the drive's accuracy and reliability. It provides accurate control over the motor's speed and torque, with adjustments that can be made according to specific requirements. Its compact and sturdy design, combined with its advanced control features, makes the ATV61HU15N4 an ideal choice for a wide range of applications in industries such as manufacturing, HVAC, water treatment, and more.
Q1: What is the primary application of the Schneider Electric ATV61HU15N4?
A1: The Schneider Electric ATV61HU15N4 is primarily designed for pumping and ventilation machine applications, making it suitable for industries requiring reliable motor speed control and energy efficiency.
Q2: What is the power rating of this AC drive?
A2: The ATV61HU15N4 has a motor power rating of 1.5 kW (kilowatts) or two hp (horsepower) and operates on a 3-phase power supply at 380 to 480 V.
Q3: What type of motor control does the ATV61HU15N4 support?
A3: This drive supports flux vector control without a sensor for asynchronous motors and vector control without a sensor for synchronous motors, allowing precise speed and torque control.
Q4: What are the communication options available for the ATV61HU15N4?
A4: The ATV61HU15N4 offers a wide range of communication card options, including CANopen, BACnet, CC-Link, DeviceNet, EtherNet/IP, Fipio, Interbus-S, LonWorks, Modbus, Profibus DP, and Modbus TCP. These options enhance compatibility with various industrial networks and systems.
Q5: What is the line current for this drive?
A5: The line current for the ATV61HU15N4 is 5.3 A at 480 V (3 phases, 1.5 kW / 2 hp) and 5.8 A for 380 V (3 phases, 1.5 kW / 2 hp).
Q6: Does the drive feature any energy-saving modes?
A6: Yes, the ATV61HU15N4 supports several voltage/frequency ratio modes, including Energy Saving with a quadratic U/f ratio, which optimizes energy usage for applications like pumps and fans.
Q7: What are the EMC filter specifications?
A7: The ATV61HU15N4 is equipped with a Level 3 EMC filter, which helps reduce electromagnetic interference and ensures compliance with industry standards.
Q8: What is the switching frequency range of this drive?
A8: The nominal switching frequency of the ATV61HU15N4 is 12 kHz, with an adjustable range of 1 to 16 kHz. Higher frequencies may involve a derating factor to ensure stable operation.
Q9: Can the ATV61HU15N4 be used with synchronous motors?
A9: Yes, the ATV61HU15N4 is compatible with synchronous motors using vector control without a sensor, providing versatile control options for different motor types.
Q10: Does the drive include any protection features?
A10: The ATV61HU15N4 includes built-in protection features, such as a maximum transient current capability of 4.9 A for 60 seconds, providing overload protection during peak demand.
Schneider Electric products are manufactured in France and are designed for Material handling, packaging, and textile machines usage. They come with a 2-year warranty from MRO Electric. We also carry AC Drives from other manufacturers such as Modicon and ABB.
In conclusion, the Altivar 61 ATV61HU15N4 is a high-performance variable speed drive designed to optimize the control of motor-driven applications, particularly those in pumping and ventilation machines. Its robust features, communication options, protection mechanisms, and adaptability to various environments make it a valuable asset for industries seeking precision control and energy efficiency in their operations.
