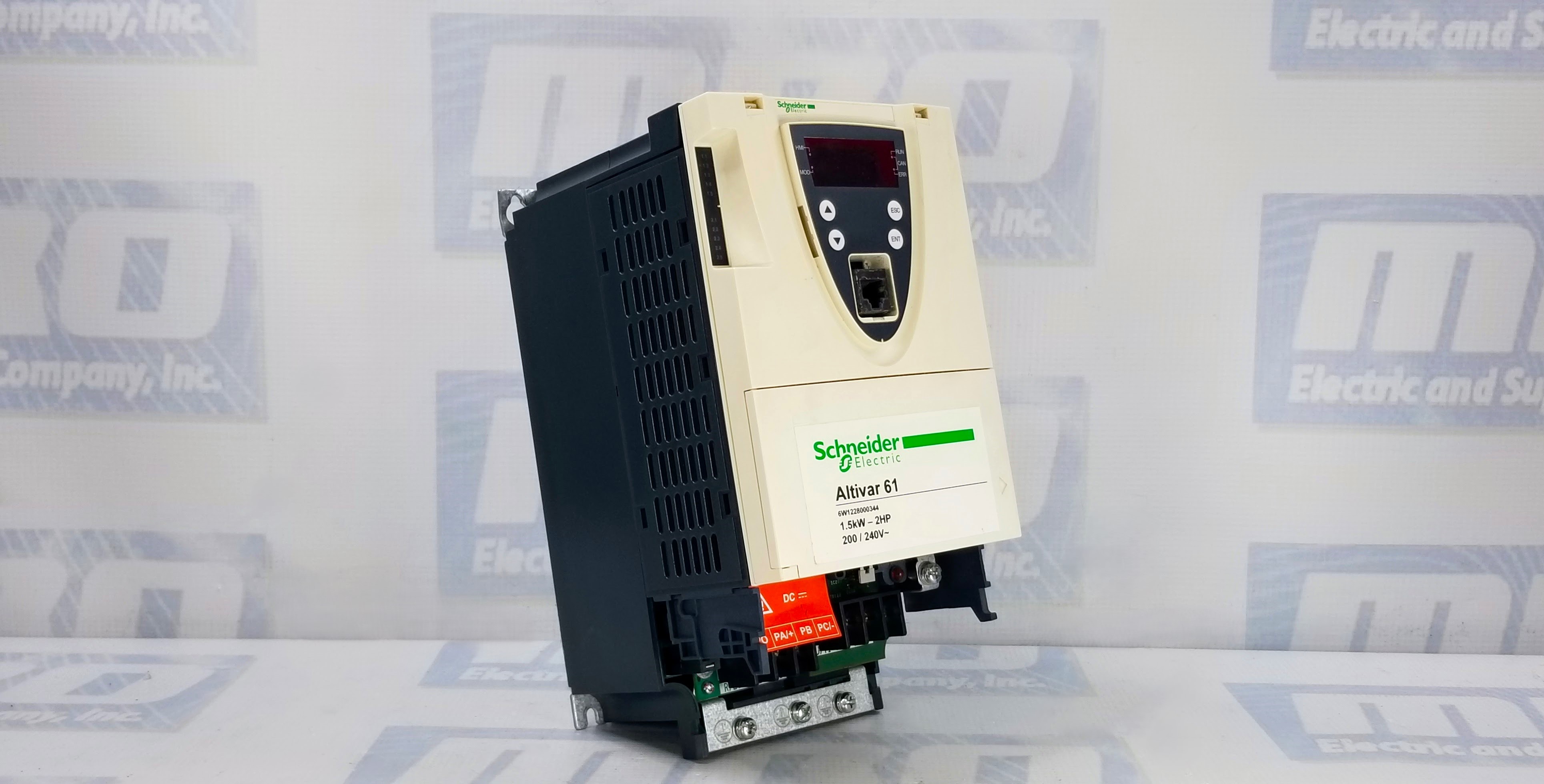

Schneider Electric ATV61HU15M3 Variable Speed Drive

The Schneider Electric ATV61HU15M3 is a versatile and efficient variable-speed drive from the Altivar 61 range, designed to optimize motor control for pumping, ventilation, and general industrial applications. Engineered with advanced features and robust performance capabilities, this drive ensures energy savings, precise motor operation, and seamless integration into modern automation systems. The ATV61HU15M3 is a reliable solution for industrial environments requiring high-performance motor management.

Key Features and Specifications

Product Overview

The ATV61HU15M3 variable speed drive is built for applications involving both asynchronous and synchronous motors. It is tailored for pumping and ventilation machines, making it ideal for HVAC, water treatment, and process automation industries. Backed by a two-year warranty and free shipping from MRO Electric and Supply, this drive offers exceptional value and reliability.

Power and Performance

The drive supports motors with power ratings of:

1.5 kW (2 hp) for three-phase systems at 200–240 V.

0.75 kW (1 hp) for single-phase systems at 200–240 V.

With a robust design, the drive delivers a line current of 11.3 A for 200 V (three-phase) systems and 9.9 A for 240 V (single-phase) systems. Its apparent power is 2.4 kVA for single-phase motors and four kVA for three-phase motors, ensuring optimal performance in demanding applications.

Advanced Motor Control

The ATV61HU15M3 offers multiple control options:

Flux vector control without a sensor for precision and energy efficiency.

Voltage/frequency ratio with quadratic U/f for energy-saving applications.

Customizable voltage/frequency ratio with two or 5-point adjustments.

Its nominal switching frequency of 12 kHz is adjustable between 1 and 16 kHz, allowing for noise reduction and system flexibility.

Integrated Communication and Expandability

The drive is equipped with a Modbus communication port and supports additional communication protocols through optional cards, including:

BACnet, DeviceNet, EtherNet/IP, LonWorks, Profibus DP, and more.

Specialized cards for multi-pump control, I/O extension, and programmable control (Controller Inside).

This wide range of communication options ensures seamless integration into existing automation networks.

Safety and Compliance

The ATV61HU15M3 includes an integrated Class C2 EMC filter, ensuring compliance with stringent electromagnetic compatibility standards. Its maximum prospective line Isc rating of 5 kA for three-phase systems and short-term transient current of 5.7 A enhance safety and operational reliability.

User-Friendly Design

The drive features a compact design with a heat sink assembly style for efficient thermal management. It supports input voltage ranges of 200–240 V (-15% to +10%), accommodating variations in power supply. Its polarity distribution without impedance for Modbus ensures straightforward setup and operation.

Frequently Asked Questions (FAQs)

1. What motor types are compatible with the ATV61HU15M3?

The drive supports both asynchronous and synchronous motors, offering flexibility for diverse industrial applications.

2. What communication protocols does the drive support?

The ATV61HU15M3 includes a Modbus communication port and is compatible with optional cards for protocols like BACnet, DeviceNet, Profibus DP, and EtherNet/IP.

3. What is the warranty period for the ATV61HU15M3?

This product comes with a two-year warranty from MRO Electric and Supply.

4. Can the drive handle energy-saving applications?

It supports a quadratic U/f voltage/frequency ratio, designed explicitly for energy-saving applications like pumping and ventilation.

5. What is the maximum switching frequency?

The switching frequency is adjustable between 1 and 16 kHz, with a nominal value of 12 kHz.

6. Is the drive equipped with an EMC filter?

It includes a Class C2 EMC filter, ensuring compliance with electromagnetic compatibility standards.

7. What are the power ratings of the drive?

The ATV61HU15M3 supports:

• 1.5 kW (2 hp) for three-phase systems at 200–240 V.
• 0.75 kW (1 hp) for single-phase systems at 200–240 V.

8. How does the drive handle heat management?

It features a heat sink assembly style, ensuring efficient thermal management during operation.

9. Is the drive suitable for multi-pump systems?

The drive supports optional multi-pump cards, making it ideal for systems requiring synchronized pump control.

The Schneider Electric ATV61HU15M3 delivers reliable performance, advanced motor control, and extensive connectivity, making it a preferred choice for industrial automation professionals.
