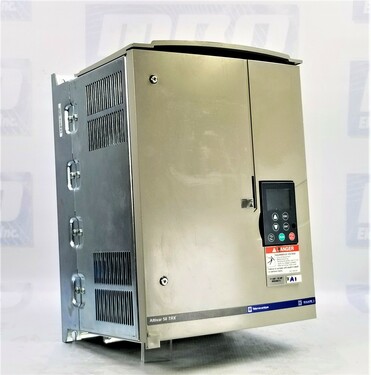

Schneider Electric ATV58HD16N4

The Schneider Electric ATV58HD16N4 is a specific model of the Altivar 58 series of variable speed drives (VSDs), also known as variable frequency drives (VFDs). These devices control the speed of electric motors in industrial applications, allowing for precise control over machinery and processes.

Here's an overview, description, specs, installation guide, similar products, and frequently asked questions (FAQs) about the Schneider Electric ATV58HD16N4:

Overview:

The ATV58HD16N4 is a high-performance VSD designed for demanding industrial applications. It provides precise control over motor speed, allowing for energy savings, improved process efficiency, and reduced wear and tear on machinery.

Description:

• Model: ATV58HD16N4
• Series: Altivar 58
• Manufacturer: Schneider Electric
• Application: Industrial motor control
• Power Rating: Typically rated for 15 kW (20 HP) motors
• Input Voltage: Varies depending on the specific model and configuration
• Control Method: Variable Frequency Drive (VFD)
• Communication Protocols: May support various industrial communication protocols for integration with control systems

Specifications:

• Rated Power: 15 kW (20 HP)
• Input Voltage: Varies (typically 380-500V AC)
• Output Voltage: Varies (matched to motor requirements)
• Frequency Range: 0-500 Hz
• Control Method: Scalar or vector control
• Enclosure: Typically IP20 or IP21 for indoor use, may vary
• Cooling Method: Convection or fan cooling, depending on the model
• Operating Temperature: Typically -10°C to +50°C
• Certifications: UL, CE, and other relevant industrial certifications

Installation:

Installation of the ATV58HD16N4 should be performed by qualified electricians or technicians familiar with VFDs and industrial motor control systems. It typically involves mounting the drive in a suitable location, wiring it to the power supply and motor according to the provided diagrams, configuring the control settings per the application requirements, and testing the system to ensure proper operation.

Similar Products:

• Schneider Electric Altivar series: ATV320, ATV630, ATV930
• ABB ACS550 series
• Siemens Micromaster series

FAQs:

What is the purpose of a variable frequency drive (VFD)?

A VFD controls the speed of an electric motor by varying the frequency and voltage of the power supplied to it. This allows for precise control over motor speed, which is essential in many industrial applications.

Can the ATV58HD16N4 be used with different types of motors?

Yes, the ATV58HD16N4 can typically be used with various induction motors, including standard squirrel cage motors and some synchronous motors.

How do I select the correct size VFD for my motor?

The VFD should be selected based on the motor's power rating, voltage, current requirements, and specific application requirements such as speed control range and environmental conditions.

What are some typical applications for the ATV58HD16N4?

The ATV58HD16N4 is suitable for various industrial applications, including pumps, fans, conveyors, and mixers. It is often used in manufacturing, HVAC, water/wastewater treatment, and other industries.

Schneider Electric products are manufactured in France and are designed for Material handling, packaging, and textile machines usage. They come with a 2-year warranty from MRO Electric. We also carry AC Drives from other manufacturers such as Modicon and ABB.

Contact Us Today For More Information About Schneider Electric Products

Check out the rest of our Schneider Electric product line. Whether it's using our online instant quote feature, giving us a call at (800) 691-8511, or emailing us at sales@mroelectric.com, we strive for customer satisfaction first. This means lower prices and better service for you. For more products like ATV58HD16N4, take a look at more from our AC Drives line. If your current unit has gone bad, take advantage of our Core Exchange program for the most inexpensive route. You can learn more about this program on our FAQ page here. We offer a repair service on all of our ATV58HD16N4 products that keep your downtime to a minimum. To stay up to date on manufacturer news, as well as access any of our datasheets, manuals, or other documentation, we suggest you take a look at our blog.
