Schneider Electric ATV32HD11N4

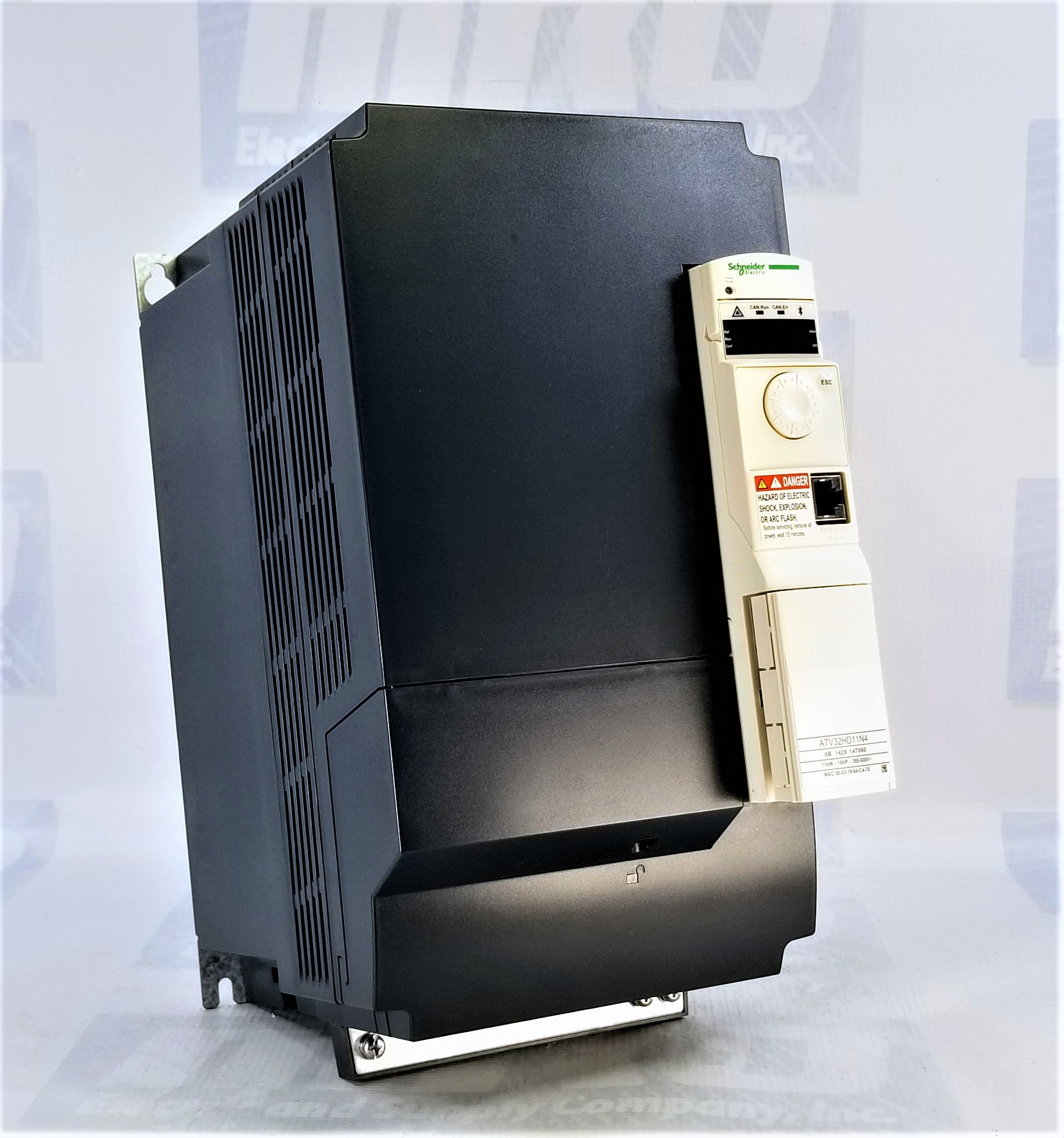

Exploring the ATV32HD11N4 Variable Speed Drive

Introduction to the ATV32HD11N4 Variable Speed Drive

The ATV32HD11N4 is a versatile variable speed drive designed by Schneider Electric as part of their Altivar 32 range. This drive is tailored for controlling both asynchronous and synchronous motors in a variety of industrial applications, including complex machinery. With its advanced features and robust construction, the ATV32HD11N4 offers precise speed control and efficient performance, making it an essential component in modern industrial setups.

Power and Performance

Equipped with a powerful 11 kW motor, the ATV32HD11N4 delivers reliable performance in demanding industrial environments. It operates on a three-phase supply voltage of 380-500 V, providing ample power to drive machinery and equipment efficiently. With a maximum line current of 25.6 A at 500 V and 36.6 A at 380 V, this variable speed drive ensures smooth operation even under heavy loads.

Advanced Control Capabilities

The ATV32HD11N4 offers a wide range of control profiles to suit different motor types and applications. It supports various control methods, including voltage/frequency ratio, flux vector control without a sensor, and synchronous motor control, enabling precise and flexible motor control. Additionally, its adjustable PID regulator and motor slip compensation feature ensure optimal performance across diverse operating conditions.

Comprehensive Protection Features

Safety is paramount in industrial environments, and the ATV32HD11N4 prioritizes protection against electrical faults and anomalies. With features such as input phase break protection, overcurrent protection, and thermal protection, this variable speed drive safeguards both the equipment and personnel from potential hazards. Its robust construction and adherence to international standards ensure reliable operation and peace of mind.

Installation and Connectivity

Designed for easy integration, the ATV32HD11N4 features a user-friendly interface and flexible connectivity options. With removable screw terminals and intuitive wiring diagrams, installation is streamlined, reducing downtime and installation costs. The drive also supports communication protocols like CANopen and Modbus, enabling seamless integration into industrial networks for enhanced control and monitoring.

Environmentally Friendly and Reliable

The ATV32HD11N4 is built to withstand harsh industrial environments while adhering to strict environmental standards. With an IP20 degree of protection and resistance to vibrations and shocks, this variable-speed drive ensures reliable operation in challenging conditions. Its compact design and efficient cooling system contribute to energy savings and reduced environmental impact, making it a sustainable choice for industrial applications.

Frequently Asked Questions (FAQ) about the ATV32HD11N4 Variable Speed Drive:

What is a variable speed drive, and how does it work?

A variable speed drive, also known as a variable frequency drive (VFD) or adjustable speed drive (ASD), is an electronic device used to control the speed and torque of an electric motor. It works by varying the frequency and voltage supplied to the motor, allowing precise control over its rotational speed and acceleration.

What are the main applications of the ATV32HD11N4 variable speed drive?

The ATV32HD11N4 is suitable for a wide range of applications, including pumps, fans, conveyors, compressors, and various types of machinery used in industrial automation. Its versatility makes it ideal for controlling both asynchronous and synchronous motors in complex industrial setups.

How does the ATV32HD11N4 ensure safety and protection for equipment and personnel?

The ATV32HD11N4 incorporates various protection features, including input phase break protection, overcurrent protection, thermal protection, and short-circuit protection. These features help prevent damage to the drive, motor, and connected equipment, ensuring safe operation in industrial environments.

Can the ATV32HD11N4 be integrated into existing industrial networks?

Yes, the ATV32HD11N4 supports communication protocols such as CANopen and Modbus, making it compatible with a wide range of industrial networks. This allows for seamless integration into existing automation systems, enabling centralized control and monitoring of multiple drives.

What environmental standards does the ATV32HD11N4 comply with?

The ATV32HD11N4 adheres to various environmental standards, including EN 55011 class A, EN 61800-3, and EN/IEC 61800-5-1. These standards ensure electromagnetic compatibility, protection against electrical disturbances, and compliance with environmental regulations.

Is the ATV32HD11N4 suitable for use in harsh industrial environments?

Yes, the ATV32HD11N4 is designed to withstand harsh industrial conditions, with an IP20 degree of protection against dust and solid objects. It also features resistance to vibrations and shocks, ensuring reliable operation in demanding environments.

How does the ATV32HD11N4 contribute to energy savings and efficiency?

The ATV32HD11N4 is equipped with advanced control algorithms and energy-saving features, such as flux vector control and voltage/frequency ratio control. These features optimize motor performance and reduce energy consumption, resulting in improved efficiency and cost savings for industrial users.

Can the ATV32HD11N4 be customized to suit specific application requirements?

Yes, the ATV32HD11N4 offers flexibility and customization options to meet specific application needs. It features adjustable acceleration and deceleration ramps, motor slip compensation, and various control profiles, allowing users to tailor the drive's performance to their specific requirements.

Schneider Electric products are manufactured in France and are designed for Material handling, packaging, and textile machines usage. They come with a 2-year warranty from MRO Electric. We also carry AC Drives from other manufacturers such as Modicon and ABB.

Contact Us Today For More Information About Schneider Electric Products

Check out the rest of our Schneider Electric product line. Whether it's using our online instant quote feature, giving us a call at (800) 691-8511, or emailing us at sales@mroelectric.com, we strive for customer satisfaction first. This means lower prices and better service for you. For more products like ATV32HD11N4, take a look at more from our AC Drives line. If your current unit has gone bad, take advantage of our Core Exchange program for the most inexpensive route. You can learn more about this program on our FAQ page here. We offer a repair service on all of our ATV32HD11N4 products that keep your downtime to a minimum. To stay up to date on manufacturer news, as well as access any of our datasheets, manuals, or other documentation, we suggest you take a look at our blog.
