Schneider Electric ATV320U75M3C

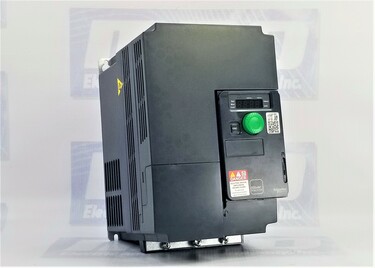

Schneider Electric ATV320U75M3C Altivar 320 Variable Speed Drive: Comprehensive Overview

The Schneider Electric ATV320U75M3C Altivar 320 is a high-performance variable speed drive that controls asynchronous and synchronous motors in various industrial applications. Known for its compact design and robust performance, this drive offers flexibility, reliability, and efficiency, making it ideal for manufacturing and material handling sectors. It delivers advanced motor control capabilities while ensuring compatibility with multiple motor types, offering a dependable solution for optimizing industrial processes.

Key Specifications and Features

The ATV320U75M3C belongs to Schneider Electric's Altivar 320 range of speed drives. It operates at a power rating of 7.5 kW and is designed to work with a 200-240 VAC, 3-phase power supply, which is a common standard in industrial environments. The drive supports both asynchronous and synchronous motors, providing versatility in application and compatibility with various motor technologies. The drive's rated frequency is 50/60 Hz, allowing it to adapt to different power supply standards globally, enhancing its suitability for use in diverse geographic locations.

Advanced Motor Control and Performance

Equipped with sophisticated control algorithms, the Altivar 320 delivers precise speed and torque control, optimizing motor performance and efficiency. This drive is ideal for applications such as conveyors, pumps, fans, and other machinery where maintaining consistent motor speed and performance is crucial. Its ability to handle variable and constant torque applications further enhances its versatility, making it suitable for various industrial processes. Additionally, the drive features integrated safety functions that comply with global safety standards, ensuring safe operation and minimizing the risk of accidents.

Compact Design and Easy Integration

One of the standout features of the Schneider Electric ATV320U75M3C is its compact design. The drive is engineered to occupy minimal space in control panels or enclosures, facilitating easy installation and integration into existing systems. This compact form factor does not compromise performance, as it still delivers powerful motor control capabilities while saving valuable space. The drive’s modular design allows for straightforward scalability, enabling users to expand or modify their systems easily.

Reliable and Efficient Operation

The ATV320U75M3C is designed to provide reliable and energy-efficient operation under demanding conditions. It is built to withstand harsh industrial environments, with robust construction that protects against dust, moisture, and vibration. This durability ensures a long service life, reducing downtime and maintenance costs. The drive's advanced power management features also help reduce energy consumption, contributing to lower operational costs and improved sustainability.

Warranty and Support

The Schneider Electric ATV320U75M3C has a 2-year warranty provided by MRO Electric and Supply, offering assurance of quality and reliability. The drive also includes free shipping, adding further value by reducing the overall cost for customers.

Compliance and Certifications

While specific certifications are not mentioned in the provided information, Schneider Electric drives, including the Altivar 320 series, typically meet global safety, performance, and environmental compliance standards. These standards ensure that the ATV320U75M3C can be safely used in a wide range of industrial applications and adhere to rigorous quality and environmental benchmarks.

Frequently Asked Questions (FAQ) for Schneider Electric ATV320U75M3C Altivar 320 Variable Speed Drive

Q1: What type of motors can the ATV320U75M3C control?

A1: The Schneider Electric ATV320U75M3C Altivar 320 is designed to control both asynchronous (induction) and synchronous motors. This flexibility allows it to be used in various applications that require different motor types.

Q2: What is the power rating of the ATV320U75M3C?

A2: The ATV320U75M3C has a power rating of 7.5 kW. It is suitable for applications requiring up to 7.5 kilowatts of power, approximately ten horsepower.

Q3: What voltage does the ATV320U75M3C require?

A3: The ATV320U75M3C operates on a 200-240 VAC, 3-phase power supply. This voltage range is standard in many industrial and commercial settings.

Q4: Is the ATV320U75M3C suitable for use in harsh environments?

A4: The ATV320U75M3C is designed to operate reliably in demanding industrial environments. Its robust construction provides protection against dust, moisture, and vibration, ensuring long-term performance even in tough conditions.

Q5: What safety features does this drive offer?

A5: The ATV320U75M3C includes integrated safety functions, such as Safe Torque Off (STO), which complies with international safety standards. These features help to minimize risks and enhance the safety of the equipment and operators.

Q6: Does the ATV320U75M3C come with a warranty?

A6: Yes, the ATV320U75M3C comes with a 2-year MRO Electric and Supply warranty.

Q7: What applications is the ATV320U75M3C best suited for?

A7: The ATV320U75M3C is ideal for conveyors, pumps, fans, material handling systems, and other machinery requiring variable speed control. It supports constant and variable torque applications, making it versatile for various industrial processes.

Q8: How compact is the ATV320U75M3C drive?

A8: The ATV320U75M3C is designed with a compact footprint, making it easy to install in tight spaces or within control panels. Its small size allows easy integration into new or existing systems without significant modifications.

Q9: Does this drive provide energy-saving features?

A9: The ATV320U75M3C is designed to enhance energy efficiency by optimizing motor performance. It includes features that reduce energy consumption, which helps lower operating costs and supports sustainability goals.

Q10: Is the ATV320U75M3C compatible with other Schneider Electric products?

A10: Yes, the ATV320U75M3C is compatible with a wide range of Schneider Electric products, including PLCs, HMI interfaces, and various sensors. This compatibility ensures seamless integration within Schneider Electric's ecosystem of industrial automation solutions.

Q11: Is there free shipping available for this product?

A11: Yes, the ATV320U75M3C is available with free shipping, which adds value to the purchase by reducing additional transportation costs.

Q12: Does the ATV320U75M3C comply with international standards?

A12: Yes, the Altivar 320 series, including the ATV320U75M3C, typically complies with international standards for safety, performance, and environmental regulations, ensuring it meets the requirements for use in global markets.
