Schneider Electric ATV320U15N4C

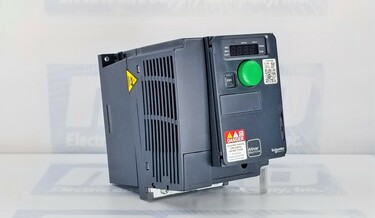

Schneider Electric ATV320U15N4C Variable Speed Drive

Overview

The Schneider Electric ATV320U15N4C is a high-performance variable speed drive from the Altivar Machine ATV320 range, specifically designed for complex machines. With a compact design, this versatile drive is ideal for various applications requiring precise motor control, such as conveyors, mixers, and packaging machinery. It supports asynchronous motor control and is equipped with advanced safety functions, making it a reliable choice for industrial environments.

Key Features

Compact and Versatile Design

The ATV320U15N4C features a compact, wall-mounted design that ensures easy installation even in space-constrained environments. Its robust build, IP20 protection rating, and integrated EMC filter (Class C2) make it suitable for challenging operating conditions.

Advanced Motor Control

This variable speed drive provides precise control for asynchronous motors with a power rating of 1.5 kW (2 HP) and a motor speed range of 1 to 50. It offers various control profiles, including voltage/frequency ratio and flux vector control without a sensor, ensuring smooth operation for diverse applications.

Broad Input and Output Compatibility

The drive operates with a three-phase supply voltage range of 380 to 500 V and supports a nominal output current of 4.1 A. Its maximum output frequency reaches 599 Hz, enabling a broad spectrum of motor speeds. The ATV320U15N4C includes three analog inputs, seven discrete inputs, three discrete outputs, and one analog output for comprehensive connectivity.

Communication and Integration

The ATV320U15N4C offers versatile communication options through integrated Modbus serial and CANopen protocols. Optional communication modules support EtherCAT, Profibus DP V1, PROFINET, Ethernet Powerlink, EtherNet/IP, and DeviceNet, facilitating seamless integration into various automation systems.

Enhanced Safety and Protection

The drive incorporates several safety functions, including Safe Torque Off (STO) and Safe Stop 1 (SS1), ensuring compliance with modern safety standards. It also features comprehensive protection mechanisms against overcurrent, short circuits, phase breaks, and overheating.

Energy Efficiency and Cooling

With an energy-efficient design, the ATV320U15N4C reduces operational costs while maintaining optimal performance. It features an integrated brake chopper and a cooling fan with a dissipation power of 56 W at a switching frequency of 4 kHz. The drive operates within ambient temperatures of -10°C to 50°C without derating.

Technical Specifications

• Product Range: Altivar Machine ATV320
• Power Rating: 1.5 kW (2 HP)
• Input Voltage: 380-500 V (3-phase)
• Nominal Output Current: 4.1 A
• Max Output Frequency: 599 Hz
• Protection: IP20, EMC filter Class C2
• Communication: Modbus, CANopen (standard), multiple optional modules
• Certifications: CE, ATEX, UL, CSA, EAC, RCM
• Safety Functions: STO, SS1
• Cooling Method: Internal fan cooling
• Warranty: 2 years from MRO Electric and Supply with free shipping

Frequently Asked Questions (FAQs)

What is the power rating of the Schneider ATV320U15N4C?

The ATV320U15N4C has a power rating of 1.5 kW (2 HP), suitable for various industrial motor control applications.

Which communication protocols are supported?

It supports Modbus and CANopen protocols, with expansion modules providing options for EtherCAT, Profibus DP V1, PROFINET, and others.

What safety features are included?

The drive includes Safe Torque Off (STO) and Safe Stop 1 (SS1) functions for enhanced operator safety.

Can it be used in harsh environments?

Yes, with an IP20 protection rating and an operating temperature range of -10°C to 50°C, it is suitable for various environments.

How is the ATV320U15N4C mounted?

It is designed for vertical wall mounting, providing installation flexibility.

What is the maximum output frequency?

The drive can achieve a maximum output frequency of 599 Hz, allowing for a wide range of motor speeds.

Does it include an integrated EMC filter?

The drive comes with a Class C2 EMC filter for improved electromagnetic compatibility.

What are the dimensions and weight of the drive?

The ATV320U15N4C measures 105 mm (width) x 142 mm (height) x 158 mm (depth) and weighs approximately 1.3 kg.

Is there a built-in braking function?

Yes, the drive includes an integrated brake chopper for enhanced deceleration control.

What warranty is provided?

MRO Electric and Supply offers a 2-year warranty with free shipping for the ATV320U15N4C.

This comprehensive overview and FAQ section provides all the essential details you need to understand the capabilities of the Schneider Electric ATV320U15N4C. Let us know if you’d like more information or assistance with a purchase!

Schneider Electric products are manufactured in France and are designed for Material handling, packaging, and textile machines usage. They come with a 2-year warranty from MRO Electric. We also carry AC Drives from other manufacturers such as Modicon and ABB.
