Schneider Electric ATV312H075N4

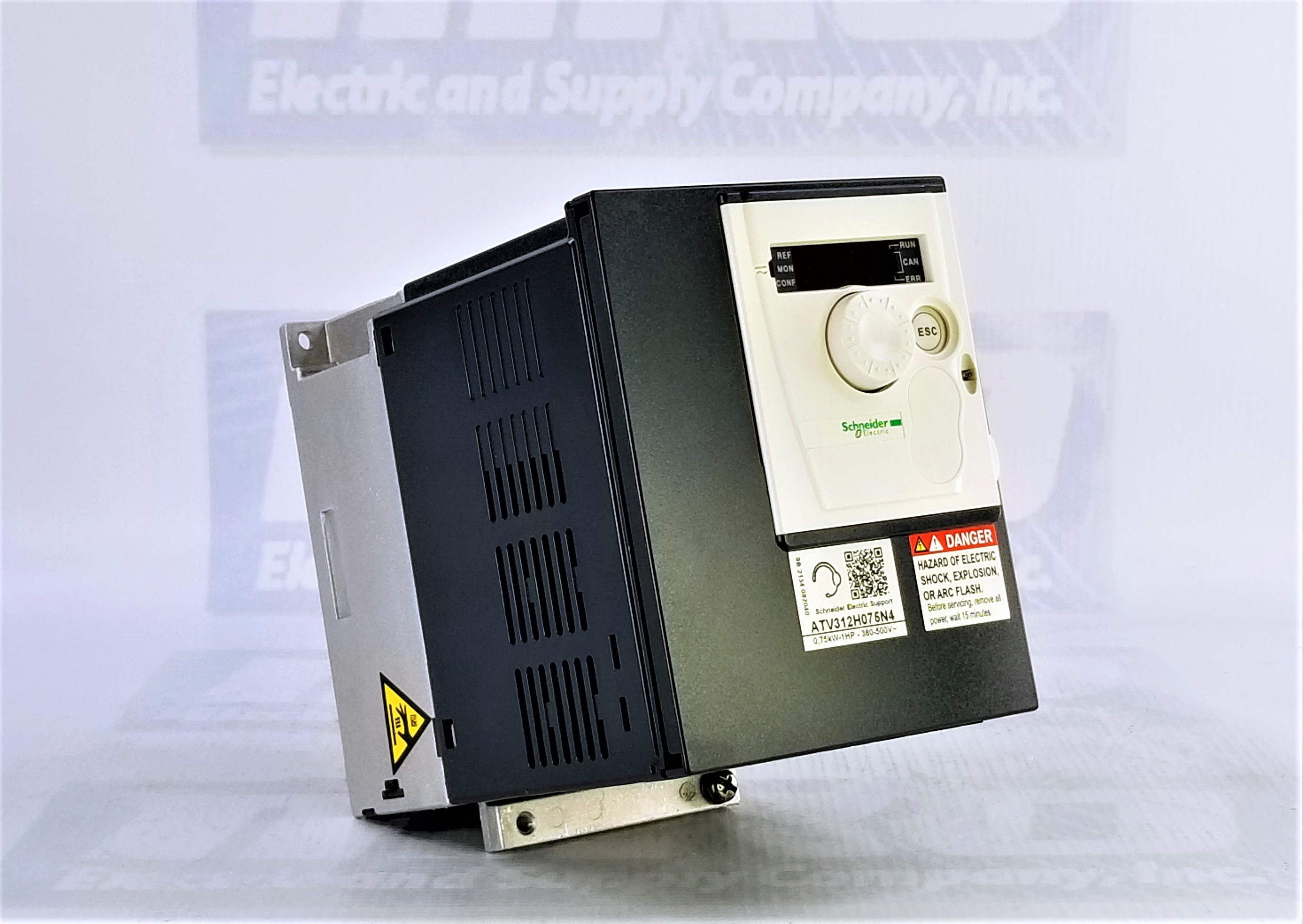

Schneider Electric ATV312H075N4 AC Drive

The Schneider Electric ATV312H075N4 is a highly reliable and efficient AC drive from the Altivar 312 series. It is designed for controlling the speed of asynchronous motors in a wide variety of industrial applications. This variable-speed drive is known for its robustness, flexibility, and user-friendly interface, making it an excellent choice for industrial automation and motor control systems.

Electrical Specifications

The ATV312H075N4 is built to operate within a wide range of input voltages, supporting 380-500 VAC on a three-phase supply. This broad input range allows the drive to be adaptable in various industrial environments and systems. Its output voltage reaches 200-240 V, providing efficient motor speed control and ensuring optimal performance. The drive is rated for 0.75 kW, or approximately one horsepower, making it suitable for small- to medium-sized motors commonly found in manufacturing and processing environments.

Versatile Applications

This variable-speed drive is designed to control asynchronous motors, making it ideal for various industrial applications. It can be used in conveyor systems, pumps, fans, and general automation tasks, offering precise control over motor speed and torque. The drive supports multiple motor control modes, including V/F control (voltage/frequency ratio control) and sensorless flux vector control, which ensures efficient operation, even in applications that require high starting torque or consistent speed regulation.

Performance and Control

The ATV312H075N4 delivers exceptional performance by allowing precise motor control and adjustment, improving energy efficiency, and reducing operational costs. The drive’s variable speed control enables operators to match motor speed with process requirements, leading to energy savings and prolonged equipment lifespan. Additionally, the Altivar 312 series is known for its ease of use, featuring a user-friendly interface that allows for quick setup and programming, even for users without extensive technical knowledge.

Built-in Communication Interfaces

One of the standout features of the ATV312H075N4 is its built-in support for industrial communication protocols such as Modbus and CANopen. These interfaces enable seamless integration into existing control systems and allow remote monitoring, diagnostics, and control. This feature is especially beneficial in automated systems, where real-time feedback and centralized control are essential for smooth operation.

Durability and Protection

The Schneider Electric ATV312H075N4 is designed to withstand the rigors of industrial environments. It has various protection features, including overload protection, overvoltage protection, undervoltage protection, short-circuit protection, and motor phase loss protection. These safety mechanisms ensure that the drive can operate reliably even under challenging conditions, reducing the risk of downtime and extending the motor's life.

Compact Design and Installation

With its compact size, the ATV312H075N4 can be easily installed in control panels or electrical enclosures without requiring significant space. Its robust design also ensures it can handle harsh environments with ease. The drive's simple wiring and setup process makes installation easy, reducing installation time and cost.

Warranty and Support

The ATV312H075N4 comes with a 2-year warranty from MRO Electric and Supply, providing buyers with peace of mind regarding product reliability and performance. Additionally, MRO Electric offers free shipping, making this drive an affordable and convenient option for industries looking to optimize their motor control systems.

Frequently Asked Questions (FAQs)

1. What type of motors can the ATV312H075N4 control?

The ATV312H075N4 is designed to control asynchronous motors and is ideal for use in various industrial applications, including pumps, fans, and conveyor systems.

2. What is the power rating of the ATV312H075N4?

The drive is rated at 0.75 kW, equivalent to approximately one horsepower, making it suitable for small—to medium-sized motors.

3. What is the input voltage range for this AC drive?

The ATV312H075N4 supports a three-phase input voltage range of 380-500 VAC, providing flexibility for various industrial power systems.

4. Does the ATV312H075N4 support communication protocols?

The drive has built-in support for Modbus and CANopen communication protocols, allowing it to integrate with industrial control systems for remote monitoring and control.

5. What type of protection features does the drive have?

The ATV312H075N4 has multiple protection features, including overload, overvoltage, Undervoltage, short-circuit, and motor phase loss protection, ensuring reliable operation in demanding environments.

6. How easy is it to install and set up this drive?

The drive is designed for easy installation with a compact design and simple wiring. Its user-friendly interface allows for quick and intuitive setup, reducing the time required for installation.

7. What is the warranty period for the ATV312H075N4?

The drive comes with a 2-year MRO Electric and Supply warranty, ensuring product reliability and support.

8. Is free shipping available for this product?

Free shipping is available when purchasing the ATV312H075N4 from MRO Electric and Supply.

9. What control methods does the drive support?

The ATV312H075N4 supports V/F control (voltage/frequency ratio control) and sensorless flux vector control, providing efficient and flexible motor control.

10. What is the output voltage of this drive?

The drive has an output voltage range of 0-240 V for controlling motor speed in various applications.
