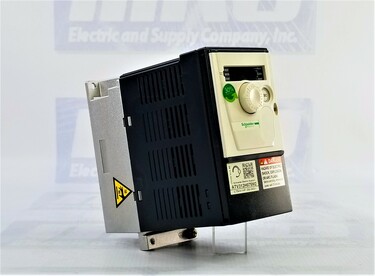

The Schneider Electric ATV312H075M2 is a variable-speed drive within the ATV 312 range, designed to offer precise and efficient control over motor-driven systems. With its specific technical details and advanced features, this drive is a reliable solution for a wide range of industrial applications.

Motor Control Precision:

Engineered to provide precise motor control, the ATV312H075M2 offers a motor power of 0.75 kW (1 hp) and supports a 1-phase supply at a voltage range of 170-264V. Its current rating of 4.8A ensures accurate and consistent motor operation, enabling optimal performance in various industrial settings.

Communication Flexibility:

The drive is equipped with advanced communication capabilities, supporting both Modbus and CANopen protocols. This ensures seamless integration and data exchange within larger automation systems, allowing for efficient control, monitoring, and management of motor-driven processes.

Integrated EMC Filter:

With an integrated EMC filter, the ATV312H075M2 minimizes electromagnetic interference and noise, contributing to a stable and reliable operation. This feature is essential for maintaining the integrity of surrounding electronic equipment and ensuring compliance with industry standards.

Protection and Safety:

The drive offers a comprehensive range of protective features, including safeguards against input phase breaks, line supply overvoltage, and undervoltage, motor phase breaks, overcurrent, overheating, short-circuit between motor phases, and thermal protection for the motor. These protective mechanisms ensure the safety and durability of both the drive and the connected motor.

Enhanced Motor Control Profiles:

The ATV312H075M2 comes with a factory-set constant torque motor control profile. It offers sensorless flux vector control with a PWM (Pulse Width Modulation) type motor control signal, allowing for precise adjustments and control over motor speed and torque.

Wide Output Frequency Range:

With an output frequency range of 0-500 Hz, the drive accommodates various speed requirements for different applications. The nominal switching frequency of 4 kHz (adjustable between 2-16 kHz) ensures efficient operation and control over motor speed.

Flexible Analogue Inputs and Outputs:

The drive features three analog inputs, AI1, AI2, and AI3, which are configurable for different voltage and current ranges. It also offers one analog output, AOC, with configurable current and voltage options.

Compact Design and Easy Installation:

With its compact design and heat sink assembly style, the ATV312H075M2 is easy to install and integrate into control cabinets or equipment enclosures. Its user-friendly design simplifies the installation process, ensuring minimal downtime during setup and configuration.

Advanced Connectivity and Interface:

The drive features a communication port protocol for Modbus and CANopen, offering convenient and effective connectivity options. The physical interface utilizes an RS485 multidrop serial link, enabling reliable data exchange and communication.

Environmental Durability:

Built to withstand challenging environments, the ATV312H075M2 operates within a temperature range of -10°C to 50°C without derating, making it suitable for various industrial settings. Additionally, its vibration and shock resistance ensures reliable performance even under demanding conditions.

FAQs for Schneider Electric ATV312H075M2 AC Drive

Q1: What is the Schneider Electric ATV312H075M2 used for?
A1: This model is a variable speed drive from the ATV312 range, designed for controlling the speed and torque of asynchronous motors in simple machine applications.

Q2: What is the motor power capacity of this AC drive?
A2: It is rated for motors up to 0.75 kW (1 hp), making it suitable for small to medium-sized industrial or commercial applications.

Q3: What type of power supply does this drive support?
A3: It operates on a single-phase supply with a voltage range of 200–240 V (-15% to +10%), ensuring compatibility with standard power systems.

Q4: What is the range of output frequency for this model?
A4: The output frequency ranges from 0 to 500 Hz, enabling flexible control of motor speed for various applications.

Q5: Does the drive include an EMC filter?
A5: Yes, an integrated EMC filter is included, which minimizes electromagnetic interference and ensures compliance with industry standards.

Q6: What type of communication protocols does this drive support?
A6: It supports Modbus and CANopen communication protocols, making it easy to integrate into industrial automation systems.

Q7: What protection levels are offered by the ATV312H075M2?
A7: This drive offers protection ratings of:

• IP20 on the upper part without a cover plate,
• IP21 on connection terminals,
• IP31 on the upper part, and
• IP41 on the upper part, providing versatility for different installation environments.

Q8: What is the speed range of the drive?
A8: The drive supports a speed range of 1 to 50, allowing for precise control of motor operation in various applications.

Q9: Can the switching frequency be adjusted?
A9: Yes, the switching frequency is adjustable between 2 and 16 kHz, providing flexibility to optimize performance and reduce audible noise.

Q10: What is the rated output current of this drive?
A10: The rated output current is 4.8 A at 4 kHz, which aligns with its motor power rating and ensures stable operation.

Schneider Electric products are manufactured in France and are designed for Material handling, packaging, and textile machines usage. They come with a 2-year warranty from MRO Electric. We also carry AC Drives from other manufacturers such as Modicon and ABB.

Contact Us Today For More Information About Schneider Electric Products

Check out the rest of our Schneider Electric product line. Whether it's using our online instant quote feature, giving us a call at (800) 691-8511, or emailing us at sales@mroelectric.com, we strive for customer satisfaction first. This means lower prices and better service for you. For more products like ATV312H075M2, take a look at more from our AC Drives line. If your current unit has gone bad, take advantage of our Core Exchange program for the most inexpensive route. You can learn more about this program on our FAQ page here. We offer a repair service on all of our ATV312H075M2 products that keep your downtime to a minimum. To stay up to date on manufacturer news, as well as access any of our datasheets, manuals, or other documentation, we suggest you take a look at our blog.
