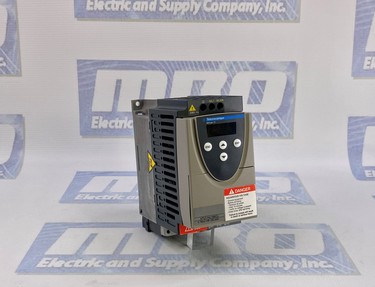

Schneider Electric ATV11HU18M2U

The ALTIVAR ATV11HU18M2U is a part of the group of adjustable speed AC drive controllers.  The electrical characteristics include power supply voltage supply. The ATV11HU18M2U is 1-phase, 200 -15% to 240 +10%. The power supply frequency is 50 Hz ±5% or 60 Hz ±5%. The power supply AIC rating for the ALTIVAR ATV11HU18M2U is ≤ 1000 for 1-phase power supply. The maximum motor cable length is 50 m (164 ft.) for shielded cable and 100 m (328 ft.) for non-shielded cable. Before attaching the cable, you must first verify that the motor is designed for use with AC drive controllers. If you have a cable that runs longer than 12.2 m (40 ft.), it may require output filters.  The output features are there to reduce voltage spikes at the motor terminals. It has galvanic isolation between power and control. Control includes inputs, outputs, and power supplies. These products are manufactured in France and are designed for Material handling, packaging, and textile machines usage. They come with a 2-year warranty from MRO Electric. We also carry AC Drives from other manufacturers such as Modicon and ABB.

Features

The power supply for this module includes internal 15 V or external 24 V (minimum 11 V, max 30 V). You can use a single input to combine several functions with multiple assignments. The positive logic characteristics include state = 0 if < 5 V or unwired cable input, state = 1 if < 5 V with a max sampling time of 20 ms.

The ATV11HU18M2U factory setting for direct output is pulse width modulation (PWM) type open collector output at 2 kHz. It is able to be used on a meter. The max current is 10 mA. The impedance is 1 kΩ linearity:  ± 1 % with a max sampling time of 20 ms.  This module is able to be configured as a logic output by open collector logic input with impedance: 100 Ω with a max of 50 mA. For external voltage there is a max of 30 V and 50 mA.

How to use the ATV11HU18M2U

The AC drive controllers are used to control three-phase asynchronous motors. This Schneider Electric module is manufactured for the North American market for automation systems.  The Altivar ATV11HU18M2U unit meets or exceeds the current rating requirements for NEC regarding electric equipment that performs industrial monitoring, in particular, EN50178 that pertains to electromagnetic compatibility as well as emissions. The conducted and radiated emissions for the AC drive controller ATV11HU18M2U and all ATV11 controllers are IEC/EN 61800-3, environments 2 (industrial network) and 1 (public utility network). It has all the functionality as the entire family of Schneider Electric ALTIVAR AC drive controllers.

Advantages

It carries drive controller protection with thermal protection against overheating by way of a built-in PTC probe in the power module. The Schneider Electric ATV11HU18M2U control unit carries internal protection from short circuits and power overloads, + 5 V ±5% for speed reference potentiometer (2.2 to 10 kΩ), max. 10 mA.  This module also has one programmable analog input. Voltage: 0–5 V or 0–10 V, impedance 40 kΩ and current: 0–20 mA or 4–20 mA (without added resistance), impedance 250 Ω. It includes four programmable logic inputs, impedance: 5 kΩ. The degree of protection is IP20.

Contact Us Today For More Information About Schneider Electric Products

Check out the rest of our Schneider Electric product line. Whether it's using our online instant quote feature, giving us a call at (800) 691-8511, or emailing us at sales@mroelectric.com, we strive for customer satisfaction first. This means lower prices and better service for you. For more products like ATV11HU18M2U, take a look at more from our AC Drives line. If your current unit has gone bad, take advantage of our Core Exchange program for the most inexpensive route. You can learn more about this program on our FAQ page here. We offer a repair service on all of our ATV11HU18M2U products that keep your downtime to a minimum. To stay up to date on manufacturer news, as well as access any of our datasheets, manuals, or other documentation, we suggest you take a look at our blog.
