Schneider Electric ATV11HU09M2E: Advanced Variable Speed Drive

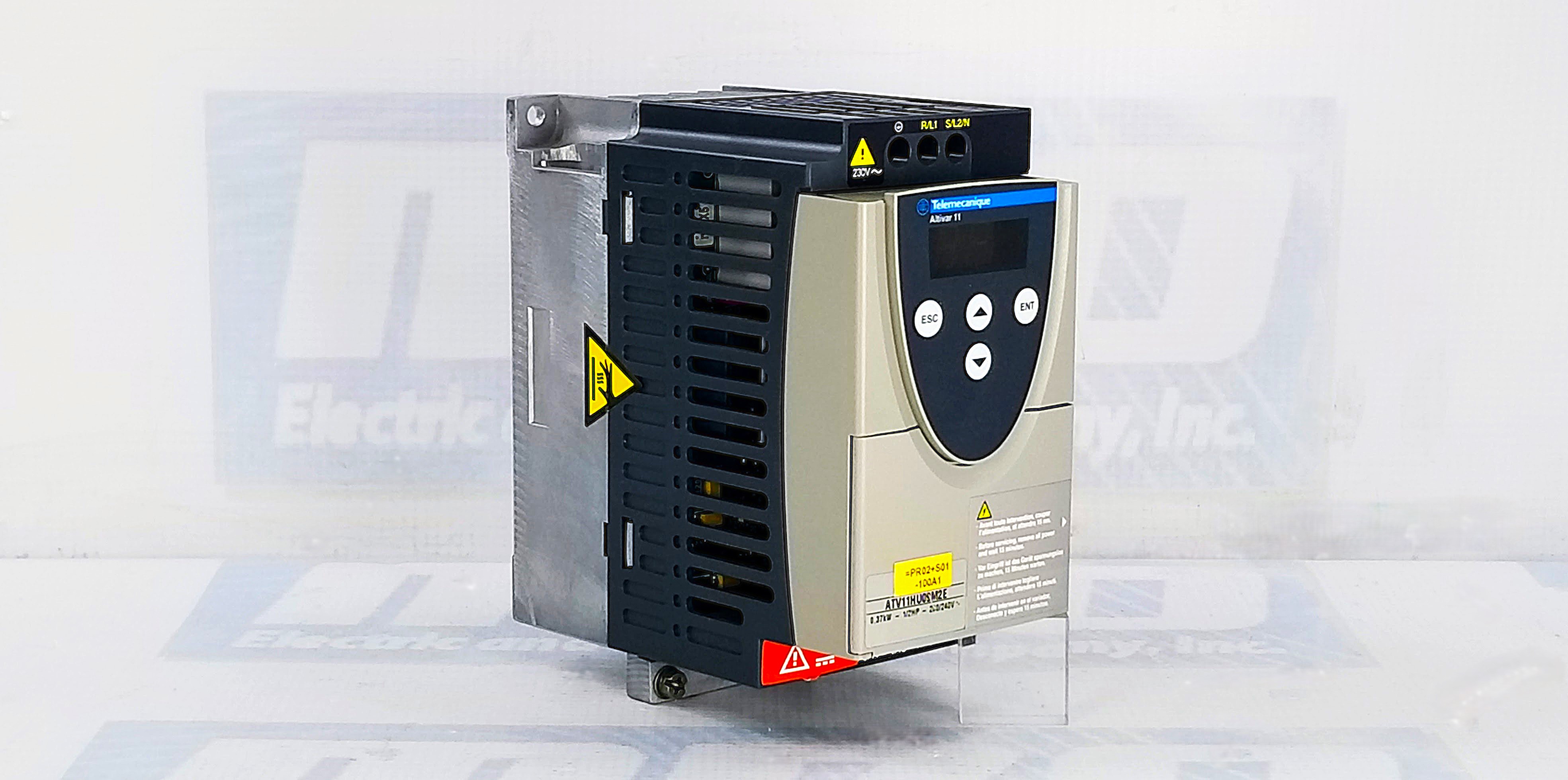

Overview of the Schneider Electric ATV11HU09M2E

The Schneider Electric ATV11HU09M2E is a compact and efficient variable speed drive (VSD) from the Altivar 11 range, designed for simple machine applications. This drive supports a motor power rating of 0.37 kW and operates on a 230V single-phase supply. It features an IP20 protection rating, making it suitable for controlled environments while providing reliable performance in light industrial settings. Designed with sensorless flux vector control and a PWM motor control signal, this VSD ensures smooth and precise motor operation.

Key Features and Benefits

The ATV11HU09M2E stands out for its versatility and robust performance. It integrates an EMC filter for enhanced electromagnetic compatibility and supports various motor control profiles. Its adjustable switching frequency (2–16 kHz) and braking torque capabilities ensure optimized motor performance in varying load conditions.

This VSD is designed to handle transient over-torque up to 150–170% of nominal motor torque, making it ideal for high-inertia applications. Its integrated safety features include overcurrent protection, overheating protection, and thermal motor safeguards, ensuring the drive and the connected motor are protected during operation.

Its compact design (142 x 72 x 125 mm) and lightweight build (2.2 lb) make it easy to install in space-constrained setups. Additionally, the drive supports linear acceleration and deceleration ramps and provides precise motor speed adjustments for conveyor systems, packaging lines, and other simple machine applications.

Warranty and Shipping

Schneider Electric offers a two-year warranty on the ATV11HU09M2E through MRO Electric and Supply, ensuring peace of mind for customers. With free shipping, this VSD is a cost-effective solution for motor control needs in light industrial applications.

Frequently Asked Questions (FAQs)

What is the primary purpose of the ATV11HU09M2E?

This variable speed drive controls the speed and torque of asynchronous motors, optimizing their performance in light industrial and simple machine applications.

What motor power rating does this drive support?

The drive supports motors with a power rating of 0.37 kW.

What is the supply voltage for this VSD?

The ATV11HU09M2E operates on a 230V single-phase supply.

What protection rating does it have?

The drive has an IP20 rating, suitable for controlled environments.

What applications is this VSD designed for?

It is designed for simple machine applications such as packaging conveyors, light material handling, and general-purpose motor control.

Does it include built-in safety features?

Yes, it includes protection against overheating, overcurrent, line supply under voltage, and short circuits.

What is the maximum transient over-torque capacity?

The drive can handle transient over-torque of 150–170% of the nominal motor torque.

How adjustable is the switching frequency?

The switching frequency is adjustable between 2–16 kHz, with derating options for specific use cases.

What is the ambient operating temperature range?

It operates between 14°F to 104°F (-10°C to 40°C) without derating and up to 140°F (60°C) with derating.

What warranty and shipping options are available?

The ATV11HU09M2E comes with a two-year MRO Electric and Supply warranty and qualifies for free shipping.
