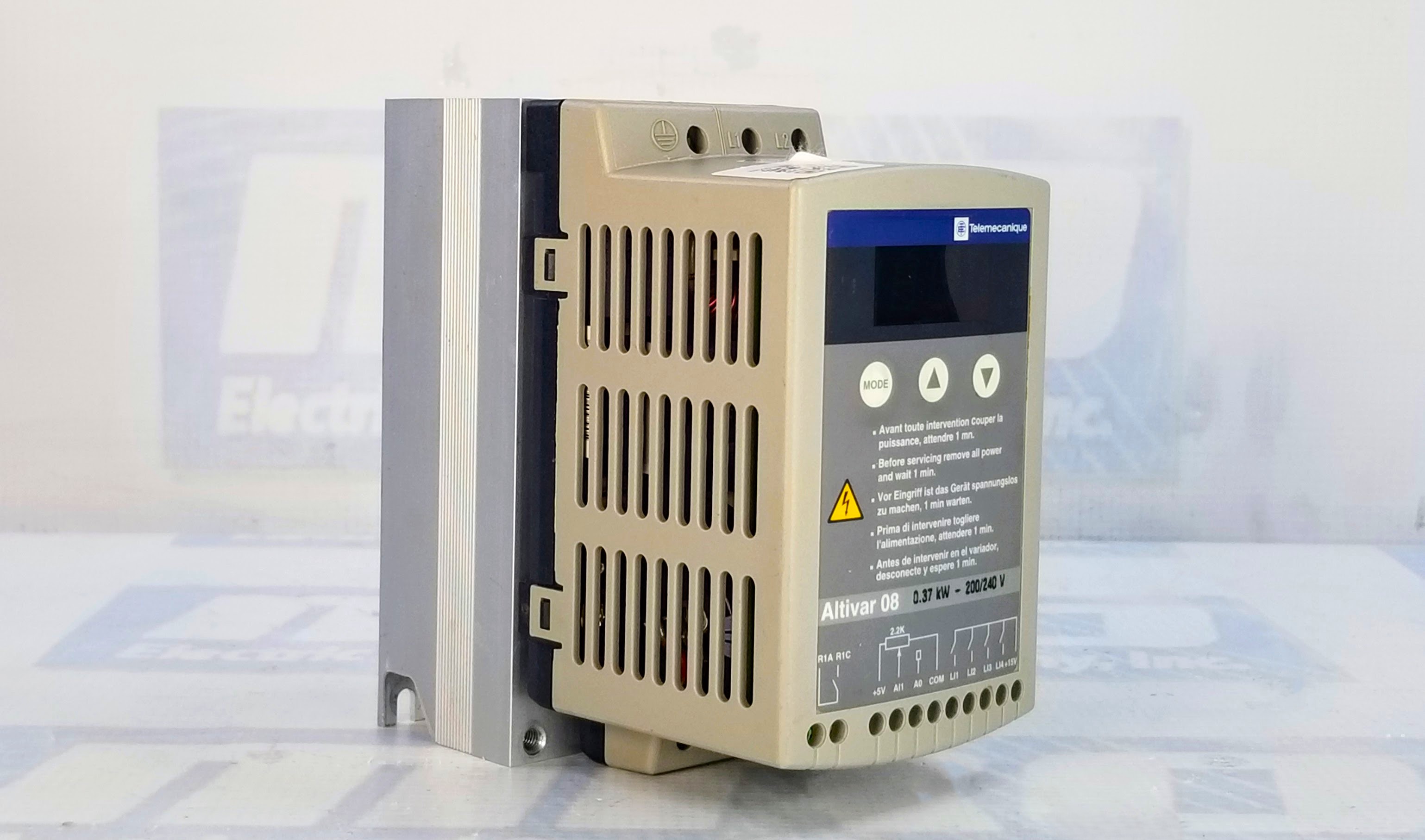

Schneider Electric ATV08HU09M2

The Schneider Electric ATV08HU09M2 is a variable speed drive and part of the Altivar 08 series. This variable speed drive made for asynchronous motors can go right to work for you.  Consisting of standard speed control, this unit includes a heatsink. It is enclosed and made for commonplace environs. It has analog input with a 20ms response time. It possesses a motor power of 0.37kW with a supply frequency of 50-60 Hz.  Its supply voltage limits are 170-264 V and network frequency limits are 47.5-63 Hz.  The speed range on this module is 1-20 with transient torque being 150-170% of nominal motor torque. It has an adjustable regulation loop frequency that is factory set with stability and gain.The motor slip compensation is also factory preset an adjustable.  Its dimensions are 142x72x125 mm. This product weighs 1 kg. Following environmental standards EN 50197 and has certifications of CSA, C-Tick, N998, and UL.For storage, the ambient air temperature should be between -25 and 65°C. These products are manufactured in France and are designed for Material handling, packaging, and textile machines usage. They come with a 2-year warranty from MRO Electric. We also carry Drives from other manufacturers such as Modicon and ABB.

Features

No matter how you choose to apply this drive, the design is small-scale which allows for functionality and control. It is the solution for your low power AC induction motors. It has several applications. One of these applications is horizontal materials handling like conveyors.  Another use for this drive is packing or packaging machines that handle gluing or labeling for example. It is also perfect when used with machines that are for special uses such as mixers or display units. There are numerous functions in the architecture of this drive designed to streamline cost-efficacy through competent management of machinery.

How to use the ATV08HU09M2

If speed control or mechanical soft start is a requirement for your business, the ATV08HU09M2 manages and regulates start speed and speed control. It also has a high ingress protection level of IP20, ensuring effective sealing of the electrical enclosure from things like dirt and moisture. Its functionality includes inversion of the operating direction. It governs stopping, acceleration, and deceleration. Motor and speed controller protection are also included functions. Electromagnetic compatibility filters are integrated into this model in the speed controllers. This brings ease and simplicity to the process of installing.  Another benefit is that it keeps the cost of conformity for CE marking down. If you are not required to follow EMC standards, then there is a model available without the filter.

Advantages

This unit can be mounted. Other functions include automatic restart. This occurs when there is motor thermal overload or speed controller thermal overload. It also occurs when there is a supply under-voltage and when there is an overvoltage due to the deceleration happening to quickly or supply overvoltage. If the latter two are the culprit, the speed controller will restart but only if there is only a minute between when the fault first happened and then regulated. Along with automatic restart, it also has fault relay, thermal protection of the motor and thermal protection of the speed controller.

If you are looking for a well-designed drive for your business, the Schneider Electric ATV08HU09M2 is that dependable Telemecanique drive.
