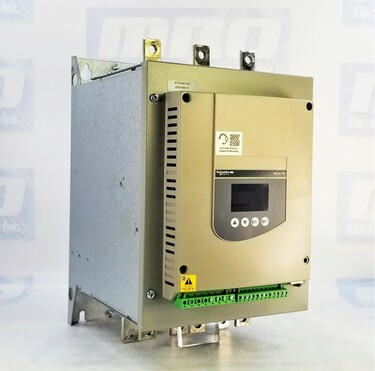

The ATS48C14Y soft starter, part of the Altistart 48 range, is an advanced solution for the controlled starting and stopping of asynchronous motors. Engineered by Yaskawa, a renowned manufacturer in the field of industrial automation, this soft starter is designed to meet the demands of heavy-duty industries and pump applications.

Technical Specifications:

• Product Type: Soft Starter
• Product Destination: Asynchronous Motors
• Specific Application: Heavy-duty industry and pumps
• Device Short Name: ATS48
• Utilization Category: AC-53A
• Power Supply Voltage: 208...690 V (-15% to +10%)
• Power Supply Frequency: 50...60 Hz (-5% to +5%)
• Motor Power:
  • 110 kW at 660 V for standard applications
  • 110 kW at 690 V for standard applications
  • 30 kW at 230 V for severe applications
  • 37 kW at 230 V for standard applications
  • 55 kW at 400 V for severe applications
  • 55 kW at 440 V for severe applications
  • 75 kW at 400 V for standard applications
  • 75 kW at 440 V for standard applications
  • 75 kW at 500 V for severe applications
  • 75 kW at 525 V for severe applications
  • 90 kW at 500 V for standard applications
  • 90 kW at 525 V for standard applications
  • 90 kW at 660 V for severe applications
  • 90 kW at 690 V for severe applications
• Maximum Horse Power Rating:
  • 100 hp at 460 V for standard applications
  • 100 hp at 575 V for severe applications
  • 125 hp at 575 V for standard applications
  • 30 hp at 208 V for severe applications
  • 40 hp at 208 V for standard applications
  • 40 hp at 230 V for severe applications
  • 50 hp at 230 V for standard applications
  • 75 hp at 460 V for severe applications

Complementary Features:

• Device Connection: In the motor supply line
• Protection Types:
  • Phase failure line
  • Thermal protection for motor
  • Thermal protection for starter
• Standards:
  • EN/IEC 60947-4-2
  • Product Certifications: UL, C-tick, CSA, TCF, CCC, NOM, DNV, GOST, SEPRO
• Marking: CE
• Discrete Input Number: 5
• Discrete Input Types: PTC, 750 Ohm 77 °F (25 °C)
• Discrete Output Number: 2
• Discrete Output Types: Logic output 0 V common configurable
• Relay Outputs: Fault relay NO, End of starting relay NO, Motor powered NO
• Analog Output Type: Current output AO 0-20 mA or 4-20 mA, 500 Ohm
• Communication Port Protocol: Modbus
• Communication Data Link: Serial, RS485 multidrop
• Communication Connector: RJ45
• Operating Position: Vertical +/- 10 degrees
• Dimensions: Height - 13.39 in (340 mm), Width - 7.87 in (200 mm), Depth - 10.43 in (265 mm)
• Net Weight: 27.34 lb(US) (12.4 kg)

Environmental Considerations:

• Electromagnetic Compatibility: Complies with IEC 60947-4-2 standards for conducted and radiated emissions.
• Temperature Range: 14…104 °F (-10…40 °C) without derating, 104…140 °F (40…60 °C) with current derating of 2% per °C.
• Humidity: 0…95% without condensation or dripping water.

The ATS48C14Y soft starter is a versatile and reliable solution for starting and stopping asynchronous motors in heavy-duty and pump applications. With its advanced features, compliance with international standards, and robust design, it offers enhanced control and protection for industrial processes. The comprehensive range of power and voltage options makes it suitable for a wide range of applications, ensuring efficient and optimized motor performance.
