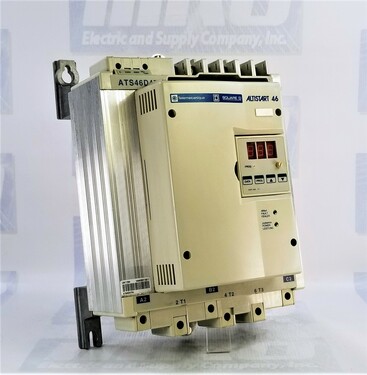

Schneider Electric ATS46D47N

Schneider Electric ATS46D47N

The ATS46D47N is a versatile soft starter designed to provide smooth and controlled acceleration for three-phase induction motors. Manufactured by Schneider Electric under the Telemecanique brand, this device falls under the Contactors & Starters category, specifically tailored to meet the needs of motor control applications.

Drive

As a soft starter, the ATS46D47N facilitates the gradual ramp-up of motor speed, reducing mechanical stress and minimizing electrical disturbances during start-up. This drive function ensures a gentle start for the connected motor, enhancing equipment longevity and operational efficiency.

Soft Starter

Functioning as a soft starter, the ATS46D47N employs sophisticated control algorithms to regulate the voltage and current supplied to the motor. By gradually increasing the voltage during start-up, it prevents sudden torque spikes and reduces inrush currents, thereby safeguarding both the motor and connected machinery.

Altistart 46

Belonging to the Altistart 46 series, this soft starter benefits from Schneider Electric's renowned Altistart technology, known for its reliability and performance. The Altistart 46 range is engineered to deliver precise motor control and protection features, ensuring safe and efficient operation across various industrial applications.

Key Specifications

The ATS46D47N features a three-pole design, allowing for straightforward installation and connection to three-phase power systems. With a current rating of 47 amps and a maximum voltage of 500 V AC, it accommodates motors with varying power requirements. Capable of handling motors up to 30 horsepower, the ATS46D47N is suitable for a wide range of motor sizes and applications.

Manufacturer: Schneider Electric

Schneider Electric, a global leader in energy management and automation solutions, manufactures the ATS46D47N to the highest quality standards. With a reputation for innovation and reliability, Schneider Electric products are trusted by industries worldwide to deliver superior performance and efficiency.

Brand: Telemecanique

Under the Telemecanique brand, Schneider Electric offers a comprehensive range of control and automation products tailored to meet the needs of industrial applications. Telemecanique products, including the ATS46D47N soft starter, are known for their durability, versatility, and ease of integration into existing systems.

Applications

The ATS46D47N soft starter finds application across various industries, including manufacturing, HVAC (Heating, Ventilation, and Air Conditioning), water treatment, and mining. Its ability to provide smooth acceleration and precise motor control makes it suitable for pumps, conveyors, fans, compressors, and other motor-driven equipment.

FAQ (Frequently Asked Questions)

1. What is the purpose of a soft starter like the ATS46D47N?

Soft starters like the ATS46D47N are designed to gradually ramp up motor speed during start-up, reducing mechanical stress and electrical disturbances. This helps extend motor and equipment lifespan while enhancing operational efficiency.

2. How does the Altistart 46 technology benefit users of the ATS46D47N?

Altistart 46 technology, incorporated into the ATS46D47N, provides precise motor control and protection features. It ensures safe and efficient operation across a variety of industrial applications, offering reliability and performance.

3. Can the ATS46D47N accommodate different motor sizes and power requirements?

Yes, the ATS46D47N is versatile, with a current rating of 47 amps and a maximum voltage of 500 V AC. It can handle motors up to 30 horsepower, making it suitable for a wide range of motor sizes and applications.

4. What are some typical applications of the ATS46D47N soft starter?

The ATS46D47N finds application in industries such as manufacturing, HVAC, water treatment, and mining. It is used in pumps, conveyors, fans, compressors, and other motor-driven equipment where smooth acceleration and precise control are necessary.

5. How does the ATS46D47N contribute to equipment longevity and efficiency?

By gradually ramping up the motor speed and reducing inrush currents, the ATS46D47N minimizes mechanical stress on the motor and electrical disturbances in the system. This helps extend the lifespan of both the motor and connected equipment while improving operational efficiency.

6. Is the ATS46D47N easy to install and integrate into existing systems?

Yes, the ATS46D47N features a three-pole design for straightforward installation and connection to three-phase power systems. Additionally, its compatibility with Schneider Electric's Altivar range and other Telemecanique products ensures seamless integration into existing control and automation systems.

Schneider Electric products are manufactured in France and are designed for Material handling, packaging, and textile machines usage. They come with a 2-year warranty from MRO Electric. We also carry AC Motors from other manufacturers such as Modicon and ABB.
