Schneider Electric AS-B838-032

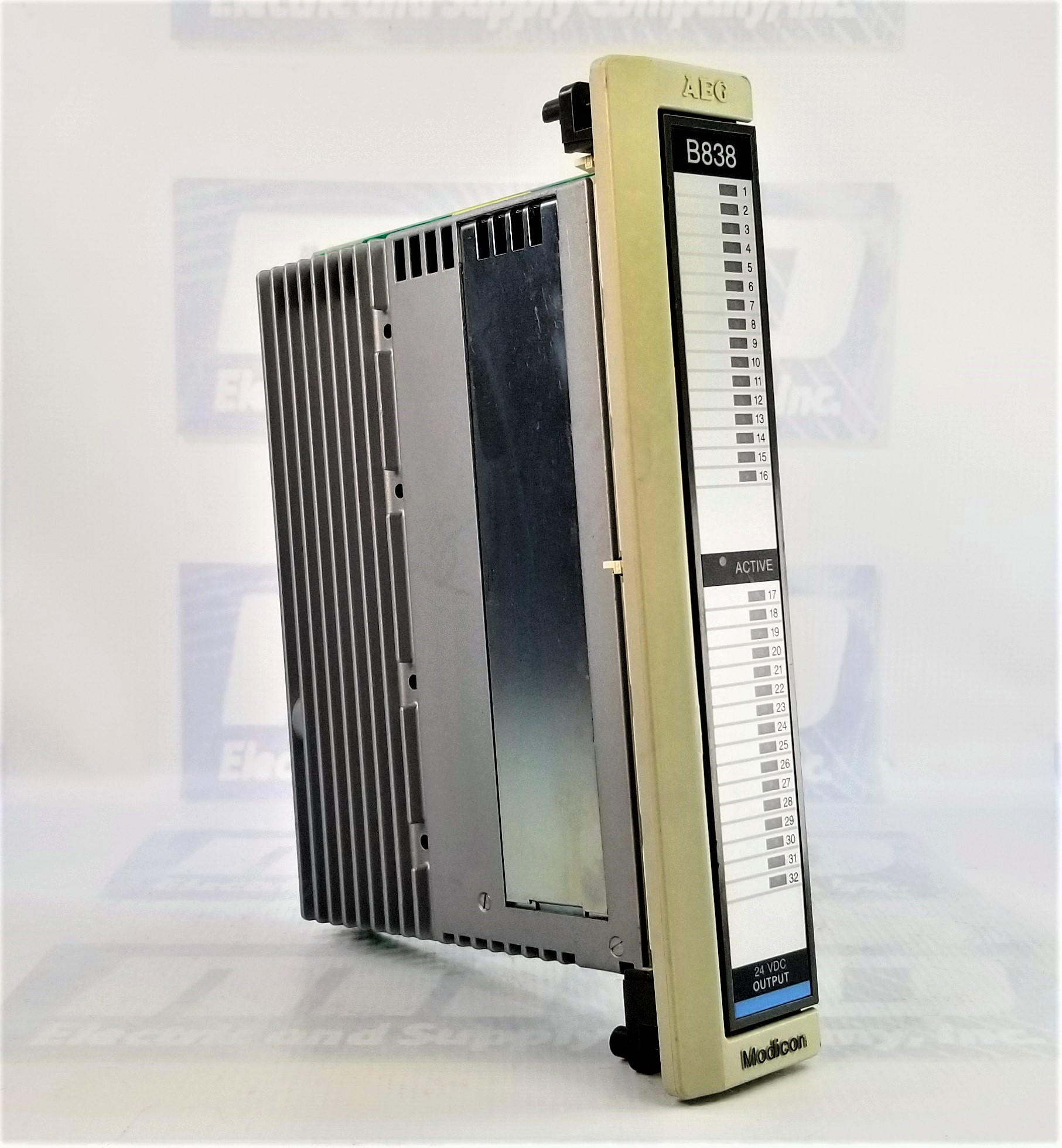

Schneider Electric AS-B838-032 I/O Module

The Schneider Electric AS-B838-032 I/O Module is a robust and versatile component designed for industrial automation systems. With its reliable performance and flexible configuration options, this module enhances control and monitoring capabilities in diverse applications.

High-Performance Terminal Connector:

Equipped with the AS-8534-000 terminal connector, the AS-B838-032 module ensures the secure and efficient connection of field devices. Its reliable terminal design facilitates easy installation and maintenance, minimizing downtime and optimizing system reliability.

Accurate High Output Voltage:

Operating at 24 Vdc, the AS-B838-032 module delivers accurate high-output voltage, providing stable and consistent power to connected devices. This ensures the reliable operation of control elements and enhances system performance in demanding industrial environments.

Expanded Input/Output Capacity:

With 32 points and four groups, each containing eight outputs, the AS-B838-032 module offers expanded input/output capacity, accommodating a wide range of control signals and field devices. This scalability enables seamless integration into complex automation systems.

Precision Current Control:

Featuring a maximum current rating of 0.5 A per point (2.5 A for 0.5 ms) and 4 A per group, the AS-B838-032 module ensures precise current control for connected devices. This allows for efficient operation of motors, valves, and other field equipment, enhancing overall system efficiency.

Fast Response Time:

The AS-B838-032 module boasts fast response times, with a maximum OFF to ON and ON to OFF response time of just 1 ms. This rapid switching capability ensures quick and accurate control of connected devices, improving system performance and responsiveness.

Efficient Power Consumption:

With a power requirement of 160 mA at +5 V and minimal power consumption at +4.3 V and -5 V, the AS-B838-032 module optimizes energy usage while maintaining reliable operation. Its efficient power management reduces operational costs and environmental impact.

External Power Supply Compatibility:

Compatible with an external power supply of 24 ± 4 Vdc and 125 mA (excluding field load current), the AS-B838-032 module ensures consistent power delivery for uninterrupted operation. This compatibility enhances system stability and reliability in various industrial environments.

Compact Design and Easy Installation:

The AS-B838-032 module occupies just one slot and features a compact design that saves valuable space in control cabinets. Its lightweight construction, weighing only 2.4 lbs (1.09 kg), simplifies installation and handling, reducing installation time and effort.

FAQ - Schneider Electric AS-B838-032 I/O Module

Q: What is the Schneider Electric AS-B838-032 I/O Module? A: The Schneider Electric AS-B838-032 is an I/O (Input/Output) module for industrial automation systems. It facilitates the control and monitoring of devices within the system.

Q: What are the key features of the AS-B838-032 module? A: The AS-B838-032 module offers 32 points with eight outputs per group, accurate high output voltage at 24 Vdc, precise current control, fast response times, and compatibility with external power supplies. It also has a compact design and efficient power consumption.

Q: What is the maximum current rating of the AS-B838-032 module? A: The module has a maximum current rating of 0.5 A per point (2.5 A for 0.5 ms) and 4 A per group. This allows for precise control of connected devices such as motors and valves.

Q: What is the response time of the AS-B838-032 module? A: The module boasts a fast response time, with a maximum OFF to ON and ON to OFF response time of just 1 ms. This ensures quick and accurate control of connected devices, improving system performance and responsiveness.

Q: What are the power requirements of the AS-B838-032 module? A: The module requires 160 mA at +5 V for power. It also has minimal power consumption at +4.3 V and -5 V. Additionally, it is compatible with an external power supply of 24 ± 4 Vdc, further enhancing its reliability.

Q: Is the AS-B838-032 module easy to install? A: Yes, the AS-B838-032 module features a compact design and lightweight construction, making it easy to install and handle. It occupies just one slot in control cabinets, saving valuable space.

Q: What is the weight of the AS-B838-032 module? A: The module weighs only 2.4 lbs (1.09 kg), making it easy to handle during installation and maintenance procedures.

Q: What type of applications is the AS-B838-032 module suitable for? A: The AS-B838-032 module suits various industrial automation applications, including machine control, process automation, and monitoring systems.

Q: Is the AS-B838-032 module compatible with other Schneider Electric products? A: Yes, the AS-B838-032 module is designed to be compatible with other Schneider Electric products, ensuring seamless integration into existing automation systems.

Schneider Electric products are manufactured in France and are designed for Material handling, packaging, and textile machines usage. They come with a 2-year warranty from MRO Electric. We also carry I/O Modules from other manufacturers such as Modicon and ABB.
