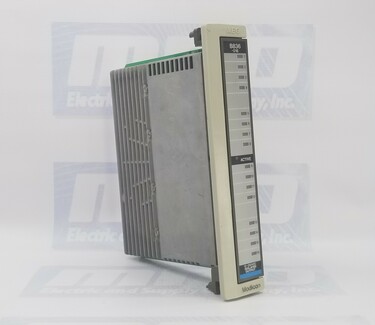

MODICON 984 SERIES 800-SERIES I/O MODULE, DISCRETE OUT, 12-250 VDC, 16 PNTS, 1 PNTS PER COMMON
| Part Number | AS-B836-016 |
| Manufacturer | Schneider Electric |
| Type | I/O Modules |
| Model # | ASB836016 |
| Warranty | 2 Year |
| Fusing | One per module |
| Description | 12 ... 250 Vdc isolated output |
| Number of Points | 16 |
| Operating Voltage | 12 ... 250 Vdc |
| Number of Groups | 16 |
| Outputs per Group | 1 |
| ON Current | |
| Max. per Point | 0.75 A (typical) @ 250 Vdc |
| 1 A (typical) @ 125 Vdc | |
| 1.5 A (typical ) @ 48 Vdc | |
| Max. per Module | 8 A |
| Leakage Current | 1mA (max.) @ 12 Vdc |
| Surge Current | 5 A for 10 ms at repetition rate |
| of 1 sec. | |
| Max. Response Time | |
| OFF to ON | 1 ms |
| ON to OFF | 5 ms |
| Power Required | |
| +5 V | 50 mA |
| +4.3 V | 603 mA |
| -5 V | 0 mA |
| Space Required | 1 slot |
| Weight | 2.55 lbs (1.16 kg) |
| Terminal Connector | AS-8535-000 |
