AS-B807-132

2-year Warranty

Same Day Shipping

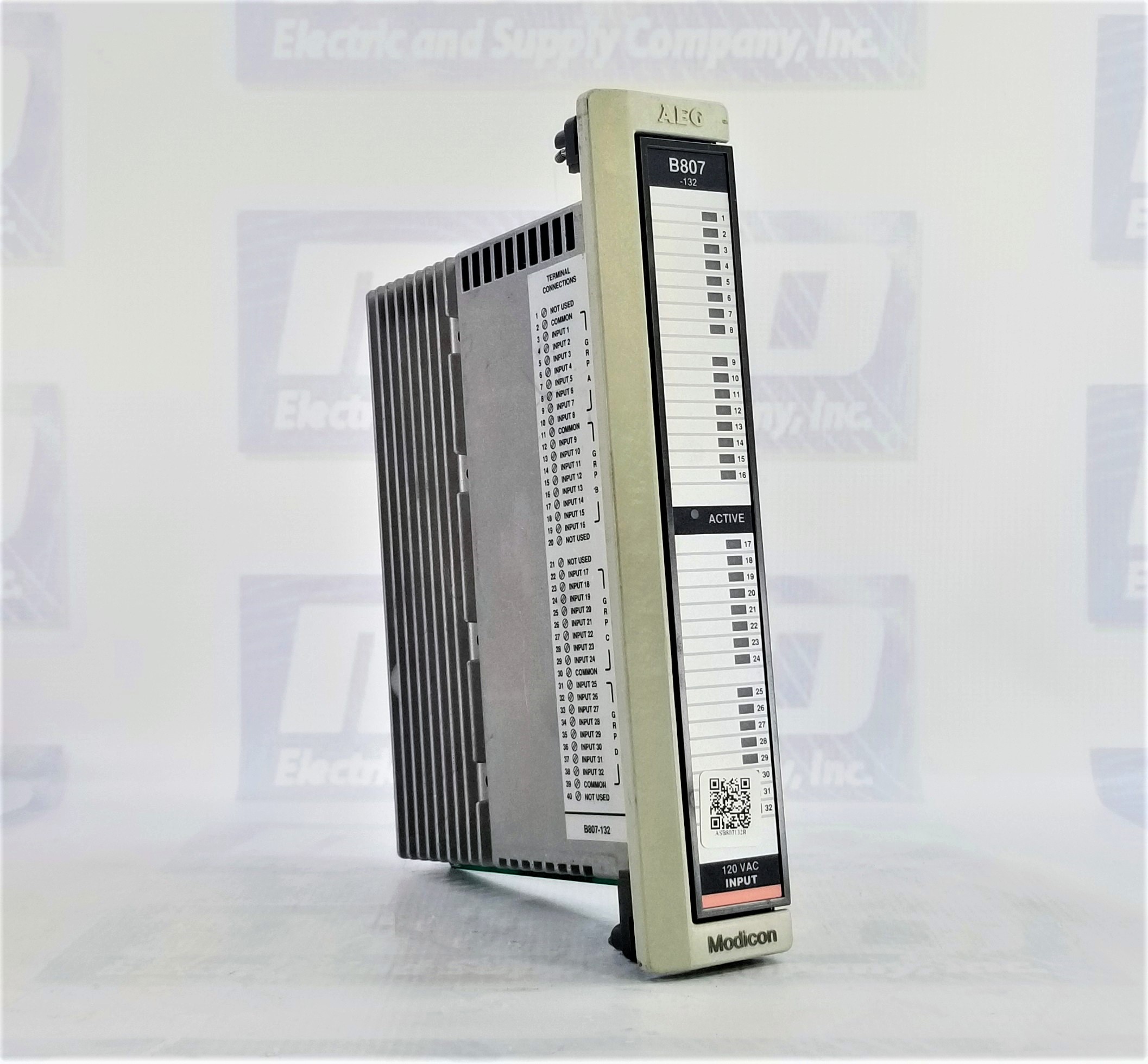

Schneider Electric AS-B807-132

MODICON 984 SERIES 800-SERIES I/O MODULE, DISCRETE IN, 115 VAC, 32 PNTS, 8 PNTS PER COMMON

4/5
1 rating

Select Condition

Refurbished

8 in stock

New

1 in stock

$177.00

Request a formal quote

  • Ships Today
  • 2 Year Warranty
  • Free Shipping
Part NumberAS-B807-132
ManufacturerSchneider Electric
TypeI/O Modules
Model #ASB807132
Warranty2 Year
FusingNone
Description115 Vac hi-density input
Number of Points32
Operating Voltage80 ... 130 Vac/
47 ... 63 Hz
Number of Groups4
Inputs per Group8
Max. Input Voltage
Continuous130 Vac
Surge200 Vac for 1 cycle
ON Conditions80 ... 130 Vac (Z<1kΩ)
OFF Conditions0 ... 35 Vac (Z=0 Ω)
0 ... 130 Vac (Z>40 kΩ)
Wetting Current6 mA (typical) @ 115 Vac
Max. Response Time
OFF to ON6 ms
ON to OFF12 ms
Power Required
+5 V80 mA
+4.3 V2 mA
-5 V0 mA
Space Required1 slot
Weight2 lbs (0.91 kg)

Our Repair Services

MRO Electric repairs CNCs, PLCs, Servo/Spindle Drives, Motors, Amplifiers, VFDs, HMIs, and more, most of which can be repaired in only 3-5 days.

Repair Benefits

MRO can restore your failed AS-B807-132 to remanufactured condition and save you up to 75% compared to buying new. We offer standard repair pricing to ensure you the best value for your repair.

Our certified technicians use rigorous testing procedures to ensure your parts are restored to fully functioning condition. Our team proudly stands behind all repairs by providing a minimum 2-year warranty.

Our technicians have vast experience with most manufacturers and models. In addition to this AS-B807-132 we also repair drives, motors, PLCs and more, so if you don’t see the model you need, please contact us.

Core Exchange

If you are interested in getting credit for your faulty AS-B807-132, just let us know, and we can issue you an RMA to send it in as an exchange. Our exchange program provides you with savings and keeps us stocked for the next time you need anything.

  • Shipping Weight : 3lbs

Want it shipped today?

  • Order within the next 8 hours and 25 minutes.
  • If you order between 4pm and 6pm EST, you will be charged a small rush fee.

Ask about exchanging your faulty AS-B807-132 for credit when ordering from MRO Electric

MRO Electric provides a 2-year warranty on every item we sell and repair. We stand behind all of our products and guarantee them for the full 2 years. If there is an issue with any of our products within the warranty period, we will evaluate the unit and repair or replace it under warranty.

Schneider Electric AS-B807-132 Overview

High-Density Input Module for Industrial Automation

The Schneider Electric AS-B807-132 is a high-density 115V AC input module for seamless integration into industrial automation systems. With 32 input points, this module is built for applications demanding efficient signal processing and reliable data acquisition. It is an essential component in programmable logic controller (PLC) systems, allowing operators to precisely monitor and control industrial processes. The module operates within an 80-130V AC range at 47-63 Hz, making it a versatile solution for various automation needs. Its ability to handle multiple input points while maintaining accuracy makes it an excellent choice for manufacturing, process control, and other industrial applications requiring robust input signal management.

Reliable Performance and Electrical Specifications

The AS-B807-132 module is designed with four groups of eight inputs, ensuring an organized and structured approach to signal processing. It maintains a maximum continuous input voltage of 130V AC and can withstand surges up to 200V AC for one cycle, ensuring durability in fluctuating electrical environments. With an ON condition range of 80-130V AC and an OFF condition range of 0-35V AC, this module provides precise state detection for industrial equipment. The module features a wetting current of 6 mA at 115V AC, ensuring stable input detection even in challenging conditions. The response time from OFF to ON is 6 milliseconds, while the ON to OFF transition takes 12 milliseconds, offering reliable and timely input processing.

Compact Design and Power Efficiency

The AS-B807-132 module requires only one slot for installation, making it an efficient solution for space-conscious industrial setups. It has low power consumption, requiring +5V at 80mA, +4.3V at 2mA, and no -5V power, reducing strain on system resources. Weighing 2 lbs (0.91 kg), this module is lightweight yet durable, ensuring long-term performance in demanding industrial environments. Its lack of internal fusing simplifies its design, making it an easy-to-integrate solution for systems that already incorporate external protection mechanisms.

Immediate Availability and Warranty Protection

The Schneider Electric AS-B807-132 is available for immediate shipping with free delivery, ensuring minimal downtime when replacing or upgrading existing modules. Additionally, it comes with a two-year MRO Electric and Supply warranty, assuring quality and reliability. With Schneider Electric's reputation for high-performance industrial components, this module is a trusted choice for automation professionals looking for a reliable, high-density input module.

Frequently Asked Questions (FAQ)

What is the primary function of the AS-B807-132 module?

It is a 32-point 115V AC high-density input module for industrial automation applications, providing accurate signal input for PLC systems.

Is this module compatible with modern PLCs?

It is designed for use with Schneider Electric's Modicon series and other compatible PLCs.

What is the maximum voltage this module can handle?

It supports a maximum continuous input voltage of 130V AC and can withstand 200V AC surges for one cycle.

How many input groups does this module have?

The module is divided into four groups, each containing eight input points, making it structured and organized for automation applications.

Does this module require fusing?

No, the AS-B807-132 does not include internal fusing, so that external circuit protection may be required.

What is the response time for state changes?

The response time is 6 milliseconds from OFF to ON and 12 milliseconds from ON to OFF, ensuring reliable input processing.

How much power does this module consume?

It requires +5V at 80mA, +4.3V at 2mA, and no -5V power, making it an energy-efficient choice.

Is this module easy to install?

Yes, it requires only one slot in the PLC rack and is designed for straightforward integration.

Where can I purchase this module?

It is available for immediate shipping with free MRO Electric and Supply delivery, ensuring fast and hassle-free procurement.

Schneider Electric products are manufactured in France and are designed for Material handling, packaging, and textile machines usage. They come with a 2-year warranty from MRO Electric. We also carry I/O Modules from other manufacturers such as Modicon and ABB.
