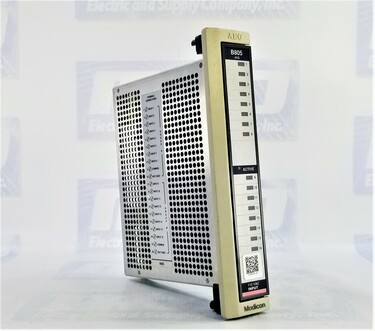

MODICON 984 SERIES 800-SERIES I/O MODULE, DISCRETE IN, 115 VAC, 16 PNTS, 8 PNTS PER COMMON
| Part Number | AS-B805-016 |
| Manufacturer | Schneider Electric |
| Type | I/O Modules |
| Model # | ASB805016 |
| Warranty | 2 Year |
| Fusing | One per group |
| Description | 115 Vac input |
| Number of Points | 16 |
| Operating Voltage | 80 ... 130 Vac / 47 ... 63 Hz |
| Number of Groups | 2 |
| Inputs per Group | 8 |
| Max. Input Voltage | |
| Continuous | 130 Vac |
| Surge | 220 Vac for one cycle |
| ON Conditions | 80 ... 130 Vac (Z<1kΩ) |
| OFF Conditions | 0 ... 35 Vac (Z=0 Ω) |
| 0 ... 130 Vac (Z>40 kΩ) | |
| Wetting Current | 6 mA (typical) @ 115 Vac |
| Max. Response Time | |
| OFF to ON | 6 ms (4 ms typical) |
| ON to OFF | 18 ms (11 ms typical) |
| Power Required | |
| +5 V | 40 mA |
| +4.3 V | 1 mA |
| -5 V | 14 mA |
| Space Required | 1 slot |
| Weight | 2.2 lbs (1.01 kg) |
MRO Electric repairs CNCs, PLCs, Servo/Spindle Drives, Motors, Amplifiers, VFDs, HMIs, and more, most of which can be repaired in only 3-5 days.
MRO can restore your failed AS-B805-016 to remanufactured condition and save you up to 75% compared to buying new. We offer standard repair pricing to ensure you the best value for your repair.
Our certified technicians use rigorous testing procedures to ensure your parts are restored to fully functioning condition. Our team proudly stands behind all repairs by providing a minimum 2-year warranty.
Our technicians have vast experience with most manufacturers and models. In addition to this AS-B805-016 we also repair drives, motors, PLCs and more, so if you don’t see the model you need, please contact us.
If you are interested in getting credit for your faulty AS-B805-016, just let us know, and we can issue you an RMA to send it in as an exchange. Our exchange program provides you with savings and keeps us stocked for the next time you need anything.
Want it shipped today?
Ask about exchanging your faulty AS-B805-016 for credit when ordering from MRO Electric
The Schneider Electric AS-B805-016 is a high-performance I/O module that provides efficient and reliable 115V AC input processing for industrial automation systems. As part of Schneider Electric’s trusted automation solutions, this module offers 16 input points, divided into two groups of eight, making it a robust option for various control applications.
This module ensures seamless integration into industrial control environments, operating efficiently within an 80 to 130V AC range at 47-63 Hz. It features individual fusing per group, which helps protect against electrical faults and enhances system safety. Its compact size, requiring just one slot, makes it an excellent choice for applications with limited panel space.
The AS-B805-016 is built for fast and reliable signal processing. With a maximum input voltage of 130V AC continuously and the ability to handle 220V AC surges for one cycle, this module is highly durable in demanding industrial conditions. Its ON-to-OFF response time is 18 ms (11 ms typical), while the OFF-to-ON response time is just 6 ms (4 ms typical), ensuring that system responses are both timely and efficient.
With its wetting current of 6mA at 115V AC, the AS-B805-016 ensures stable and consistent signal recognition, minimizing false triggers and improving automation reliability. Its high-impedance OFF conditions ensure clear signal differentiation, making it ideal for precise input detection in manufacturing and process control environments.
This module’s compact 1-slot design allows for efficient space utilization within automation panels. It is lightweight yet robust at just 2.2 lbs (1.01 kg), making installation and maintenance straightforward. Additionally, it requires minimal power, drawing just 40 mA at +5V, one mA at +4.3V, and 14 mA at -5V, making it an energy-efficient component for any system.
The Schneider Electric AS-B805-016 is available immediately with free shipping, ensuring a quick and hassle-free acquisition process. It is also backed by a 2-year MRO Electric and Supply warranty, providing long-term reliability and peace of mind for industrial users.
What is the primary function of the AS-B805-016 module?
The AS-B805-016 is a 115V AC input module that provides 16 input points, divided into two groups of eight, for use in industrial automation systems.
What is the operating voltage range for this module?
This module operates between 80 to 130V AC at 47-63 Hz, making it suitable for various industrial applications.
How many input points does this module have?
It has 16 input points, divided into two groups of eight inputs each.
Does the module have surge protection?
Yes, it can handle surges of 220V AC for one cycle, ensuring durability in industrial environments.
What is the response time of this module?
Does this module require additional fuses?
No, it has one fuse per input group, ensuring built-in circuit protection.
How much power does the AS-B805-016 consume?
It requires 40 mA at +5V, one mA at +4.3V, and 14 mA at -5V, making it an energy-efficient choice for automation systems.
What are the weight and size specifications?
The module weighs 2.2 lbs (1.01 kg) and requires only one slot in a control panel.
Is this module RoHS-compliant?
The product specifications do not mention RoHS compliance, so checking with Schneider Electric for compliance details is recommended.
Is this module available for immediate shipping?
Yes, the AS-B805-016 is available for immediate purchase with free shipping, ensuring quick delivery.
Schneider Electric products are manufactured in France and are designed for Material handling, packaging, and textile machines usage. They come with a 2-year warranty from MRO Electric. We also carry I/O Modules from other manufacturers such as Modicon and ABB.
