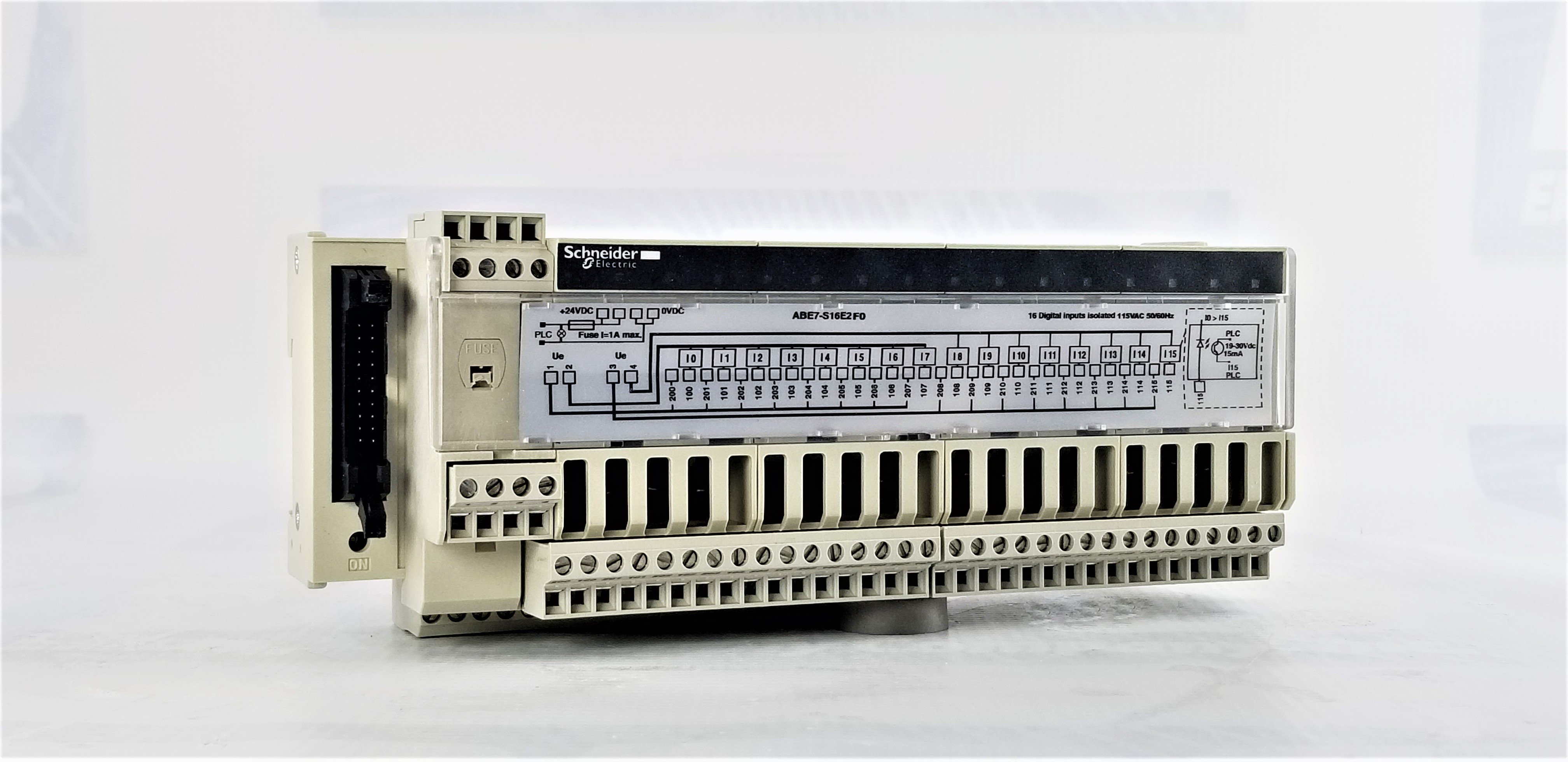

MODICON COMMUNICATION SUB-BASE - SOLDERED SOLID STATE OUTPUT RELAY ABE7 - 16 INPUTS - 115 V AC
| Part Number | ABE7S16E2F0 |
| Manufacturer | Schneider Electric |
| Type | Accessories |
| Warranty | 2 Year |
| Tightening torque | 5.31 lbf.in (0.6 N.m) (with flat Ø 3.5 mm) |
| Range of product | Advantys Telefast ABE7 |
| Product or component type | Solid state input relay sub-base |
| [Us] rated supply voltage | 110/130 V AC 50/60 Hz (sensor end) |
| 24 V DC (PLC end) | |
| Number of channels | 16 |
| Number of terminal per channel | 2 |
| Terminal block type | Removable |
| Supply voltage limits | 19...30 V DC (PLC end) conforming to IEC 61131-2 |
| Isolation PLC/operative part | Yes |
| Protection type | Internal fuse of 1 A (5 x 20 mm), fast blow typeat PLC end |
| Adjustable by external fuse, fast blow typeat sensor end | |
| Fixing mode | By clips on 35 mm symmetrical DIN rail |
| By screws on solid plate with fixing kit | |
| [Ie] rated operational current AC | <= 0.0083 A |
| Current state 1 guaranteed | >= 5 mA (sensor end) |
| Voltage state1 guaranteed | >= 79 V (sensor end) |
| Maximum switching current | 15 mA (PLC end) |
| Minimum switching current | 1 mA (PLC end) |
| Response time | <= 20 ms from state 0 to 1 |
| <= 20 ms from state 1 to 0 | |
| Switching frequency | <= 25 Hz duty cycle: 50 % |
| [Uimp] rated impulse withstand voltage | 2.5 kV conforming to IEC 60947-1 |
| [Ui] rated insulation voltage | 2000 V |
| Installation category | II conforming to IEC 60664-1 |
MRO Electric repairs CNCs, PLCs, Servo/Spindle Drives, Motors, Amplifiers, VFDs, HMIs, and more, most of which can be repaired in only 3-5 days.
MRO can restore your failed ABE7S16E2F0 to remanufactured condition and save you up to 75% compared to buying new. We offer standard repair pricing to ensure you the best value for your repair.
Our certified technicians use rigorous testing procedures to ensure your parts are restored to fully functioning condition. Our team proudly stands behind all repairs by providing a minimum 2-year warranty.
Our technicians have vast experience with most manufacturers and models. In addition to this ABE7S16E2F0 we also repair drives, motors, PLCs and more, so if you don’t see the model you need, please contact us.
If you are interested in getting credit for your faulty ABE7S16E2F0, just let us know, and we can issue you an RMA to send it in as an exchange. Our exchange program provides you with savings and keeps us stocked for the next time you need anything.
Want it shipped today?
Ask about exchanging your faulty ABE7S16E2F0 for credit when ordering from MRO Electric
The Schneider Electric ABE7S16E2F0 is a solid-state input relay sub-base designed for high-performance industrial automation applications. As part of the Advantys Telefast ABE7 range, this accessory enables efficient and reliable connectivity between sensors and programmable logic controllers (PLCs). Sixteen input channels facilitate seamless communication, ensuring optimal electrical isolation between the PLC and the operative part. The ABE7S16E2F0 is engineered to meet IEC 61131-2 standards, ensuring compliance with industrial automation regulations. Available immediately from MRO Electric and Supply, it includes free shipping and a 2-year warranty, making it a cost-effective and reliable choice for automation systems.
Designed for high-speed signal transmission, the ABE7S16E2F0 supports an input voltage of 110/130V AC at the sensor and 24V DC at the PLC end. This voltage configuration ensures compatibility with a wide range of industrial systems. The unit has a removable terminal block, allowing easy maintenance and quick wiring adjustments. The internal fuse protection safeguards the PLC connection, while an external fuse option at the sensor end provides enhanced protection customization. With a switching frequency of up to 25 Hz and a response time of ≤20 ms, the ABE7S16E2F0 delivers fast and accurate signal processing, making it suitable for demanding industrial environments.
The ABE7S16E2F0 is designed for flexible installation, supporting DIN rail mounting (35mm symmetrical clips), and solid plate mounting with a fixing kit. This adaptability makes it easy to integrate into different control panel configurations. Built to withstand industrial conditions, it features a rated impulse withstand voltage of 2.5 kV and an insulation voltage of 2000V, ensuring safety and durability. It maintains stable operation in dynamic environments with a tightening torque of 5.31 lbf.in (0.6 N.m) for secure connections.
This solid-state input relay sub-base enhances system reliability by providing efficient isolation, high-speed switching, and easy maintenance. Its internal and external fuse protection increases the lifespan of connected components, while the removable terminal block simplifies wiring changes. Available from MRO Electric and Supply with immediate shipping and a 2-year warranty, the ABE7S16E2F0 is an excellent choice for businesses looking for a dependable automation accessory.
What is the primary function of the ABE7S16E2F0?
The ABE7S16E2F0 is a solid-state input relay sub-base that connects sensors to PLCs, providing efficient signal transmission and electrical isolation in industrial automation systems.
What voltages does this module support?
It supports 110/130V AC on the sensor end and 24V DC on the PLC end, ensuring compatibility with various industrial setups.
How many channels does this module have?
The ABE7S16E2F0 features 16 channels, each with two terminals per channel, enabling organized and efficient wiring.
What type of protection does this module offer?
It includes an internal 1A fast-blow fuse for PLC-end protection and supports external fast-blow fuses at the sensor end for additional safety.
What are the installation options for this module?
It can be installed using clips on a 35mm symmetrical DIN rail or secured with screws on a solid plate using a fixing kit.
What is the switching frequency of the ABE7S16E2F0?
The module operates with a maximum switching frequency of 25 Hz and a 50% duty cycle, allowing efficient control signal transmission.
How fast is the response time of this module?
The response time is ≤20 ms from state 0 to state one and vice versa, ensuring quick signal processing in automation applications.
Does the module provide electrical isolation between the PLC and the sensor?
It ensures electrical isolation between the PLC and the operative part, enhancing system safety and reliability.
What is the rated insulation voltage of this module?
The rated insulation voltage is 2000V, and it has an impulse withstand voltage of 2.5 kV, providing robust protection against electrical surges.
Where can I purchase the ABE7S16E2F0?
The ABE7S16E2F0 is available immediately from MRO Electric and Supply. It has free shipping and a 2-year warranty, ensuring a reliable and risk-free purchase for industrial automation needs.
Schneider Electric products are manufactured in France and are designed for Material handling, packaging, and textile machines usage. They come with a 2-year warranty from MRO Electric. We also carry Accessories from other manufacturers such as Modicon and ABB.
Check out the rest of our Schneider Electric product line. Whether it's using our online instant quote feature, giving us a call at (800) 691-8511, or emailing us at sales@mroelectric.com, we strive for customer satisfaction first. This means lower prices and better service for you. For more products like ABE7S16E2F0, take a look at more from our Accessories line. If your current unit has gone bad, take advantage of our Core Exchange program for the most inexpensive route. You can learn more about this program on our FAQ page here. We offer a repair service on all of our ABE7S16E2F0 products that keep your downtime to a minimum. To stay up to date on manufacturer news, as well as access any of our datasheets, manuals, or other documentation, we suggest you take a look at our blog.
