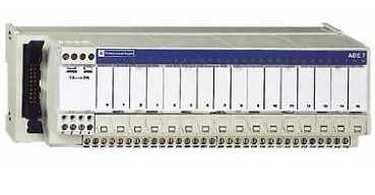

| Part Number | ABE7S08S2B1 |
| Manufacturer | Schneider Electric |
| Type | Accessories |
| Warranty | 2 Year |
| Tightening torque | 5.31 lbf.in (0.6 N.m) (withflat Ø 3.5 mm |
| Range of product | Advantys Telefast ABE7 |
| Product or component type | Solid state output relay sub-base |
| [Us] rated supply volt- | 24 V DC (preactuator end) |
| age | 24 V DC (PLC end) |
| Number of channels | 8 |
| Number of terminal per channel | 2 |
| Relay type | Soldered solid state relay |
| Terminal block type | Removable |
| Isolation PLC/operative part | No |
| Fixing mode | By screws on solid plate with fixing kit |
| By clips on 35 mm symmetrical DIN rail | |
| Width | 206 mm |
| Current state 0 guaranteed | 0.4 mA (PLC end) |
| Voltage state 0 guaranteed | 3.4 V (PLC end) |
| Current state 1 guaranteed | 3.1 mA (PLC end) |
| Voltage state1 guaranteed | 16.9 V (PLC end) |
| Current per output common | <= 10 A |
| Current per channel | 2 A (preactuator end) |
| Minimum switching current | 1 mA |
| Drop-out voltage | <= 0.5 V (preactuator end) |
| Maximum switching current | 2000 mA DC-12 |
| 1000 mA DC-13 | |
| Residual current | <= 0.5 mA (preactuator end) |
| Fault type | Overload |
| Short-circuit | |
| Fault indication | Yes |
| Switchable inductive energy L/R | <= 1700 (U.I) ms |
| Circuit breaker threshold | >= 2.6 A |
| Response time | <= 0.1 ms from state 0 to 1 |
| <= 0.02 ms from state 1 to 0 | |
| Switching frequency | < 0.5/LI² Hz |
| Installation category | II conforming to IEC 60664-1 |
MRO Electric repairs CNCs, PLCs, Servo/Spindle Drives, Motors, Amplifiers, VFDs, HMIs, and more, most of which can be repaired in only 3-5 days.
MRO can restore your failed ABE7S08S2B1 to remanufactured condition and save you up to 75% compared to buying new. We offer standard repair pricing to ensure you the best value for your repair.
Our certified technicians use rigorous testing procedures to ensure your parts are restored to fully functioning condition. Our team proudly stands behind all repairs by providing a minimum 2-year warranty.
Our technicians have vast experience with most manufacturers and models. In addition to this ABE7S08S2B1 we also repair drives, motors, PLCs and more, so if you don’t see the model you need, please contact us.
If you are interested in getting credit for your faulty ABE7S08S2B1, just let us know, and we can issue you an RMA to send it in as an exchange. Our exchange program provides you with savings and keeps us stocked for the next time you need anything.
Want it shipped today?
Ask about exchanging your faulty ABE7S08S2B1 for credit when ordering from MRO Electric
Schneider Electric products are manufactured in France and are designed for Material handling, packaging, and textile machines usage. They come with a 2-year warranty from MRO Electric. We also carry Accessories from other manufacturers such as Modicon and ABB.
Check out the rest of our Schneider Electric product line. Whether it's using our online instant quote feature, giving us a call at (800) 691-8511, or emailing us at sales@mroelectric.com, we strive for customer satisfaction first. This means lower prices and better service for you. For more products like ABE7S08S2B1, take a look at more from our Accessories line. If your current unit has gone bad, take advantage of our Core Exchange program for the most inexpensive route. You can learn more about this program on our FAQ page here. We offer a repair service on all of our ABE7S08S2B1 products that keep your downtime to a minimum. To stay up to date on manufacturer news, as well as access any of our datasheets, manuals, or other documentation, we suggest you take a look at our blog.
