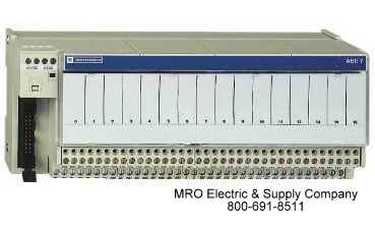

| Part Number | ABE7R08S111 |
| Manufacturer | Schneider Electric |
| Type | Accessories |
| Warranty | 2 Year |
| Current cross distribution chain status | 08 - Commercialised |
| Range of product | Advantys Telefast ABE7 |
| Product or component type | Electromechanical output relay sub-base |
| [Us] rated supply voltage | 24 V DC (PLC end) |
| Number of channels | 8 |
| Number of terminal per channel | 1 |
| Terminal block type | Removable |
| Polarity distribution | Polarity distribution contact common per group of 4 channels |
| Fixing mode | By clips on 35 mm symmetrical DIN rail |
| By screws on solid plate with fixing kit |
| Width | 3.31 in (84 mm) |
| Current per output common | <= 12 A |
| Current per channel | 2 A (preactuator end) |
| Minimum switching current | 1 mA at >= 5 V |
| Drop-out voltage | 2.4 V at 68 °F (20 °C) (PLC end) |
| Threshold tripping voltage | 19.2 V at 104 °F (40 °C) |
| Drop-out current | 0.5 mA at 68 °F (20 °C) |
| Power dissipation per channel in W | <= 0.22 W (PLC end) |
| Contacts type and composition | 1 NO(preactuator end) |
| Maximum switching voltage | 250 V AC 50/60 Hz conforming to IEC 60947-5-1 |
| 30 V DC conforming to IEC 60947-5-1 | |
| Number of channel per common | 4 |
| Electrical durability | 500000 cycles, maximum switching current: 200 mA at 24 V DC-13 10 ms (preactuator end) |
| 500000 cycles, maximum switching current: 400 mA at 230 V AC-15 (preactuator end) | |
| 500000 cycles, maximum switching current: 600 mA at 230 V AC-12 (preactuator end) | |
| 500000 cycles, maximum switching current: 600 mA at 24 V DC-12 (preactuator end) | |
| Electrical reliability | 1e-008 |
| Operating time | <= 10 ms between coil energisation and NO closing |
| <= 6 ms between coil de-energisation and NO opening | |
| Contact bounce time | <= 5 ms 1 NO |
| Operating rate in Hz | 10 Hz no load |
| 0.5 Hz at Ie | |
| Mechanical durability | 20000000 cycles |
| [Uimp] rated impulse withstand voltage | 2.5 kV conforming to IEC 60947-1 |
| [Ui] rated insulation voltage | 2000 V |
| Installation category | II conforming to IEC 60664-1 |
MRO Electric repairs CNCs, PLCs, Servo/Spindle Drives, Motors, Amplifiers, VFDs, HMIs, and more, most of which can be repaired in only 3-5 days.
MRO can restore your failed ABE7R08S111 to remanufactured condition and save you up to 75% compared to buying new. We offer standard repair pricing to ensure you the best value for your repair.
Our certified technicians use rigorous testing procedures to ensure your parts are restored to fully functioning condition. Our team proudly stands behind all repairs by providing a minimum 2-year warranty.
Our technicians have vast experience with most manufacturers and models. In addition to this ABE7R08S111 we also repair drives, motors, PLCs and more, so if you don’t see the model you need, please contact us.
If you are interested in getting credit for your faulty ABE7R08S111, just let us know, and we can issue you an RMA to send it in as an exchange. Our exchange program provides you with savings and keeps us stocked for the next time you need anything.
Want it shipped today?
Ask about exchanging your faulty ABE7R08S111 for credit when ordering from MRO Electric
Schneider Electric products are manufactured in France and are designed for Material handling, packaging, and textile machines usage. They come with a 2-year warranty from MRO Electric. We also carry Accessories from other manufacturers such as Modicon and ABB.
Check out the rest of our Schneider Electric product line. Whether it's using our online instant quote feature, giving us a call at (800) 691-8511, or emailing us at sales@mroelectric.com, we strive for customer satisfaction first. This means lower prices and better service for you. For more products like ABE7R08S111, take a look at more from our Accessories line. If your current unit has gone bad, take advantage of our Core Exchange program for the most inexpensive route. You can learn more about this program on our FAQ page here. We offer a repair service on all of our ABE7R08S111 products that keep your downtime to a minimum. To stay up to date on manufacturer news, as well as access any of our datasheets, manuals, or other documentation, we suggest you take a look at our blog.
