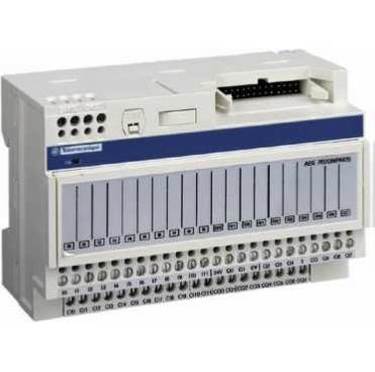

| Part Number | ABE7B20MPN20 |
| Manufacturer | Schneider Electric |
| Type | Accessories |
| Warranty | 2 Year |
| Quantity per set | Set of 5 |
| Range of product | Advantys Telefast ABE7 |
| Product or component type | Passive discrete I/O sub-base |
| [Us] rated supply voltage | 24 V DC (sensor/controller side) |
| 24 V DC (controller side) | |
| Number of channels | 20 |
| Number of terminal per channel | 2 |
| Connections - terminals | Screw type terminals, clamping capacity: 2 x 0.2...2 x 2.5 mm² AWG 28...16 solid |
| Screw type terminals, clamping capacity: 2 x 0.09...2 x 0.75 mm² AWG 28...20 flexible with cable end | |
| Screw type terminals, clamping capacity: 1 x 0.14...1 x 2.5 mm² AWG 26...14 flexible without cable end |
| Screw type terminals, clamping capacity: 1 x 0.14...1 x 2.5 mm² AWG 26...12 solid | |
| Screw type terminals, clamping capacity: 1 x 0.09...1 x 1.5 mm² AWG 28...16 flexible with cable end | |
| Connector destination | Twido programmable controller |
| Supply voltage limits | 20.4...26.4 V DC (sensor/controller side) conforming to IEC 61131-2 |
| 19...30 V DC (controller side) conforming to IEC 61131-2 | |
| Discrete input number | 12 |
| Discrete input logic | Sink |
| Discrete output number | 8 |
| Discrete output voltage | 24 V |
| Discrete output voltage type | DC |
| Product compatibility | TWDLMDA20DTK |
| TWDLMDA40DTK | |
| Status LED | 1 LED for power ON |
| Polarity distribution | 1 common/8 channels for output |
| 1 common/12 channels for input | |
| Short circuit protection | 2 A internal fuse, 5 x 20 mm, fast blow (controller side) |
| Connector type | HE-10 |
| Pin number | 26 pins |
| Fixing mode | By screws |
| By clips on 35 mm symmetrical DIN rail conforming to IEC 60715 | |
| Supply current | <= 2 A |
| Switched current | 300 mA for output circuit |
| 15 mA for input circuit | |
| Current per output common | 2 A |
| Voltage drop on power supply fuse | 0.3 V |
| [Ui] rated insulation voltage | 2000 V between terminals/mounting rails |
| Overvoltage category | II conforming to IEC 60664-1 |
MRO Electric repairs CNCs, PLCs, Servo/Spindle Drives, Motors, Amplifiers, VFDs, HMIs, and more, most of which can be repaired in only 3-5 days.
MRO can restore your failed ABE7B20MPN20 to remanufactured condition and save you up to 75% compared to buying new. We offer standard repair pricing to ensure you the best value for your repair.
Our certified technicians use rigorous testing procedures to ensure your parts are restored to fully functioning condition. Our team proudly stands behind all repairs by providing a minimum 2-year warranty.
Our technicians have vast experience with most manufacturers and models. In addition to this ABE7B20MPN20 we also repair drives, motors, PLCs and more, so if you don’t see the model you need, please contact us.
If you are interested in getting credit for your faulty ABE7B20MPN20, just let us know, and we can issue you an RMA to send it in as an exchange. Our exchange program provides you with savings and keeps us stocked for the next time you need anything.
Want it shipped today?
Ask about exchanging your faulty ABE7B20MPN20 for credit when ordering from MRO Electric
Schneider Electric products are manufactured in France and are designed for Material handling, packaging, and textile machines usage. They come with a 2-year warranty from MRO Electric. We also carry Accessories from other manufacturers such as Modicon and ABB.
Check out the rest of our Schneider Electric product line. Whether it's using our online instant quote feature, giving us a call at (800) 691-8511, or emailing us at sales@mroelectric.com, we strive for customer satisfaction first. This means lower prices and better service for you. For more products like ABE7B20MPN20, take a look at more from our Accessories line. If your current unit has gone bad, take advantage of our Core Exchange program for the most inexpensive route. You can learn more about this program on our FAQ page here. We offer a repair service on all of our ABE7B20MPN20 products that keep your downtime to a minimum. To stay up to date on manufacturer news, as well as access any of our datasheets, manuals, or other documentation, we suggest you take a look at our blog.
