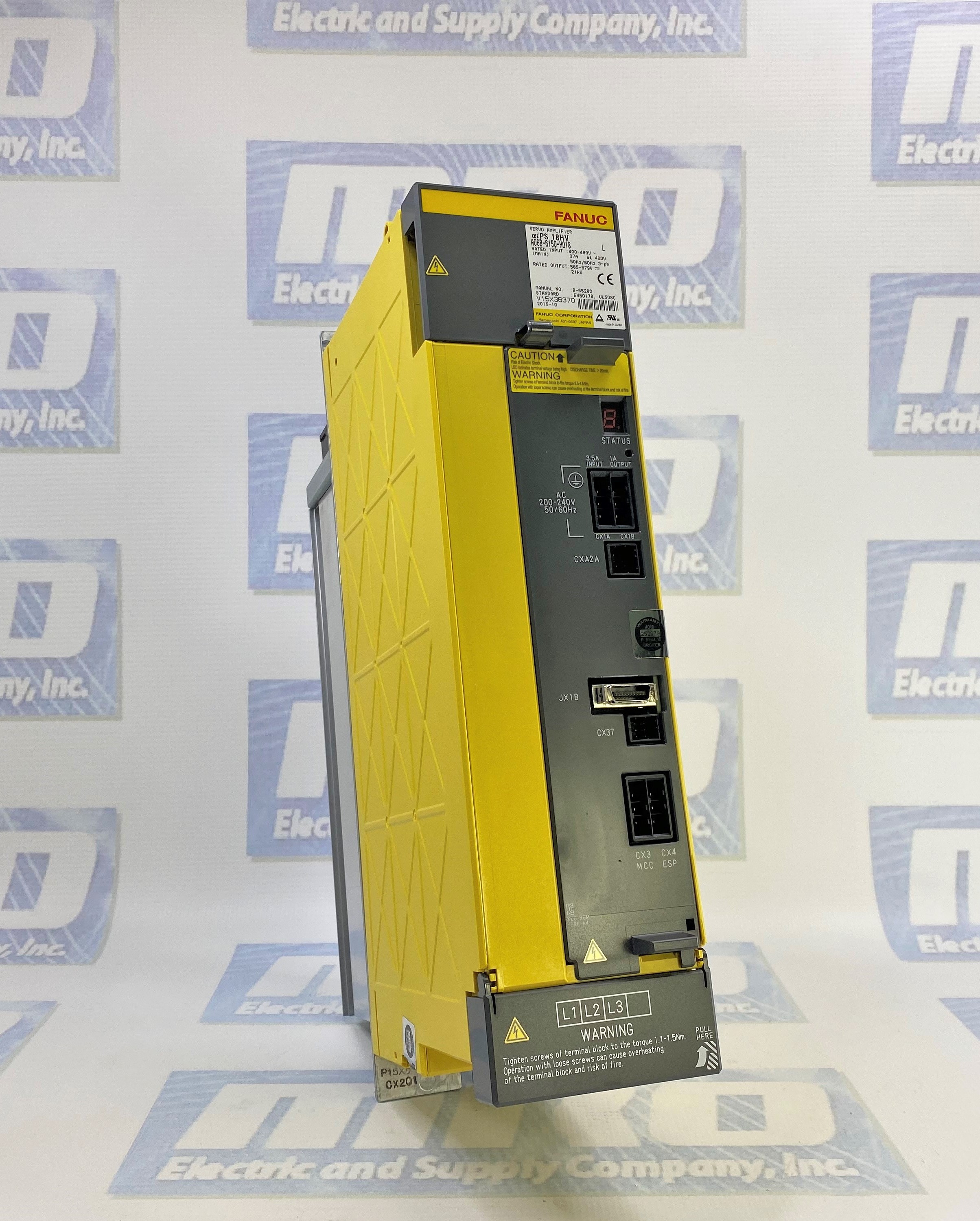

FANUC A06B-6150-H018

Fanuc A06B6150H018 Overview

The A06B6150H018 is a sophisticated piece of equipment, and its start-up procedure is crucial for ensuring proper functionality and safety. The process involves several steps, each requiring careful attention to detail.

Pre-Start-Up Checks: Before activating the circuit breaker, verify that the power supply voltage is correctly connected as outlined in Section 3.2 of the manual. Ensure that all components, including the CNC, servo motors, servo amplifiers, and other units, match your order and are properly connected.

Initial Settings for PSM, SVM, and SPM: Some Power Supply Modules (PSM), Servo Modules (SVM), and Spindle Modules (SPM) may need specific settings before usage. Refer to Section 3.3 for detailed instructions on these settings.

Powering Up and Setting Parameters: Once you have confirmed the initial settings, turn on the power and set the initial parameters on the CNC. For setting servo parameters, consult the "FANUC AC SERVO MOTOR α series Parameter Manual (B-65150E)." For spindle parameters, refer to the "FANUC AD SPINDLE MOTOR α series Parameter Manual (B-65160E)."

Start-Up Adjustment and Troubleshooting: Chapter 4 provides comprehensive guidance on start-up adjustments and troubleshooting. It covers the usage of optional wiring boards for PSM, SVM, and SPM adjustment, and provides information on spindle sensor adjustment values.

Connecting the Power:

• Voltage and Capacity Checks: Before connecting the power, measure the AC power voltage. The manual provides detailed tables (3.2.1) showing actions for different voltage levels for both 200-V and 400-V input types.
• Protective Grounding: Section 3.2.2 emphasizes the importance of correctly connecting the protective ground line, referring to Chapter 5 of the "FANUC SERVO AMPLIFIER α series Descriptions" (B-65162E).
• Ground Fault Interrupter: Section 3.2.3 advises selecting a ground fault interrupter that matches the leakage current, again referring to Chapter 5 of B-65162E.

Setting the Printed-Circuit Board: Before supplying power, ensure the printed-circuit board is set correctly, especially the DIP switch settings for CE-marked and non-CE-marked products, as outlined in Section 3.3.1.

Initializing Servo Parameters: Follow the instructions in the FANUC AC SERVO MOTOR α series Parameter Manual (B-65150E) for servo amplifiers and the FANUC AC SPINDLE MOTOR α series Parameter Manual (B-65160E) for spindle amplifiers.

Troubleshooting: The manual provides a detailed table (4.1.4) for troubleshooting if the PIL LED (power ON indicator) is off. This table includes methods for checking issues related to AC power supply, blown fuses, incorrect wiring, and faulty power supply circuits on the printed circuit board.

FAQ

What should I check before turning on the circuit breaker? A: Ensure the power supply voltage is connected correctly as per Section 3.2 of the manual.

Are there any initial settings required for the Power Supply Modules (PSM), Servo Modules (SVM), or Spindle Modules (SPM)? A: Yes, some types require settings before use.

How do I set initial parameters on the CNC? A: After powering up, set the initial parameters on the CNC. For servo parameters, use the "FANUC AC SERVO MOTOR α series Parameter Manual (B-65150E)," and for spindle parameters, use the "FANUC AD SPINDLE MOTOR α series Parameter Manual (B-65160E)."

Where can I find information on start-up adjustment and troubleshooting? A: Chapter 4 of the manual provides detailed instructions for start-up adjustment and troubleshooting.

Each of these steps is critical to ensure that the A06B6150H018 operates safely and efficiently. Users must follow the guidelines meticulously to avoid any operational hazards and to maintain the longevity of the device.

FANUC products are manufactured in Japan and are designed for Commodity production, advanced machining, and CNC milling usage. They come with a 2-year warranty from MRO Electric. We also carry Servo Amplifiers from other manufacturers such as Siemens and Control Techniques.
