FANUC A06B-6111-H022#H550

Fanuc A06B-6111-H022#H550

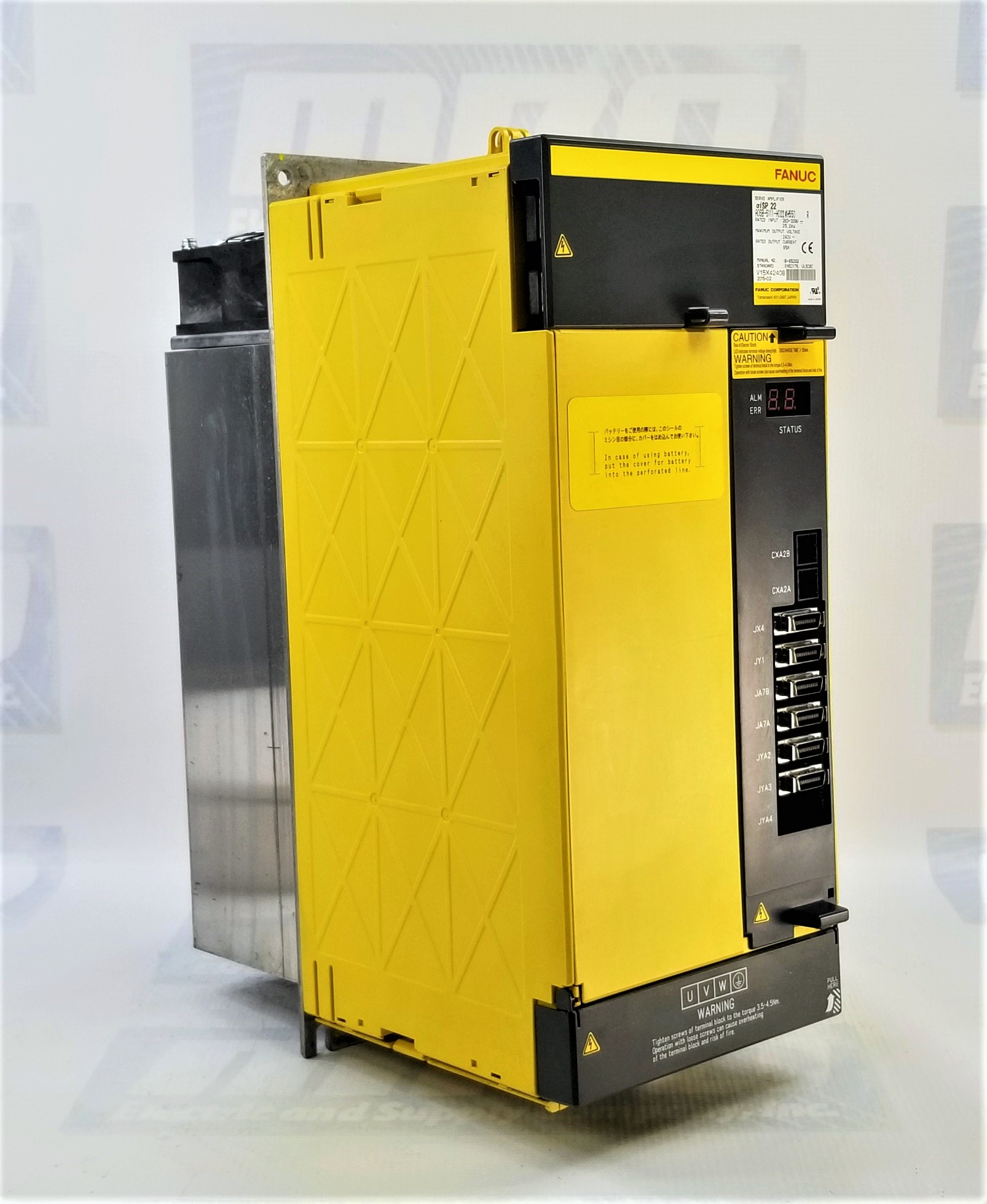

The Fanuc A06B-6111-H022#H550 is a high-performance spindle module from the ALPHA I series manufactured by Fanuc, a leading global provider of industrial automation solutions. As a part of the ALPHA I family, this spindle module represents advanced technology, precision engineering, and robust construction, making it an ideal choice for demanding industrial applications.

Spindle Module Description:

The A06B-6111-H022#H550 is specifically designed as a Spindle Module with the model name SPM-22I. This module plays a crucial role in controlling and powering the spindle motors used in various machining processes, such as milling, drilling, and cutting in CNC (Computer Numerical Control) machines.

High Power and Efficiency:

This spindle module is engineered to handle high power demands efficiently. It operates with a rated input voltage of 283-339 V and can deliver a maximum output voltage of 240 V. The module's rated output current is an impressive 95 A, allowing it to deliver substantial power to the spindle motor. With a rated input of 25.2 kW, it can efficiently drive high-speed spindles, ensuring smooth and precise machining operations.

Precision and Reliability:

Fanuc is renowned for its focus on precision and reliability, and the ALPHA I series exemplifies this commitment. The A06B-6111-H022#H550 spindle module is built with high-quality components and undergoes rigorous testing to ensure its performance in demanding industrial environments. This reliability is essential in critical manufacturing processes that require consistent and precise control over spindle operations.

Advanced Technology and Features:

As part of the ALPHA I series, the A06B-6111-H022#H550 spindle module incorporates advanced technology to enhance performance and usability. It may include features such as dynamic spindle control, which allows for fine-tuning spindle speed and acceleration during machining operations. Moreover, intelligent thermal management features help monitor and regulate the module's temperature to prevent overheating and ensure optimal performance.

Application Versatility:

The versatility of the A06B-6111-H022#H550 spindle module allows it to be used in various industries, including automotive, aerospace, and electronics manufacturing. CNC machines equipped with this spindle module can achieve high precision and productivity, leading to superior quality components and reduced production cycle times.

Integration with Fanuc CNC Systems:

Fanuc takes a comprehensive approach to industrial automation, offering complete CNC solutions that seamlessly integrate with their spindle modules. The A06B-6111-H022#H550 can be easily integrated into Fanuc's CNC systems, allowing for smooth communication and centralized control. This integration enhances the overall performance and reliability of the CNC machine, creating a unified and efficient manufacturing process.

Safety and Protection:

Safety is a top priority in industrial automation, and the A06B-6111-H022#H550 spindle module incorporates various protection mechanisms to safeguard both the equipment and personnel. These safety features may include overcurrent protection, short-circuit protection, and thermal overload protection, ensuring safe operation and preventing damage to the spindle motor and associated components.

FAQ for FANUC A06B-6111-H022#H550 Spindle Amplifier

What is the FANUC A06B-6111-H022#H550 Spindle Amplifier?

The FANUC A06B-6111-H022#H550 is a spindle amplifier belonging to the Alpha-i series. It is designed for use in CNC machinery and automation systems to control spindle motors, offering precise control and high efficiency. The model, designated as aiSP 22, ensures that the connected spindle motor operates smoothly under varying load conditions.

What is the power rating of the FANUC A06B-6111-H022#H550?

This spindle amplifier has a rated power output of 25.2 kW, making it suitable for various medium—to large-spindle motor applications. Its power capacity allows it to handle heavy-duty operations while maintaining performance and reliability.

What is the input voltage required for this spindle amplifier?

The rated input voltage for the FANUC A06B-6111-H022#H550 is between 283 V and 339 V. This ensures compatibility with standard industrial power supplies commonly found in manufacturing and CNC environments.

What is the maximum output voltage and current for this amplifier?

The FANUC A06B-6111-H022# H550's maximum output voltage is 240 V, and its maximum output current is 95 A. This high current output ensures that the amplifier can effectively control spindle motors under demanding operational conditions.

What is the application of the FANUC A06B-6111-H022#H550?

This spindle amplifier is primarily used to control the speed and torque of spindle motors in CNC machining centers, lathes, and milling machines. It is an integral component in precision manufacturing processes, allowing for smooth and accurate spindle control.

Does the FANUC A06B-6111-H022#H550 come with a manual?

Yes, the manual for this spindle amplifier is listed under the number B-65322. It provides detailed installation, operation, and troubleshooting instructions, ensuring users can effectively integrate and maintain the amplifier in their system.

Does this model feature any advanced control technology?

As part of the Alpha-i series, the A06B-6111-H022#H550 has FANUC’s advanced servo control technology. This technology enhances precision, better motor control, and energy efficiency, ensuring optimal performance in CNC machinery applications.

What kind of warranty does this spindle amplifier have?

When purchased from MRO Electric and Supply, the FANUC A06B-6111-H022#H550 comes with a 2-year warranty. This warranty ensures peace of mind and covers defects or malfunctions under normal usage conditions.

Is free shipping available for this product?

When ordered from MRO Electric and Supply, the FANUC A06B-6111-H022 # H550 receives free shipping, which adds value to the purchase and provides cost-effective delivery.

Can this amplifier be used with different spindle motor sizes?

The FANUC A06B-6111-H022#H550 can be used with various spindle motor sizes, provided the motor's power and current ratings align with the amplifier’s capabilities. It is typically matched with FANUC spindle motors to ensure seamless integration.

FANUC products are manufactured in Japan and are designed for Commodity production, advanced machining, and CNC milling usage. They come with a 2-year warranty from MRO Electric. We also carry Spindle Amplifiers from other manufacturers such as Siemens and Control Techniques.
