FANUC A06B-6110-H015

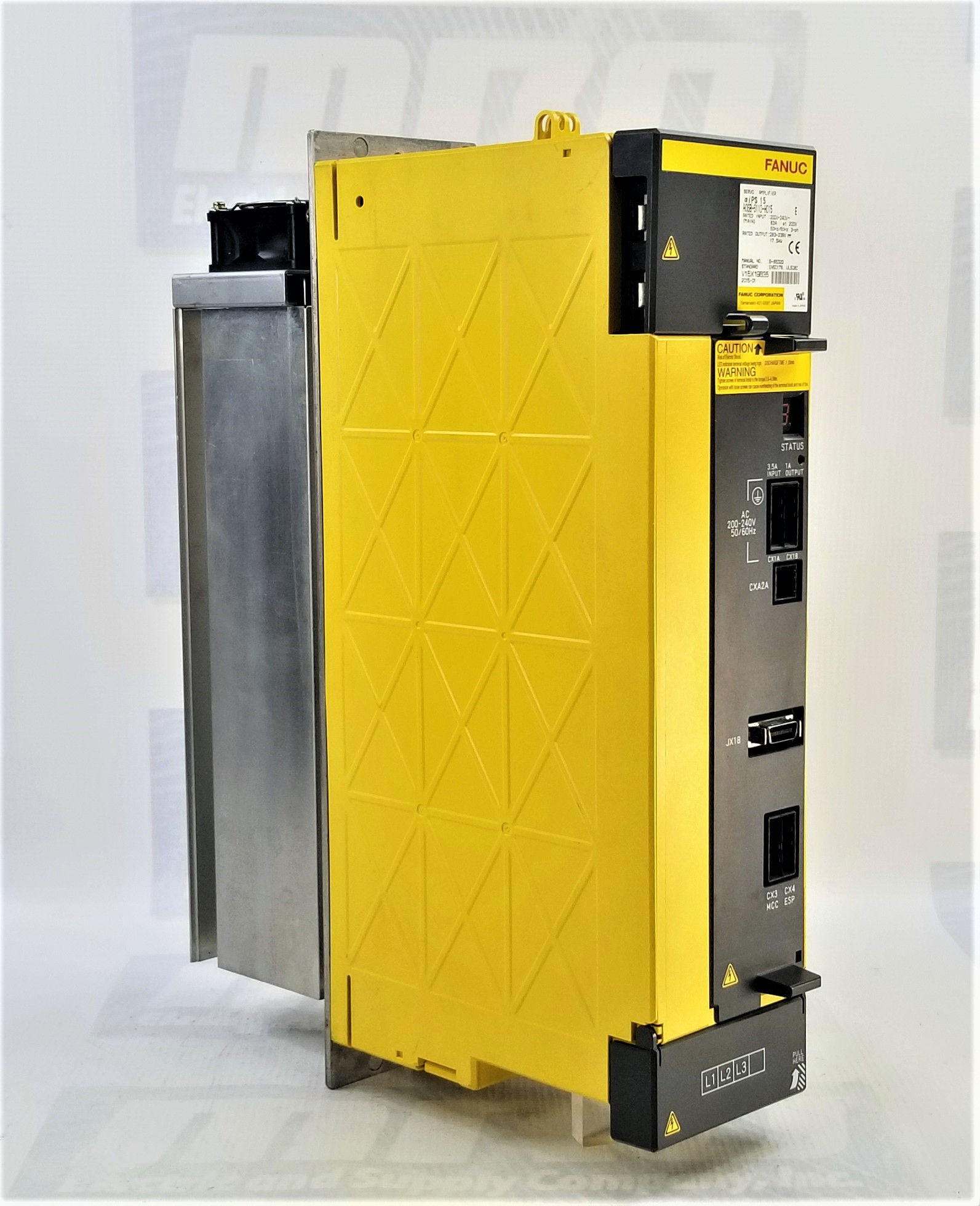

A06B-6110-H015 Power Supply Module

The A06B-6110-H015 is a power supply module from FANUC, a leading company in the CNC and robotics industry. FANUC's power supply modules, including this particular model, are integral components in driving and controlling servo and spindle motors in various applications.

FANUC A06B-6110-H015 Power Supply Module Overview:

Product Specs:

1. Module Type: Power Supply Module (PSM).
2. Input Voltage: Depending on the design and where it is used, but typically around 200-230V.
3. Output Voltage: Typically provides DC voltage suitable for FANUC servo and spindle systems.
4. Protection: Usually equipped with protection features against overvoltage, overcurrent, and internal overheating.
5. LED Indicators: For showing status, error, and other diagnostic information.
6. Cooling: Often designed with internal cooling fans or requires external cooling systems, depending on the model and application.
7. Compatibility: Works seamlessly with FANUC servo and spindle amplifiers.

Guide and Installation:

1. Placement: Identify a suitable location in your control cabinet or machine, ensuring there's adequate space for ventilation and access for maintenance.
2. Mounting: Mount the module securely, typically on a DIN rail or directly on a mounting plate inside a control cabinet.
3. Wiring:

• Connect the power input following the appropriate specifications (often around 200-230V).
• Wire the output to the respective FANUC amplifiers or systems.
• Ensure all grounding connections are secure.

1. Configuration: While many of FANUC's components are plug-and-play, always ensure system parameters and configurations match the requirements of your specific machine application.
2. Safety Precautions: Always turn off the power and ensure no voltage is present when installing or servicing the module. Proper grounding is essential to ensure both safety and proper module operation.
3. Testing: After installation, turn on the system and observe the LED indicators to ensure proper operation and no fault conditions.

Overview:

The FANUC A06B-6110-H015 is a Power Supply Module designed to provide the necessary power and protections to FANUC servo and spindle systems. With its reliable performance, built-in safety features, and compatibility with FANUC's range of CNC components, it's a crucial component for many industrial applications. Whether integrated into CNC machinery, robotics, or other automated systems, this module ensures stable and efficient operation.

Maintenance and Troubleshooting:

Maintenance of the A06B-6110-H015 is generally minimal, thanks to FANUC's robust engineering standards. However, regular checks for dust accumulation, potential wiring issues, and the status of the internal cooling fans (if applicable) are advised to ensure prolonged and optimal performance. If the module's LED indicators show a fault or if there's an unexpected shutdown, consulting the module's user manual or reaching out to FANUC technical support can help diagnose and address the issue.

Benefits:

1. Reliability: With FANUC's reputation in the industry, the A06B-6110-H015 is built to last, ensuring that machinery operates without interruptions.
2. Energy Efficiency: The module is designed to convert power with minimal losses, reducing operational costs and energy wastage.
3. Versatility: Its compatibility with a wide range of FANUC systems makes it a go-to choice for diverse industrial setups.
4. Safety Features: With built-in protective measures, it safeguards both the machinery it powers and the module itself against potential electrical hazards.

Frequently Asked Questions (FAQ) for the FANUC A06B-6110-H015 Power Supply Module

Q: What is the A06B-6110-H015 Power Supply Module?

A: The A06B-6110-H015 is a power supply module manufactured by FANUC, designed for use in industrial applications to provide power to various systems and components.

Q: What are the key specifications of the A06B-6110-H015 Power Supply Module?

A: The A06B-6110-H015 operates at a rated input voltage of 200-240 VAC, with a current rating of 63 A at 200 V. It supports frequencies of 50/60 Hz and is designed for use in three-phase power systems. The rated output voltage ranges from 283 to 339 V, with a power rating of 17.5 kW.

Q: What is the range and category of the A06B-6110-H015 Power Supply Module?

A: The A06B-6110-H015 belongs to the Alpha I range of FANUC products and falls under the MDL PSM-15I category, denoting its specific model and type within the FANUC lineup.

Q: Can the A06B-6110-H015 Power Supply Module operate in different phases?

A: The A06B-6110-H015 is designed for three-phase power systems, providing reliable and stable power distribution for industrial machinery and equipment.

Q: Is the A06B-6110-H015 suitable for high-power applications?

A: Yes, with a power rating of 17.5 kW, the A06B-6110-H015 is well-suited for high-power applications where consistent and efficient power supply is essential.

Q: What industries or applications is the A06B-6110-H015 Power Supply Module commonly used in?

A: The A06B-6110-H015 is commonly used to power critical machinery and equipment in various industrial sectors, including manufacturing, automotive, aerospace, and robotics.

Q: Are there any safety features or certifications associated with the A06B-6110-H015 Power Supply Module?

A: While specific safety features may vary, FANUC products are typically designed and manufactured to meet industry standards and regulations for electrical safety and reliability.

Conclusion:

The FANUC A06B-6110-H015 Power Supply Module stands as a testament to FANUC's commitment to quality and innovation. As industries continue to evolve, the need for reliable and efficient power supply modules like this will remain constant. For businesses looking to enhance their operational efficiency and reduce downtimes, this module proves to be an invaluable asset.
